TDF8546 Series

Catalog

TDF8546ASD/N1Z/ TUBE ROHS COMPLIANT: YES

Part	Package / Case	Features	Type	Package Name	Output Type	Load Impedance	Maximum Output Power (per Channel)	Channels	Mounting Type	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Package Width	Package Features	Package Length
NXP USA Inc. TDF8546ASD/N1ZU	27-SIP Formed Leads	Depop Short-Circuit and Thermal Protection	Class AB	27-RDBS	4-Channel (Quad)	4 Ohm	25 W	4	Through Hole	18 V	6 V
NXP USA Inc. TDF8546AJV/N1ZU	27-SIP Formed Leads		Class AB	DBS27P	4-Channel (Quad)	2 Ohm 4 Ohm	40 W 45 W 64 W	4	Through Hole	18 V	6 V
NXP USA Inc. TDF8546JV/N2ZU	27-SIP Formed Leads		Class AB	DBS27P	4-Channel (Quad)	2 Ohm 4 Ohm	40 W 45 W 64 W	4	Through Hole	18 V	6 V
NXP USA Inc. TDF8546TH/N2ZJ		Depop Short-Circuit and Thermal Protection	Class AB	36-BSSOP 36-HSOP	4-Channel (Quad)	4 Ohm	25 W	4	Surface Mount	18 V	6 V	11 mm	Exposed Pad	0.433 in

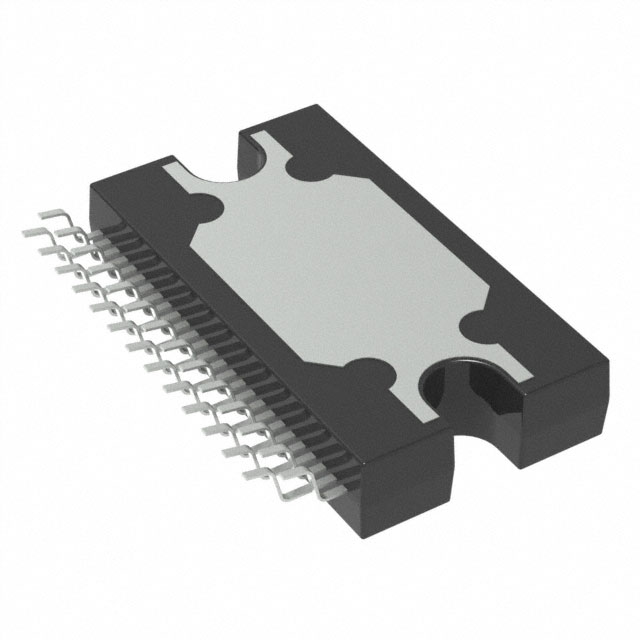

NXP USA Inc. TDF8546AJS/N1ZS	27-PowerSMD Module	Depop Short-Circuit and Thermal Protection	Class AB	27-DBSMSP	4-Channel (Quad)	4 Ohm	25 W	4	Surface Mount	18 V	6 V
NXP USA Inc. TDF8546JS/N2ZS	27-PowerSMD Module	Depop Short-Circuit and Thermal Protection	Class AB	27-DBSMSP	4-Channel (Quad)	4 Ohm	25 W	4	Surface Mount	18 V	6 V
NXP USA Inc. TDF8546JS/N2,512	27-PowerSMD Module	Depop Short-Circuit and Thermal Protection	Class AB	27-DBSMSP	4-Channel (Quad)	4 Ohm	25 W	4	Surface Mount	18 V	6 V
NXP USA Inc. TDF8546ASU/N1ZU
NXP USA Inc. TDF8546ATH/N1ZJ		Depop Short-Circuit and Thermal Protection	Class AB	36-BSSOP 36-HSOP	4-Channel (Quad)	4 Ohm	25 W	4	Surface Mount	18 V	6 V	11 mm	Exposed Pad	0.433 in
