Power Diode Discretes-Rectifier GBFP
Description
AI
Diodes in various packages made for main rectification in 1 phase bridge configurations.
Beta
⌘K
Power Diode Discretes-Rectifier GBFP
Power Diode Discretes-Rectifier GBFP
| Part | Operating Temperature (Min) | Operating Temperature (Max) | Voltage - Forward (Vf) (Max) | Technology | Diode Type | Package / Case | Package Name | Voltage - Peak Reverse (Max) | Mounting Type | Current - Reverse Leakage | Current - Average Rectified (Io) |
|---|---|---|---|---|---|---|---|---|---|---|---|

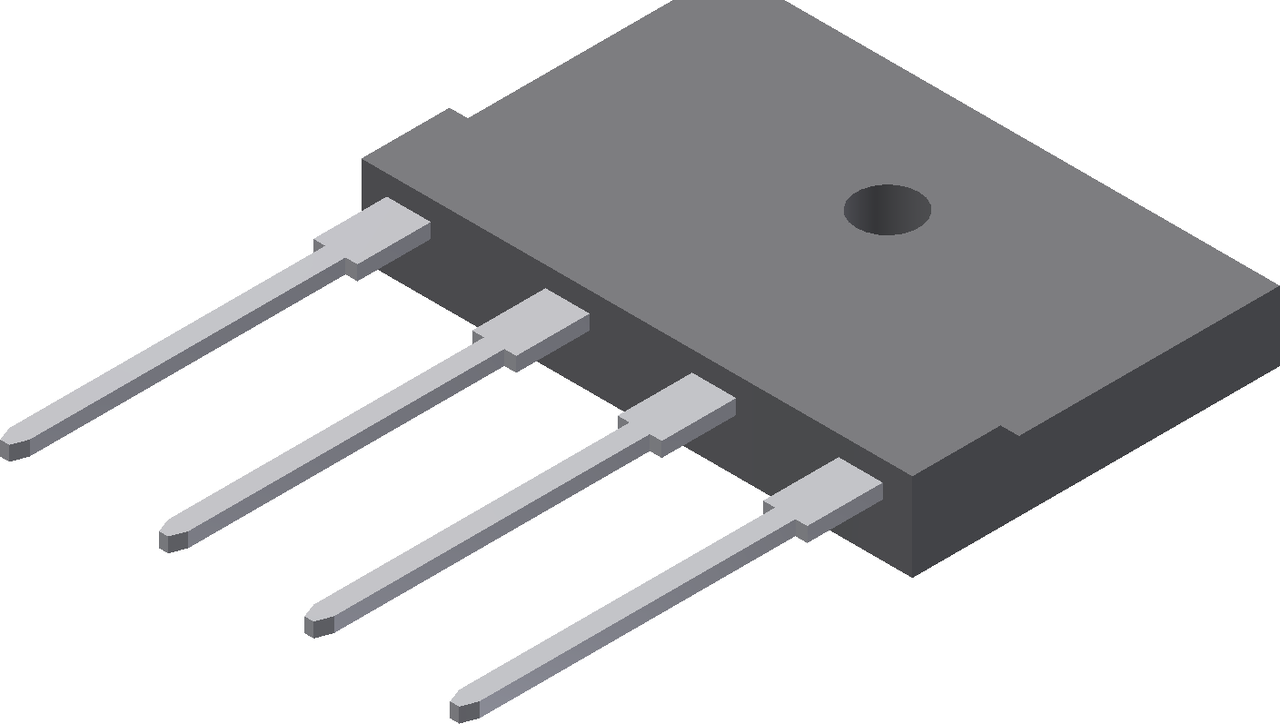

 LITTELFUSE | -40 °C | 150 °C | 1.1 V 1.1 V | Standard | Single Phase | 4-SIP GBO | 4-SIP | 1.6 kV | Through Hole | 50 µA | 25 A |
LITTELFUSE | -40 °C | 150 °C | 1.1 V 1.1 V | Standard | Single Phase | 4-SIP GBO | 4-SIP | 1200 V | Through Hole | 50 µA | 25 A |
