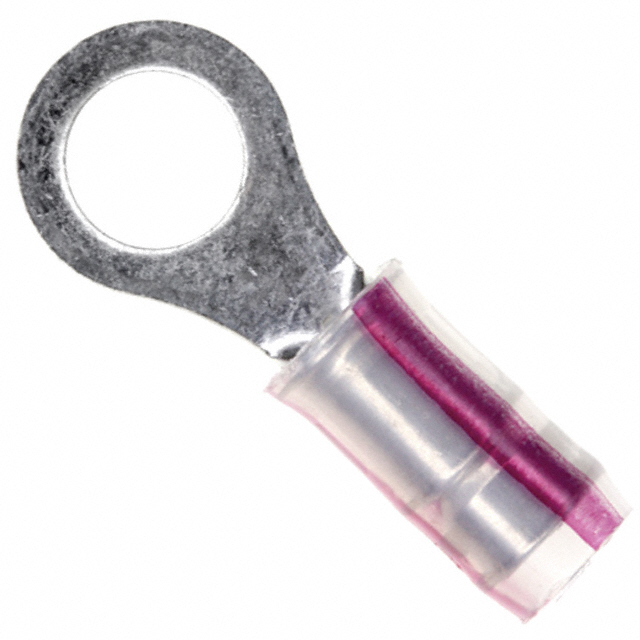

53409 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
PIDG PVF2 22-16COM22-18MIL 10 ROHS COMPLIANT: NO
| Part | Material - Insulation | Insulation Diameter (Min) | Insulation Diameter (Max) | Width - Outer Edges | Color | Contact Finish | Length - Overall | Terminal Type | Termination | Stud/Tab Size | Insulation | Mounting Type | Thickness | Features | Contact Material | Wire Gauge (AWG) (Min) | Wire Gauge (AWG) (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Polyvinylidene Fluoride PVDF | 0.08 in | 0.125 in | 0.312 in | Natural Red Stripe | Tin-Lead | 0.844 in | Circular | Crimp | 10 Stud | Insulated | Free Hanging (In-Line) | 0.031 in | Radiation Resistant Serrated Termination | Copper | 16 AWG | 22 AWG |
