ERD-S1 Series

Manufacturer: Panasonic Electronic Components

Catalog

RES 15K OHM 5% 1/2W AXIAL

Part	Resistance	Operating Temperature (Max)	Operating Temperature (Min)	Size / Dimension Diameter	Size / Dimension Length	Package Name	Tolerance	Number of Terminations	Composition	Power (Watts)	Power (Watts) Options	Package / Case	Temperature Coefficient (Highest)	Temperature Coefficient (Min)	Temperature Coefficient (Max)	Temperature Coefficient (Lowest)

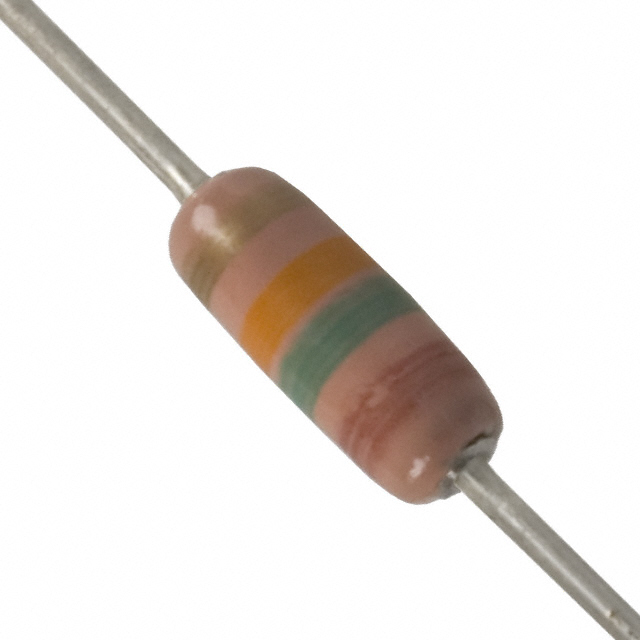

Panasonic Electronic Components ERD-S1TJ153V	15 kOhm	155 °C	-55 °C	0.091 in	0.25 in	Axial	5 %	2	Carbon Film	500 mW	1/2W	Axial	-150 ppm/°C	-150 ppm/°C	-350 ppm/°C	-350 ppm/°C
Panasonic Electronic Components ERD-S1TJ510V	51 Ohm	155 °C	-55 °C	0.091 in	0.25 in	Axial	5 %	2	Carbon Film	500 mW	1/2W	Axial	-150 ppm/°C	-150 ppm/°C	-350 ppm/°C	-350 ppm/°C
Panasonic Electronic Components ERD-S1TJ4R7V	4.7 Ohm	155 °C	-55 °C	0.091 in	0.25 in	Axial	5 %	2	Carbon Film	500 mW	1/2W	Axial	-150 ppm/°C	-150 ppm/°C	-350 ppm/°C	-350 ppm/°C
Panasonic Electronic Components ERD-S1TJ824V	820 kOhm	155 °C	-55 °C	0.091 in	0.25 in	Axial	5 %	2	Carbon Film	500 mW	1/2W	Axial	-150 ppm/°C	-150 ppm/°C	-700 ppm/°C	-700 ppm/°C

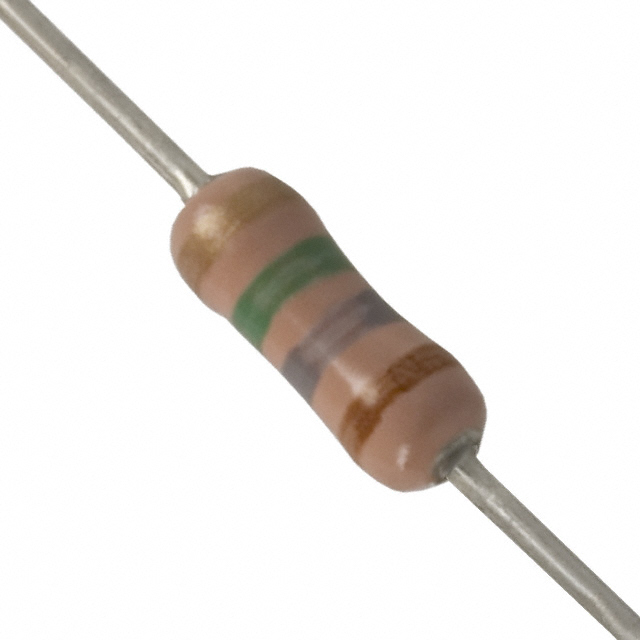

Panasonic Electronic Components ERD-S1TJ185V	1.8 MOhm	155 °C	-55 °C	0.091 in	0.25 in	Axial	5 %	2	Carbon Film	500 mW	1/2W	Axial	-150 ppm/°C			-1000 ppm/°C
Panasonic Electronic Components ERD-S1TJ683V	68 kOhm	155 °C	-55 °C	0.091 in	0.25 in	Axial	5 %	2	Carbon Film	500 mW	1/2W	Axial	-150 ppm/°C			-500 ppm/°C

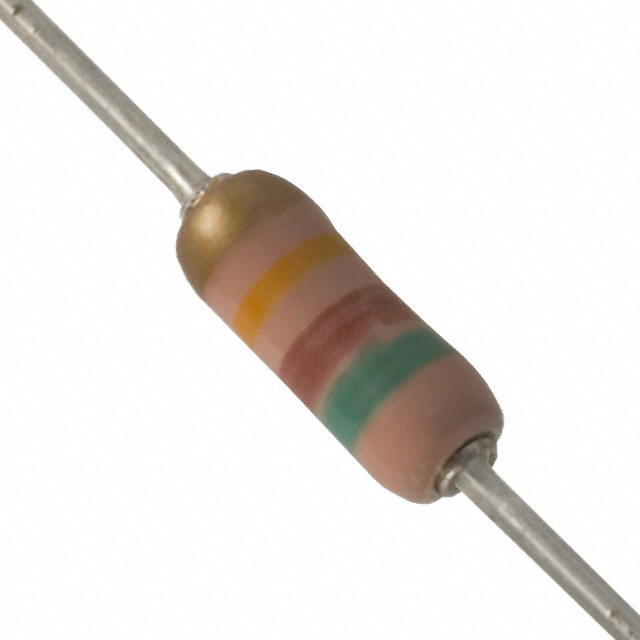

Panasonic Electronic Components ERD-S1TJ513V	51 kOhm	155 °C	-55 °C	0.091 in	0.25 in	Axial	5 %	2	Carbon Film	500 mW	1/2W	Axial	-150 ppm/°C	-150 ppm/°C	-350 ppm/°C	-350 ppm/°C
Panasonic Electronic Components ERD-S1TJ393V	39 kOhm	155 °C	-55 °C	0.091 in	0.25 in	Axial	5 %	2	Carbon Film	500 mW	1/2W	Axial	-150 ppm/°C	-150 ppm/°C	-350 ppm/°C	-350 ppm/°C
Panasonic Electronic Components ERD-S1TJ151V	150 Ohm	155 °C	-55 °C	0.091 in	0.25 in	Axial	5 %	2	Carbon Film	500 mW	1/2W	Axial	-150 ppm/°C	-150 ppm/°C	-350 ppm/°C	-350 ppm/°C
Panasonic Electronic Components ERD-S1TJ751V	750 Ohm	155 °C	-55 °C	0.091 in	0.25 in	Axial	5 %	2	Carbon Film	500 mW	1/2W	Axial	-150 ppm/°C	-150 ppm/°C	-350 ppm/°C	-350 ppm/°C
