2314930 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

BOARD TO BOARD & MEZZANINE CONNECTORS 4P,2MM,B-B,REC,SRHZ, 2.1,0.76AU,TB

Part	Contact Finish Thickness - Mating	Pitch - Mating	Contact Length - Post	Voltage Rating	Contact Finish - Mating	Number of Positions Loaded	Operating Temperature (Max)	Operating Temperature (Min)	Connector Type	Mounting Type	Termination	Insulation Height	Contact Type	Contact Finish - Post	Number of Positions	Style	Current Rating	Fastening Type	Number of Rows	Material Flammability Rating	Insulation Color	Contact Finish Thickness - Post	Contact Shape	Contact Material	Insulation Material

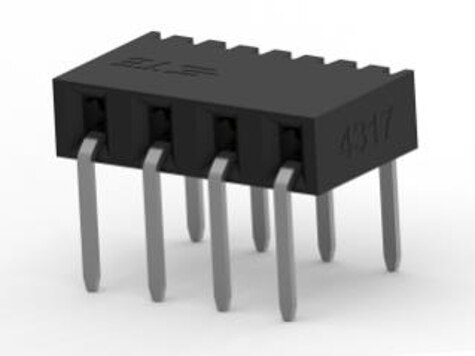

TE Connectivity AMP Connectors 2314930-4	30 µin	0.079 in	0.083 in	125 V	Gold	All	125 °C	-40 °C	Receptacle	Right Angle Through Hole	Solder	0.083 in	Female Socket	Tin	4	Board	2 A	Push-Pull	1	UL94 V-0	Black	12 µin	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)
TE Connectivity AMP Connectors 2314930-8	30 µin	0.079 in	0.083 in	125 V	Gold	All	125 °C	-40 °C	Receptacle	Right Angle Through Hole	Solder	0.08 in	Female Socket	Tin	8	Board	2 A	Push-Pull	1	UL94 V-0	Black	118.1 µin	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)

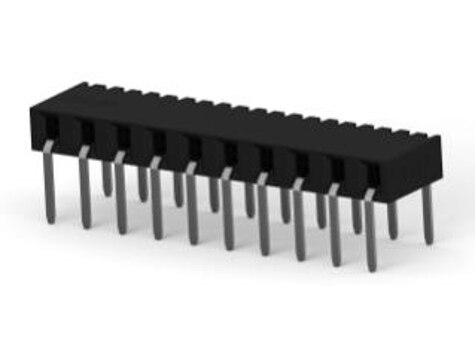

TE Connectivity AMP Connectors 1-2314930-0	30 µin	0.079 in	0.083 in	125 V	Gold	All	125 °C	-40 °C	Receptacle	Right Angle Through Hole	Solder	0.08 in	Female Socket	Tin	10	Board	2 A	Push-Pull	1	UL94 V-0	Black	118.1 µin	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)
TE Connectivity AMP Connectors 2314930-6	30 µin	0.079 in	0.083 in	125 V	Gold	All	125 °C	-40 °C	Receptacle	Right Angle Through Hole	Solder	0.08 in	Female Socket	Tin	6	Board	2 A	Push-Pull	1	UL94 V-0	Black	118.1 µin	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)

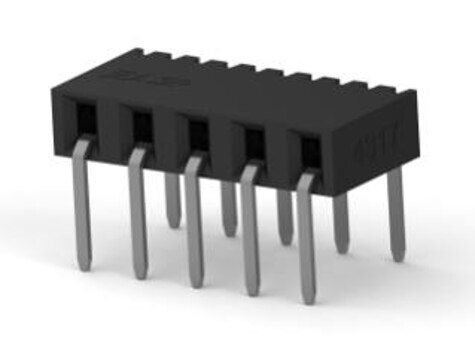

TE Connectivity AMP Connectors 2314930-5	30 µin	0.079 in	0.083 in	125 V	Gold	All	125 °C	-40 °C	Receptacle	Right Angle Through Hole	Solder	0.08 in	Female Socket	Tin	5	Board	2 A	Push-Pull	1	UL94 V-0	Black	118.1 µin	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)
TE Connectivity AMP Connectors 2314930-3	30 µin	0.079 in	0.083 in	125 V	Gold	All	125 °C	-40 °C	Receptacle	Right Angle Through Hole	Solder	0.083 in	Female Socket	Tin	3	Board	2 A	Push-Pull	1	UL94 V-0	Black	12 µin	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)
TE Connectivity AMP Connectors 2314930-2	30 µin	0.079 in	0.083 in	125 V	Gold	All	125 °C	-40 °C	Receptacle	Right Angle Through Hole	Solder	0.083 in	Female Socket	Tin	2	Board	2 A	Push-Pull	1	UL94 V-0	Black	12 µin	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)
