5084616 Series

Catalog

CONN FINE PITCH CONNECTOR RCP 80 POS 0.8MM SOLDER ST TOP ENTRY SMD T/R

Part	Features	Mated Stacking Height Options	Number of Rows	Contact Finish Thickness	Number of Positions	Connector Type	Contact Finish	Pitch	Mounting Type	Height Above Board
TE Connectivity AMP Connectors 5084616-3	Board Guide	13mm 14mm 15mm 16mm	2	8 µin	80	Outer Shroud Contacts Receptacle	Gold	0.031 in	Surface Mount	0.463 in

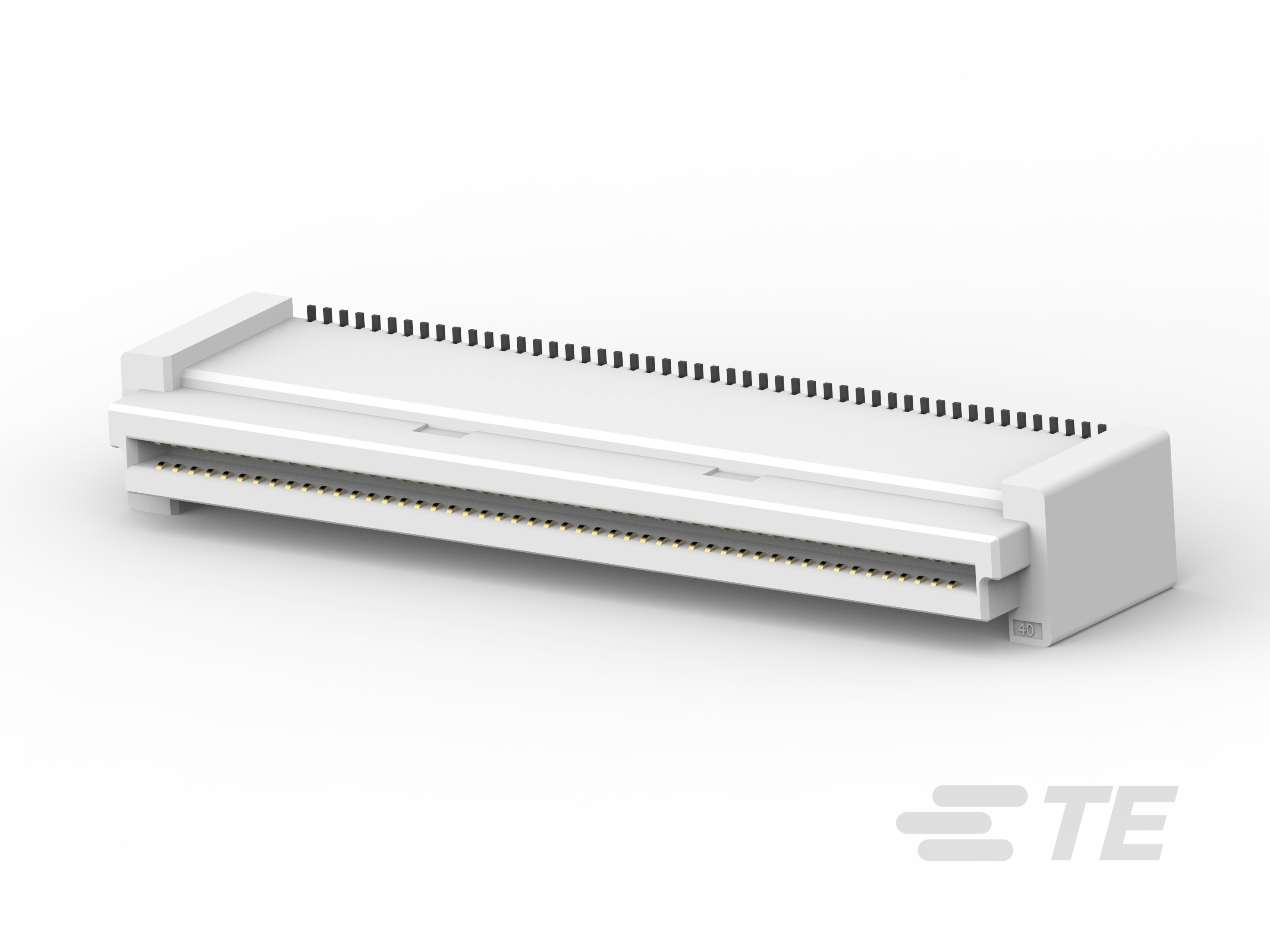

TE Connectivity AMP Connectors 5084616-4	Board Guide	13mm 14mm 15mm 16mm	2	8 µin	100	Outer Shroud Contacts Receptacle	Gold	0.031 in	Surface Mount	0.463 in

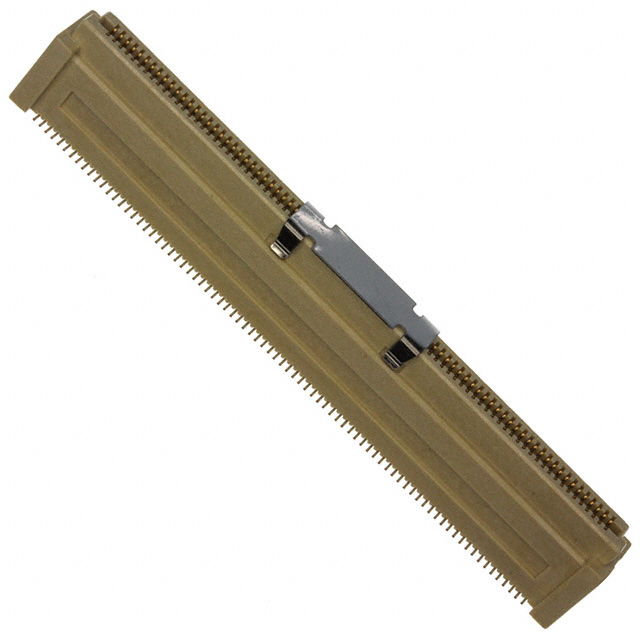

TE Connectivity AMP Connectors 5084616-8	Board Guide	13mm 14mm 15mm 16mm	2	8 µin	160	Outer Shroud Contacts Receptacle	Gold	0.031 in	Surface Mount	0.463 in
