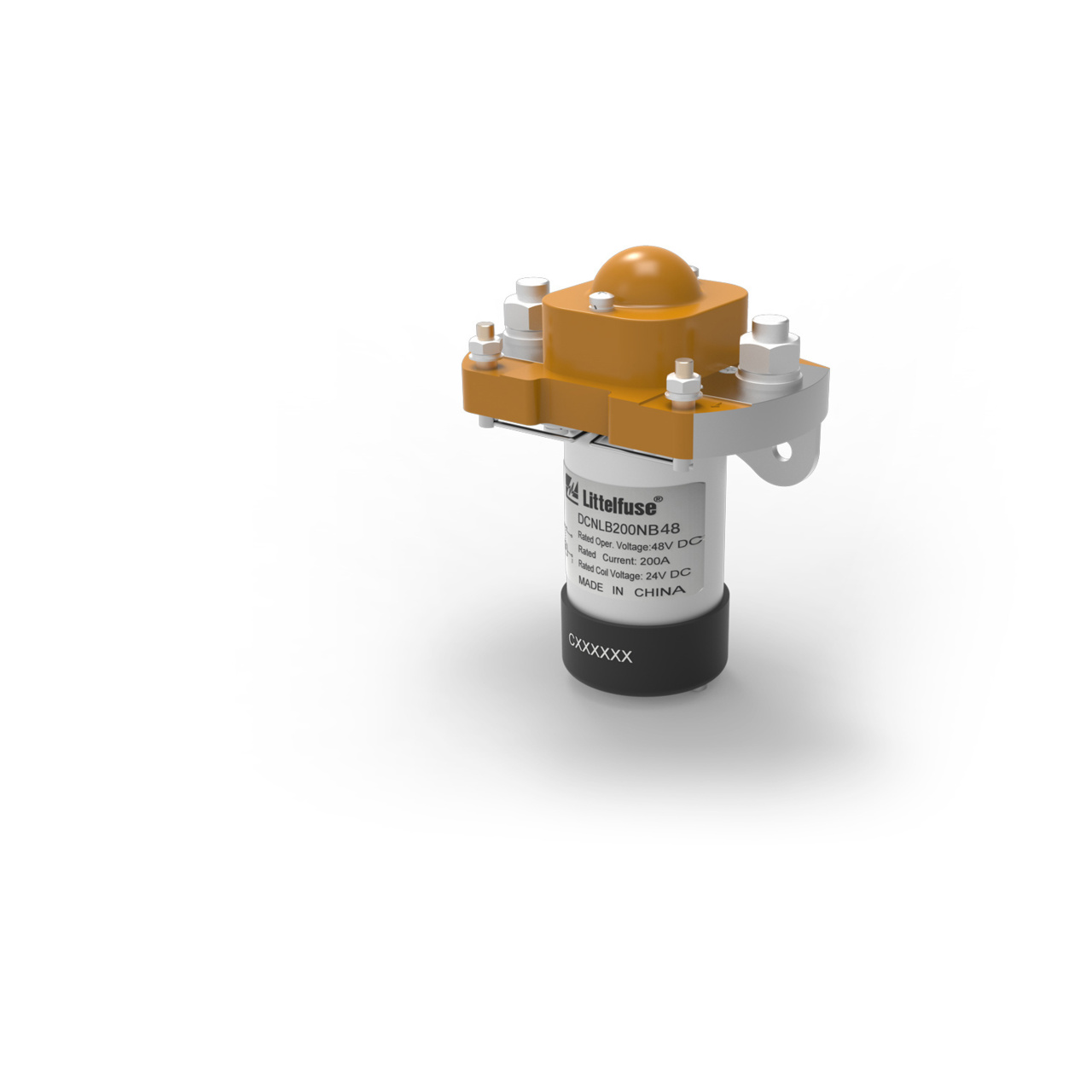

DCNLB 200A 48V NP NC 48V 1Coil Contactor
Description
AI
The DCNLB Series 48V DC contactor relay (DCNLB200NB48) is a normally closed relay with a single-coil design with coil voltage rating of 48V.
Beta
⌘K
DCNLB 200A 48V NP NC 48V 1Coil Contactor
DCNLB 200A 48V NP NC 48V 1Coil Contactor
| Part | Operating Temperature (Min) | Operating Temperature (Max) | Termination Style | Must Release Voltage | Switching Voltage DC (Max) | Contact Rating (Current) | Coil Voltage | Must Operate Voltage | Mounting Type | Form B Count | Contact Form |
|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | -40 °C | 85 °C | Stud | 4 VDC | 60 VDC | 200 A | 48 V | 30 VDC | Chassis Mount | 1 | SPST-NC |
