GBPC3506 Series

Catalog

BRIDGE RECT 1PHASE 600V 35A GBPC

Part	Voltage - Forward (Vf) (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Package / Case	Current - Reverse Leakage	Diode Type	Package Name	Technology	Voltage - Peak Reverse (Max)	Current - Average Rectified (Io)

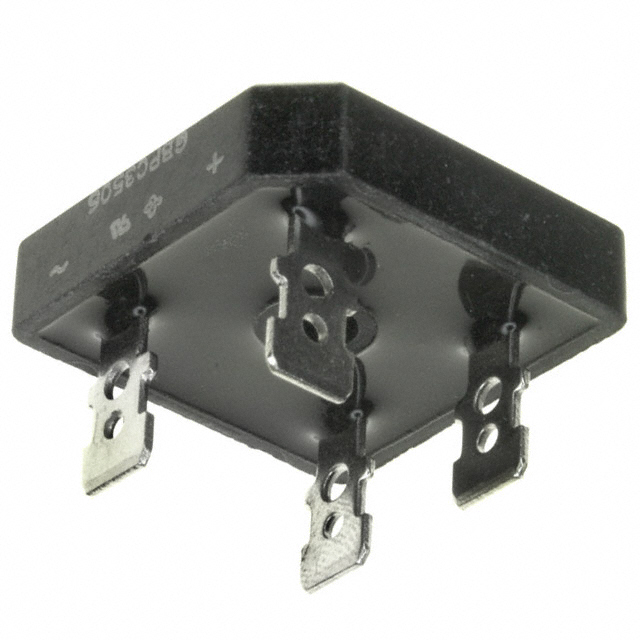

Vishay General Semiconductor - Diodes Division GBPC3506-E4/51	1.1 V 1.1 V	-55 °C	150 °C	QC Terminal	4-Square GBPC	5 µA	Single Phase	GBPC	Standard	600 V	35 A
Vishay General Semiconductor - Diodes Division VS-GBPC3506W		-55 °C	150 °C	Through Hole	4-Square GBPC-W	2 mA	Single Phase	GBPC-W	Standard	600 V	35 A
Vishay General Semiconductor - Diodes Division VS-GBPC3506A		-55 °C	150 °C	QC Terminal	4-Square GBPC-A	2 mA	Single Phase	GBPC-A	Standard	600 V	35 A
Vishay General Semiconductor - Diodes Division GBPC3506W-E4/51	1.1 V 1.1 V	-55 °C	150 °C	Through Hole	4-Square GBPC-W	5 µA	Single Phase	GBPC-W	Standard	600 V	35 A
Vishay General Semiconductor - Diodes Division GBPC3506/1	1.1 V 1.1 V			QC Terminal	4-Square GBPC	5 µA	Single Phase	GBPC	Standard	600 V	35 A
Vishay General Semiconductor - Diodes Division GBPC3506W/1	1.1 V 1.1 V			Through Hole	4-Square GBPC-W	5 µA	Single Phase	GBPC-W	Standard	600 V	35 A
