5767056 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

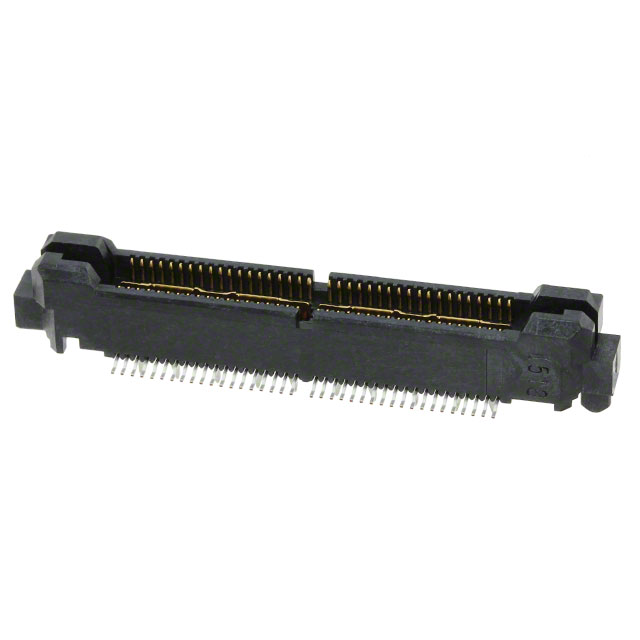

CONN PLUG 76P SMD PALLAD-NICKEL
| Part | Number of Rows | Height Above Board | Contact Finish | Number of Positions | Pitch | Contact Finish Thickness | Features | Mated Stacking Height Options | Connector Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 2 | 0.251 in | Palladium-Nickel | 76 | 0.025 in | 5 µin | Board Guide Ground Bus (Plane) | 15.62mm 6.6mm | Outer Shroud Contacts Plug | Surface Mount |

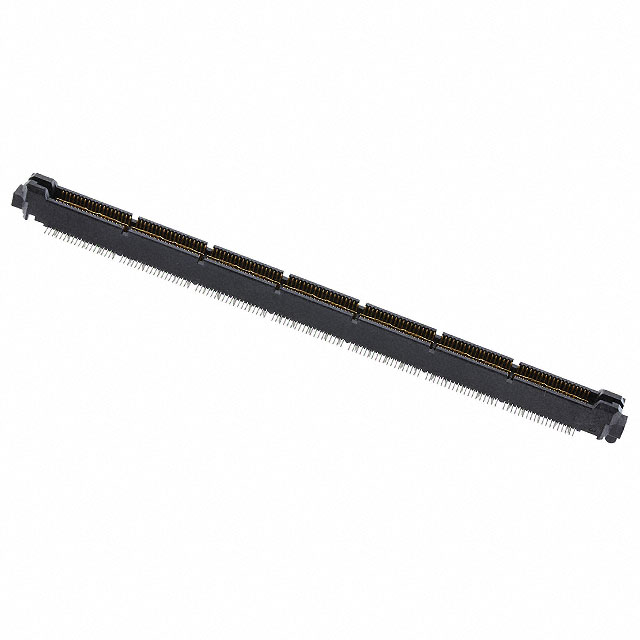

 TE Connectivity AMP Connectors | 2 | 0.251 in | Palladium-Nickel | 266 | 0.025 in | 5 µin | Board Guide Ground Bus (Plane) | 15.62mm 6.6mm | Outer Shroud Contacts Plug | Surface Mount |
