043460 Series
Manufacturer: Molex
Beta
⌘K

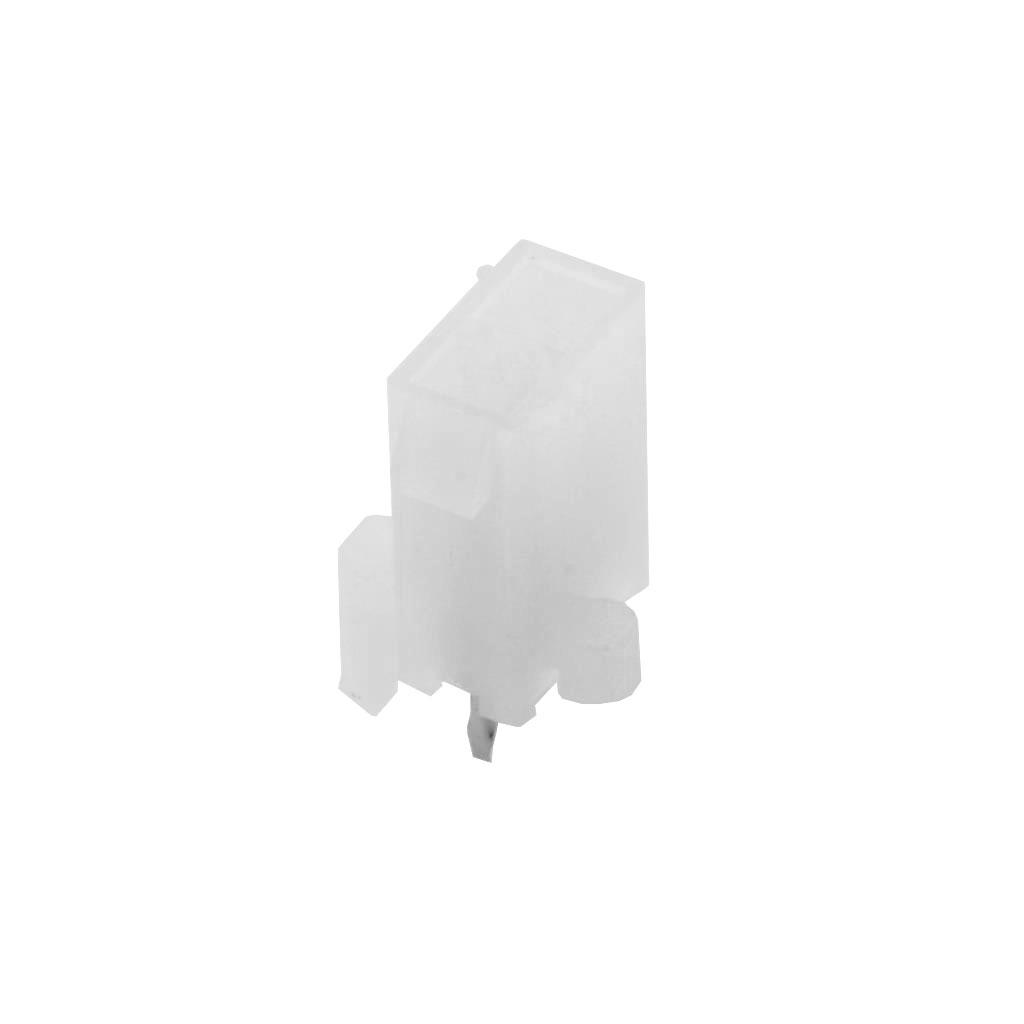

MINI-FIT JR. VERT. HDR. MF/BL 2C
| Part | Insulation Height | Contact Shape | Number of Rows | Number of Positions | Contact Finish - Post | Shrouding | Style | Number of Positions Loaded | Connector Type | Insulation Color | Insulation Material | Termination | Fastening Type | Voltage Rating | Voltage Rating (Type) | Contact Length - Post | Contact Material | Mounting Type | Contact Finish - Mating | Contact Type | Material Flammability Rating | Contact Finish Thickness - Mating | Operating Temperature (Min) | Operating Temperature (Max) | Current Rating | Current Rating | Features | Row Spacing - Mating | Contact Finish Thickness - Post | Applications | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 0.5 in | Square | 2 | 2 | Tin | Shrouded - 4 Wall | Board Cable/Wire | All | Header | Natural | Nylon 6/6 Polyamide (PA66) | Solder | Locking Ramp | 600 V | DC | 0.14 in | Brass Alloy | Through Hole | Tin | Male Pin | UL94 V-2 | 100 µin | -40 °C | 105 °C | 0 A | Varies by Wire Gauge | Board Lock | 0.165 in | 100 Ąin | General Purpose Industrial Telecommunications | |
 Molex | 0.5 in | Square | 2 | 2 | Tin | Shrouded - 4 Wall | Board Cable/Wire | All | Header | Natural | Nylon 6/6 Polyamide (PA66) | Solder | Locking Ramp | 600 V | DC | 0.14 in | Brass Alloy | Through Hole | Tin | Male Pin | UL94 V-0 | 100 µin | -40 °C | 105 °C | 0 A | Varies by Wire Gauge | 0.165 in | 100 Ąin | General Purpose Industrial Telecommunications | ||
Molex | 0.504 in | Circular | 2 | 6 | Tin | Shrouded - 4 Wall | Board Cable/Wire | All | Header | Natural | Nylon 6/6 Polyamide (PA66) | Solder | Locking Ramp | 0.13 in | Brass | Through Hole | Tin | Male Pin | UL94 V-0 | 100 µin | Board Lock | 0.165 in | 100 Ąin | General Purpose Industrial Telecommunications | 0.165 in | ||||||
Molex | 0.5 in | Square | 2 | 4 | Tin | Shrouded - 4 Wall | Board Cable/Wire | All | Header | Natural | Nylon 6/6 Polyamide (PA66) | Solder | Locking Ramp | 600 V | DC | 0.14 in | Brass Alloy | Through Hole | Tin | Male Pin | UL94 V-0 | 100 µin | -40 °C | 105 °C | 0 A | Varies by Wire Gauge | 0.165 in | 100 Ąin | General Purpose Industrial Telecommunications | 0.165 in | |
Molex | 0.504 in | Circular | 2 | 6 | Tin | Shrouded - 4 Wall | Board Cable/Wire | All | Header | Natural | Nylon 6/6 Polyamide (PA66) | Solder | Locking Ramp | 0.13 in | Brass | Through Hole | Tin | Male Pin | UL94 V-2 | 100 µin | Board Lock | 0.165 in | 100 Ąin | General Purpose Industrial Telecommunications | 0.165 in |
