504566 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

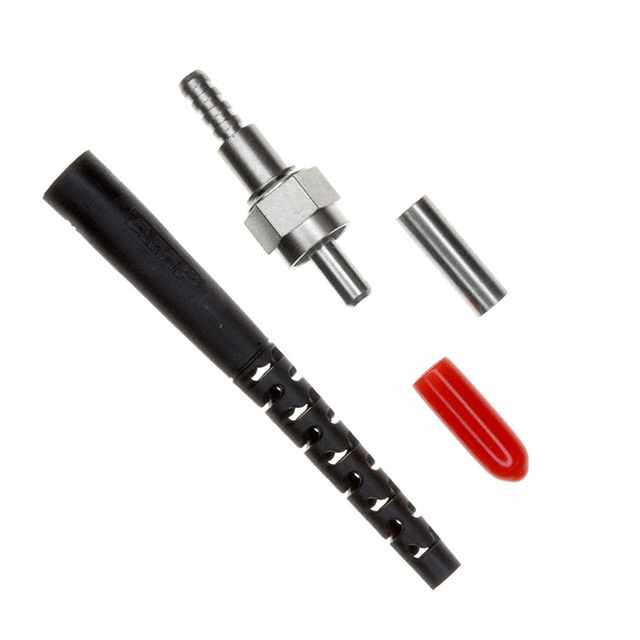

CONN FIBER FSMA PLUG SMPLX 125UM
| Part | Attenuation (Typical) | Body Material | Ferrule Material | Mating Cycles | Operating Temperature (Min) | Operating Temperature (Max) | Housing Color | Cable Diameter | Simplex/Duplex | Mode | Connector Style | Features | Mounting Type | Connector Type | Boot Color | Fiber Cladding Diameter | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | -1.3 db | Copper Alloy Nickel Plated | Stainless Steel | 200 cycles | -40 °C | 85 °C | Silver | 3.1 mm | Simplex | Multimode | FSMA | Dust Cap Strain Relief | Free Hanging (In-Line) | Plug | Black | 125 µm | Threaded |
TE Connectivity AMP Connectors | -1.3 db | Copper Alloy Nickel Plated | Stainless Steel | 200 cycles | -40 °C | 85 °C | Silver | 3.1 mm | Simplex | Multimode | FSMA | Dust Cap Strain Relief | Free Hanging (In-Line) | Plug | Black | 140 µm | Threaded |
