053307 Series

Manufacturer: Molex

Catalog

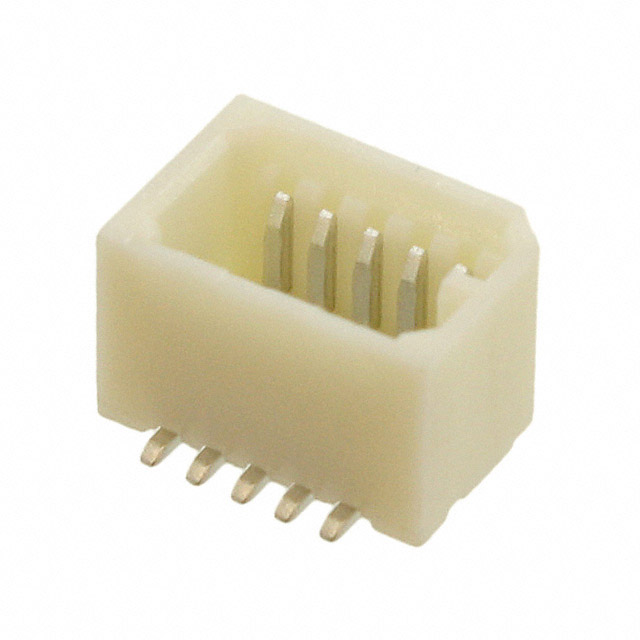

CONN HDR 10POS SMD TIN

Part	Mated Stacking Height Options	Contact Finish	Connector Type	Height Above Board	Pitch	Number of Positions	Mounting Type	Contact Finish Thickness	Number of Rows
Molex 0533071091	4.5mm 5.5mm	Tin	Header Outer Shroud Contacts	0.144 in	0.031 in	10	Surface Mount	120 µin	2
Molex 0533073471	4.5mm 5.5mm	Tin	Header Outer Shroud Contacts	0.144 in	0.031 in	34	Surface Mount	120 µin	2
Molex 0533072071	4.5mm 5.5mm	Tin	Header Outer Shroud Contacts	0.144 in	0.031 in	20	Surface Mount	120 µin	2
Molex 0533071691	4.5mm 5.5mm	Tin	Header Outer Shroud Contacts	0.144 in	0.031 in	16	Surface Mount	120 µin	2
Molex 0533072471	4.5mm 5.5mm	Tin	Header Outer Shroud Contacts	0.144 in	0.031 in	24 pos	Surface Mount	120 µin	2
Molex 0533071671	4.5mm 5.5mm	Tin	Header Outer Shroud Contacts	0.144 in	0.031 in	16	Surface Mount	120 µin	2
Molex 0533073071	4.5mm 5.5mm	Tin	Header Outer Shroud Contacts	0.144 in	0.031 in	30	Surface Mount	120 µin	2
Molex 0533074071	4.5mm 5.5mm	Tin	Header Outer Shroud Contacts	0.144 in	0.031 in	40	Surface Mount	120 µin	2
