2342077 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

PCB CONNECTOR FOR TERMINAL BLOCKS, 21POS HDR 90 DEG,HT,3.81MM PITCH,TL1.9MM

Part	Color	Number of Positions	Pitch	Operating Temperature (Min)	Operating Temperature (Max)	Header Orientation Angle	Header Orientation	Mounting Type	Current - UL	Voltage - UL	Termination Style	Type	Positions Per Level	Contact Mating Finish	Features	Number of Levels	Material Flammability Rating	Contact Tail Length	Contact Material	Housing Material	Insulation Height
TE Connectivity AMP Connectors 2-2342077-1	Black	21	0.15 in	-40 °C	105 °C	90 °	Right Angle	Through Hole	11 A	300 V	Solder	Header Male Pins Shrouded (4 Side)	21	Tin	High Temp Housing	1	UL94 V-0	0.075 in	Copper Alloy	Nylon PA Polyamide	0.285 in

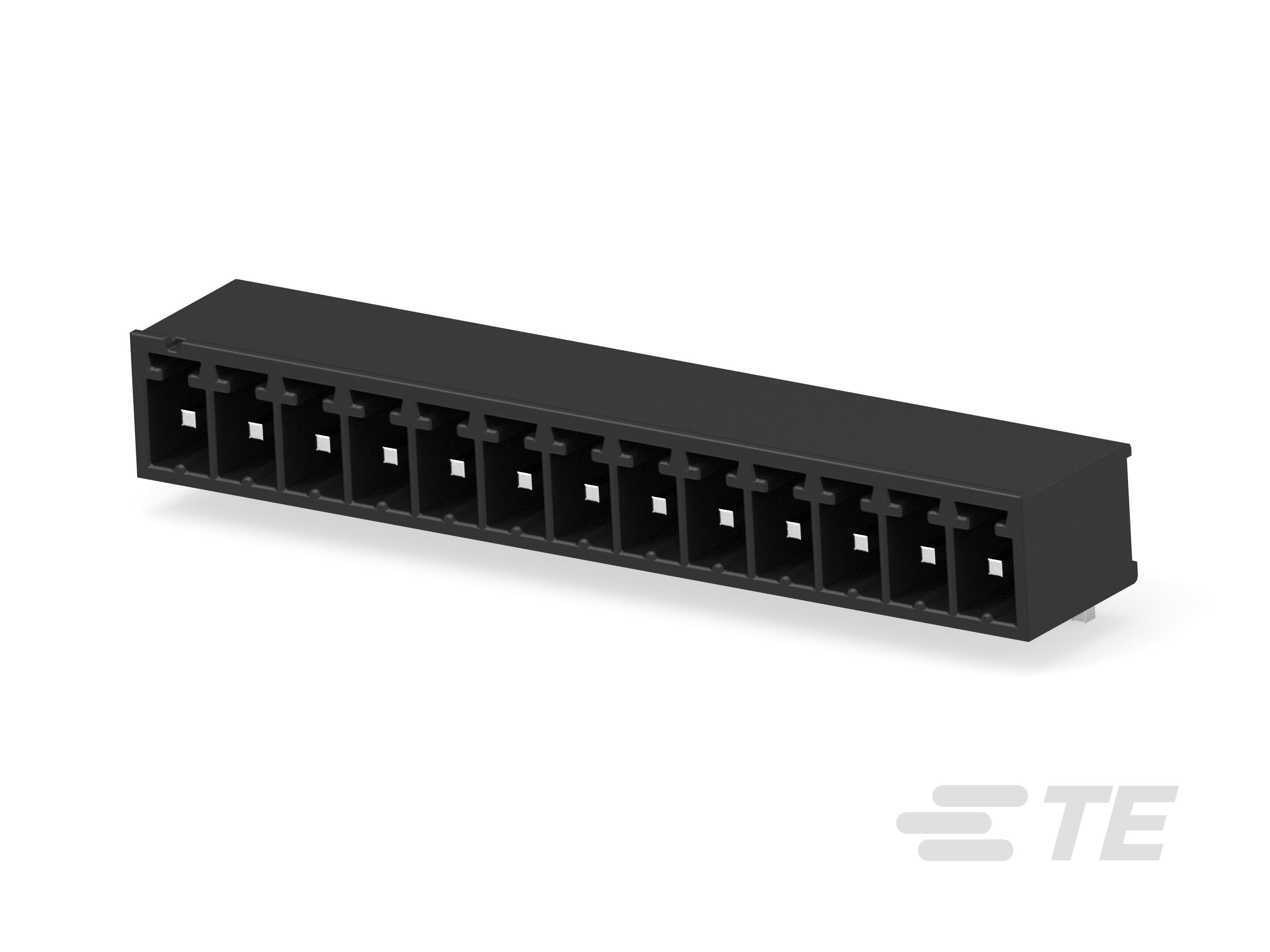

TE Connectivity AMP Connectors 1-2342077-3	Black	13	0.15 in	-40 °C	105 °C	90 °	Right Angle	Through Hole	11 A	300 V	Solder	Header Male Pins Shrouded (4 Side)	13	Tin	High Temp Housing	1	UL94 V-0	0.075 in	Copper Alloy	Nylon PA Polyamide	0.285 in
TE Connectivity AMP Connectors 2342077-5	Black	5	0.15 in	-40 °C	105 °C	90 °	Right Angle	Through Hole	11 A	300 V	Solder	Header Male Pins Shrouded (4 Side)	5	Tin	High Temp Housing	1	UL94 V-0	0.075 in	Copper Alloy	Nylon PA Polyamide	0.285 in
TE Connectivity AMP Connectors 1-2342077-8	Black	18	0.15 in	-40 °C	105 °C	90 °	Right Angle	Through Hole	11 A	300 V	Solder	Header Male Pins Shrouded (4 Side)	18	Tin	High Temp Housing	1	UL94 V-0	0.075 in	Copper Alloy	Nylon PA Polyamide	0.285 in
TE Connectivity AMP Connectors 1-2342077-1	Black	11	0.15 in	-40 °C	105 °C	90 °	Right Angle	Through Hole	11 A	300 V	Solder	Header Male Pins Shrouded (4 Side)	11	Tin	High Temp Housing	1	UL94 V-0	0.075 in	Copper Alloy	Nylon PA Polyamide	0.285 in
TE Connectivity AMP Connectors 1-2342077-2	Black	12	0.15 in	-40 °C	105 °C	90 °	Right Angle	Through Hole	11 A	300 V	Solder	Header Male Pins Shrouded (4 Side)	12	Tin	High Temp Housing	1	UL94 V-0	0.075 in	Copper Alloy	Nylon PA Polyamide	0.285 in
TE Connectivity AMP Connectors 2-2342077-4	Black	24 pos	0.15 in	-40 °C	105 °C	90 °	Right Angle	Through Hole	11 A	300 V	Solder	Header Male Pins Shrouded (4 Side)	24	Tin	High Temp Housing	1	UL94 V-0	0.075 in	Copper Alloy	Nylon PA Polyamide	0.285 in

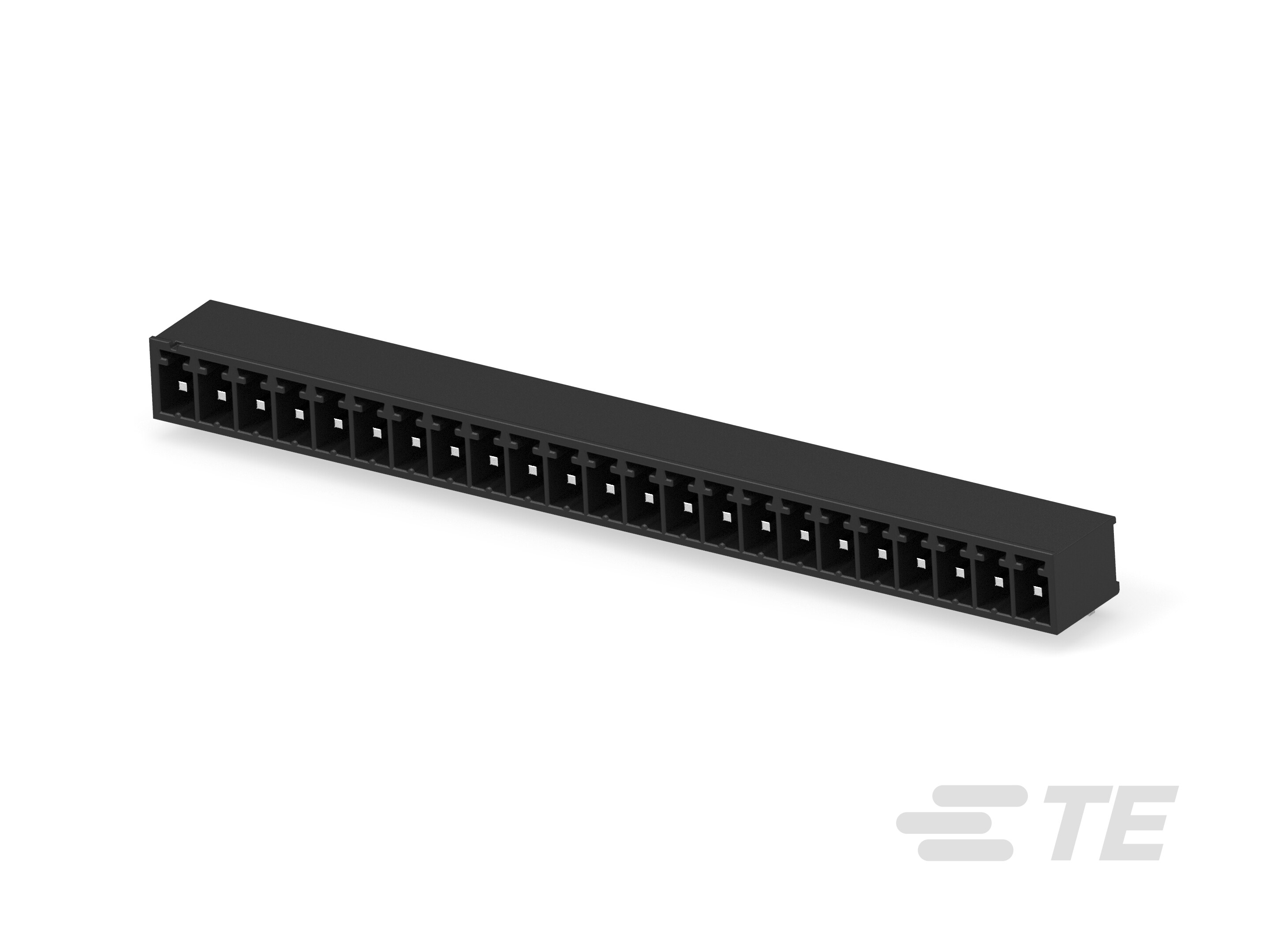

TE Connectivity AMP Connectors 2-2342077-3	Black	23	0.15 in	-40 °C	105 °C	90 °	Right Angle	Through Hole	11 A	300 V	Solder	Header Male Pins Shrouded (4 Side)	23	Tin	High Temp Housing	1	UL94 V-0	0.075 in	Copper Alloy	Nylon PA Polyamide	0.285 in

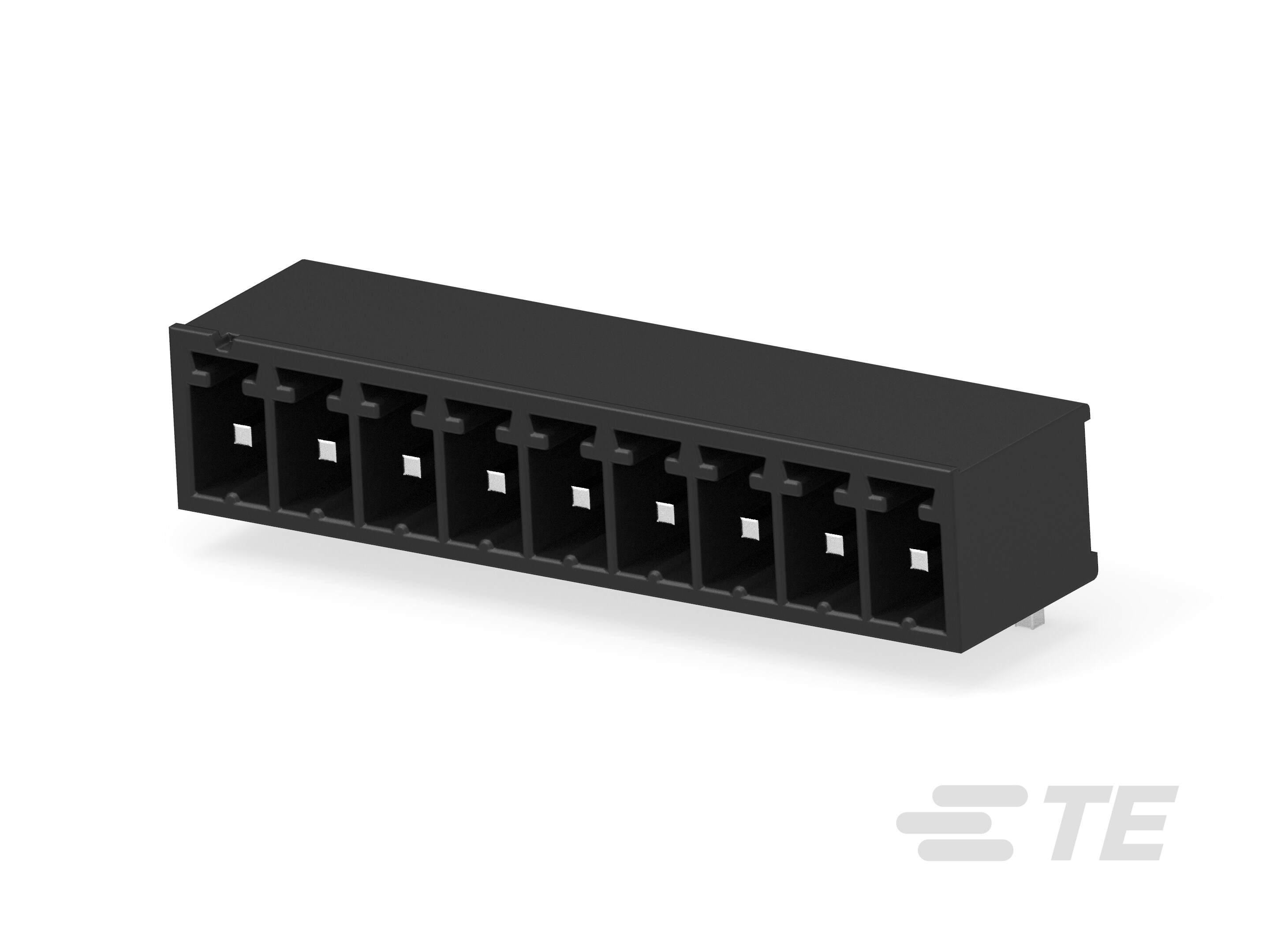

TE Connectivity AMP Connectors 2342077-9	Black	9	0.15 in	-40 °C	105 °C	90 °	Right Angle	Through Hole	11 A	300 V	Solder	Header Male Pins Shrouded (4 Side)	9	Tin	High Temp Housing	1	UL94 V-0	0.075 in	Copper Alloy	Nylon PA Polyamide	0.285 in

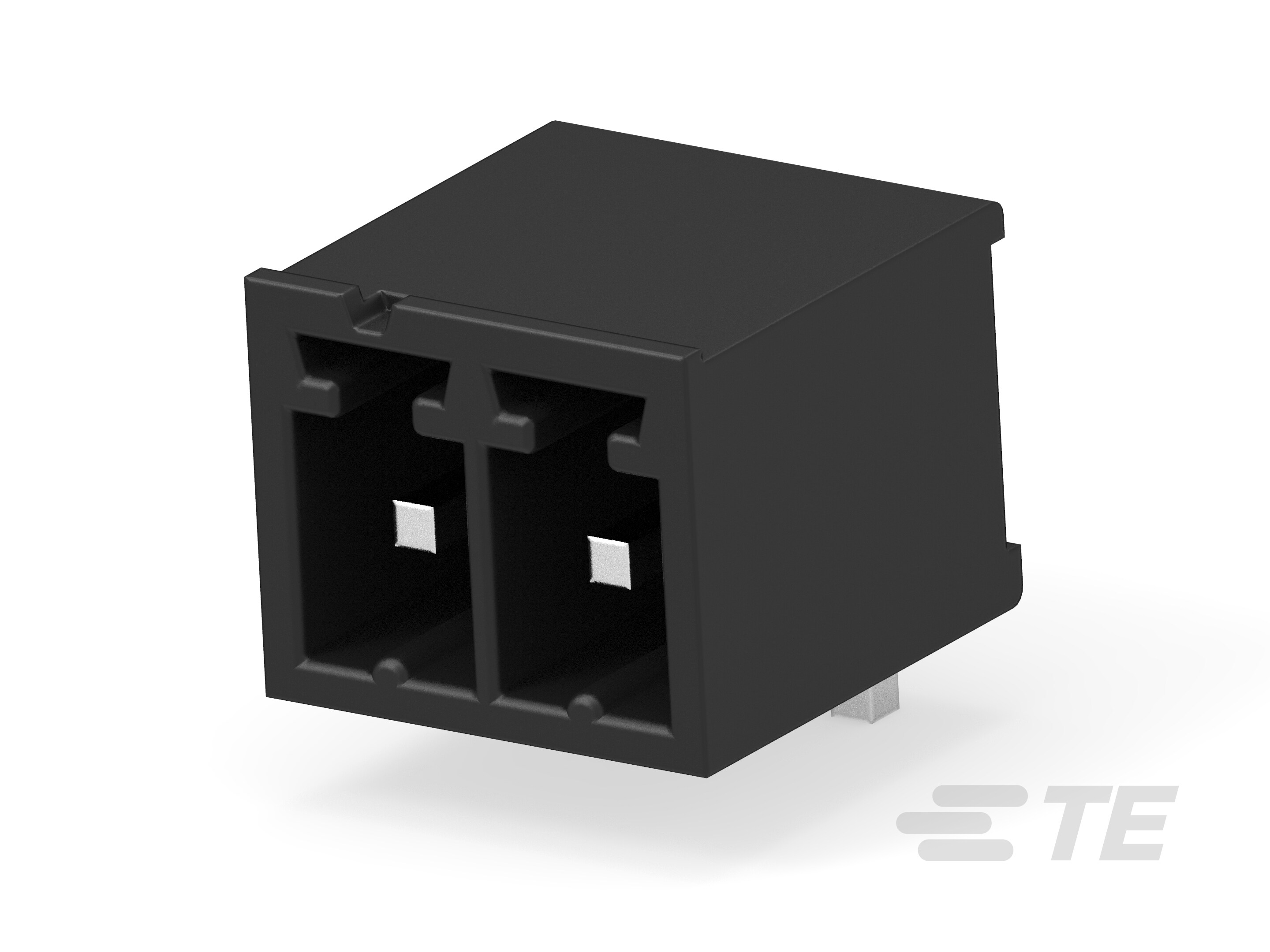

TE Connectivity AMP Connectors 2342077-2	Black	2	0.15 in	-40 °C	105 °C	90 °	Right Angle	Through Hole	11 A	300 V	Solder	Header Male Pins Shrouded (4 Side)	2	Tin	High Temp Housing	1	UL94 V-0	0.075 in	Copper Alloy	Nylon PA Polyamide	0.285 in
