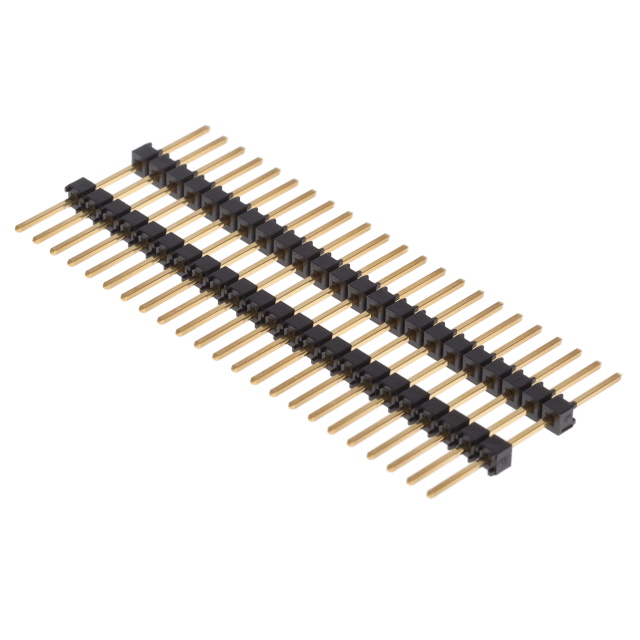

ZW-23-12 Series
Manufacturer: Samtec Inc.
Beta
⌘K
CONN BRD STACK .100" 46POS
| Part | Contact Finish Thickness - Post (Mating) | Color | Length - Tail | Length - Stack Height | Contact Finish - Post (Mating) | Pitch | Number of Positions | Number of Rows | Row Spacing | Mounting Type | Length - Post (Mating) | Termination | Length - Overall Pin |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Samtec Inc. | 10 µin | Black | 0.236 in | 0.6 in | Gold | 0.1 in | 46 | 2 | 0.1 in | Through Hole | 0.194 in | Solder | 1.03 in |
 Samtec Inc. | 10 µin | Black | 0.29 in | 0.45 in | Gold | 0.1 in | 23 | 1 | Through Hole | 0.29 in | Solder | 1.03 in |
