PIC32MZ2064DAS176 Series

Catalog

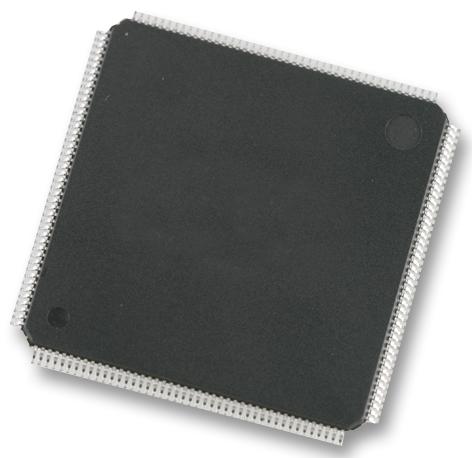

MCU 32-BIT PIC32MZDA MIPS32 RISC 2MB FLASH 2.2V TO 3.6V 176-PIN LQFP TRAY

Part	Core Processor	Program Memory Type	Connectivity	A/D Resolution (bits)	A/D Channels	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	Peripherals	Speed	Package / Case	Operating Temperature (Max)	Operating Temperature (Min)	RAM Type	RAM Size	RAM Size Width	RAM Size Depth	Program Memory Width	Program Memory Size	Program Memory Depth	Package Width	Package Name	Package Length	Oscillator Type	Mounting Type	Core Size (Bit Width)	Number of I/O	Core Configuration
Microchip Technology PIC32MZ2064DAS176-I/2J	MIPS32® microAptiv™	FLASH	CANbus EBI EMI Ethernet I2C IrDA LINbus PMP SPI SQI UART USART USB OTG	12 bit	45 count	1.9 V	1.7 V	Brown-out Detect DMA HLVD I2S POR PWM Reset WDT	200 MHz	176-LQFP Exposed Pad	85 °C	-40 °C	DDR2 SDRAM	32 MB	8 bit	640 K	8 bit	2 MB	2 M	20 mm	176-LQFP	20 mm	Internal	Surface Mount	32 Bit	120	Single-Core
Microchip Technology PIC32MZ2064DAS176T-V/2J	MIPS32® microAptiv™	FLASH	CANbus EBI EMI Ethernet I2C IrDA LINbus PMP SPI SQI UART USART USB OTG	12 bit	45 count	1.9 V	1.7 V	Brown-out Detect DMA HLVD I2S POR PWM Reset WDT	200 MHz	176-LQFP Exposed Pad	105 °C	-40 °C	DDR2 SDRAM	32 MB	8 bit	640 K	8 bit	2 MB	2 M	20 mm	176-LQFP	20 mm	Internal	Surface Mount	32 Bit	120	Single-Core
Microchip Technology PIC32MZ2064DAS176T-I/2J	MIPS32® microAptiv™	FLASH	CANbus EBI EMI Ethernet I2C IrDA LINbus PMP SPI SQI UART USART USB OTG	12 bit	45 count	1.9 V	1.7 V	Brown-out Detect DMA HLVD I2S POR PWM Reset WDT	200 MHz	176-LQFP Exposed Pad	85 °C	-40 °C	DDR2 SDRAM	32 MB	8 bit	640 K	8 bit	2 MB	2 M	20 mm	176-LQFP	20 mm	Internal	Surface Mount	32 Bit	120	Single-Core
Microchip Technology PIC32MZ2064DAS176-V/2J	MIPS32® microAptiv™	FLASH	CANbus EBI EMI Ethernet I2C IrDA LINbus PMP SPI SQI UART USART USB OTG	12 bit	45 count	1.9 V	1.7 V	Brown-out Detect DMA HLVD I2S POR PWM Reset WDT	200 MHz	176-LQFP Exposed Pad	105 °C	-40 °C	DDR2 SDRAM	32 MB	8 bit	640 K	8 bit	2 MB	2 M	20 mm	176-LQFP	20 mm	Internal	Surface Mount	32 Bit	120	Single-Core

Catalog

Description

PIC32MZ DA series offers MPU like performance with ease of design of an MCU for GUI designs with it’s 2MB Flash and 640KB of SRAM, available on-chip 32MB or 128MB externally addressable DDR2 DRAM, integrated Graphics Controller, Graphics Processor, 200 MHz speed, 12-bit 18 MSPS ADC module with up to 45 analog inputs, CAN and HS USB.
