KSA0M3 Series

Catalog

SWITCH TACTILE SPST-NO 0.01A 32V

Part	Mechanical Life (Cycles)	Switch Travel	Outline Width	Outline Length	Termination Style	Operating Force	Circuit	Actuator Type	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Contact Rating (Current)	Actuator Height off PCB (Vertical)	Ingress Protection IP Rating	Ingress Protection Description	Actuator Orientation	Illumination	Switch Function
LITTELFUSE KSA0M331LFT	1000000 Cycles	0.5 mm	7.4 mm	7.4 mm	PC Pin	130 gf	SPST-NO	Standard	Through Hole	125 °C	-40 °C	0.01 A	4.7 mm	IP60	Dust Tight	Top Actuated	Non-Illuminated	Off-Mom
LITTELFUSE KSA0M312	1000000 Cycles	0.5 mm	6.2 mm	6.2 mm	PC Pin	130 gf	SPST-NO	Standard	Through Hole	85 °C	-40 °C	0.05 A	4.7 mm	IP65	Dust Tight Water Resistant	Top Actuated	Non-Illuminated	Off-Mom
LITTELFUSE KSA0M331 LFTR	1000000 Cycles	0.5 mm	7.4 mm	7.4 mm	PC Pin	130 gf	SPST-NO	Standard	Through Hole	125 °C	-40 °C	0.01 A	4.7 mm	IP60	Dust Tight	Top Actuated	Non-Illuminated	Off-Mom
LITTELFUSE KSA0M311	1000000 Cycles	0.5 mm	7.4 mm	7.4 mm	PC Pin	130 gf	SPST-NO	Standard	Through Hole	90 °C	-40 °C	0.05 A	4.7 mm	IP60	Dust Tight	Top Actuated	Non-Illuminated	Off-Mom
LITTELFUSE KSA0M311 LFTR	1000000 Cycles	0.5 mm	7.4 mm	7.4 mm	PC Pin	130 gf	SPST-NO	Standard	Through Hole	90 °C	-40 °C	0.05 A	4.7 mm	IP60	Dust Tight	Top Actuated	Non-Illuminated	Off-Mom

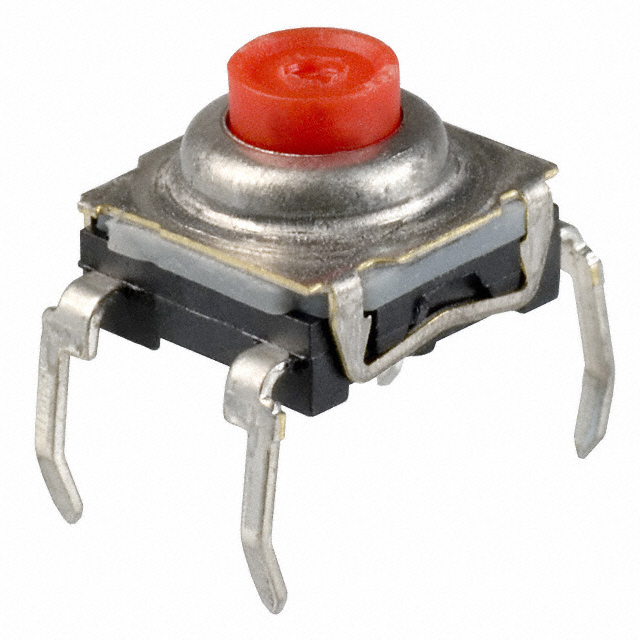

LITTELFUSE KSA0M332	1000000 Cycles	0.5 mm	6.2 mm	6.2 mm	PC Pin	130 gf	SPST-NO	Standard	Through Hole	125 °C	-40 °C	0.01 A	4.7 mm	IP65	Dust Tight Water Resistant	Top Actuated	Non-Illuminated	Off-Mom
