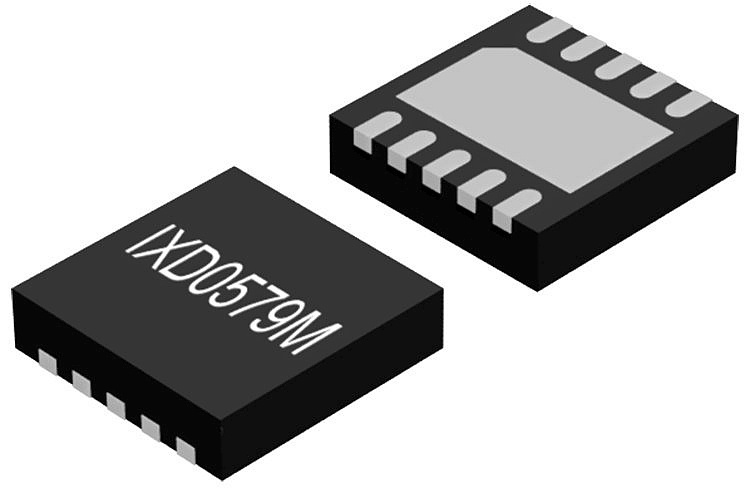

IXD0579M Series

Half-Bridge DRVR 100V 1A TDFN-10

Catalog

Half-Bridge DRVR 100V 1A TDFN-10

Part	Gate Channel	Gate Type	Channel Type	Input Type	Operating Temperature (Max)	Operating Temperature (Min)	High Side Voltage - Max (Bootstrap)	Package Length	Package Name	Package Width	Mounting Type	Number of Drivers	Logic Voltage - VIL	Logic Voltage - VIH	Package / Case	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Current - Peak Output (Source)	Current - Peak Output (Sink)	Driven Configuration	Fall Time (Typ)	Rise Time (Typ)
LITTELFUSE IXD0579MTR	N-Channel	MOSFET	Independent	Non-Inverting	125 °C	-40 °C	100 V	3 mm	10-TDFN	3 mm	Surface Mount	2	0.8 V	2.5 V	10-WFDFN Exposed Pad	6.5 VDC	18 V	1.5 A	2.5 A	Half-Bridge	15 ns	19 ns

Catalog

Half-Bridge DRVR 100V 1A TDFN-10

Description

The IXD0579M is a 100 V, high-speed gate driver that supports both high-side and low-side configurations, enabling the control of two N-channel MOSFETs or IGBTs in a half-bridge setup. The IXD0579M logic inputs are compatible with standard TTL and CMOS levels down to 3.3 V to interface easily with controlling devices. The driver outputs allow 1.5 A source & 2.5 A sink current capability, protected from cross-conduction.
