5645945 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

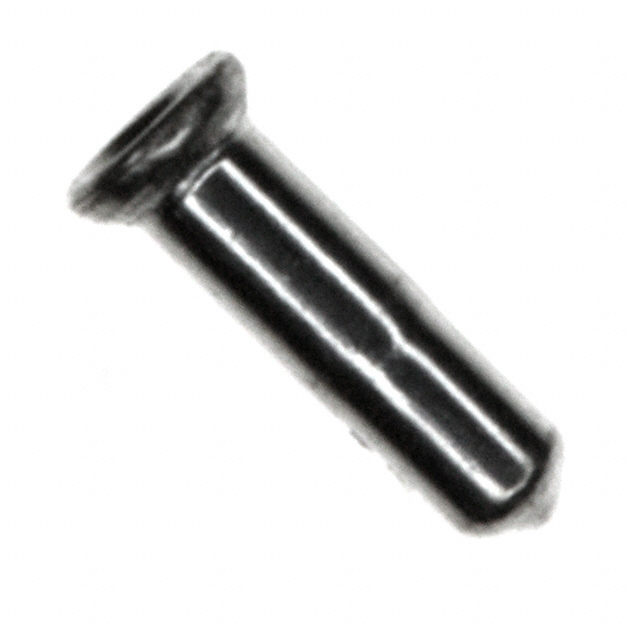

CONN PIN RCPT .015-.021 SOLDER
| Part | Board Thickness (Min) | Board Thickness (Max) | Operating Temperature (Min) | Operating Temperature (Max) | Tail Type | Contact Finish Thickness | Socket Depth (Min) | Socket Depth (Max) | Mounting Hole Diameter (Max) | Mounting Hole Diameter (Min) | Contact Finish | Length - Overall | Accepts Pin Diameter (Max) | Accepts Pin Diameter (Min) | Contact Material | Termination | Flange Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.031 in | 0.093 in | -65 °C | 126 °C | No Tail | 30 µin | 0.09 in | 0.145 in | 0.046 in | 0.043 in | Gold | 0.158 in | 0.021 in | 0.015 in | Beryllium Copper | Solder | 0.066 in |
