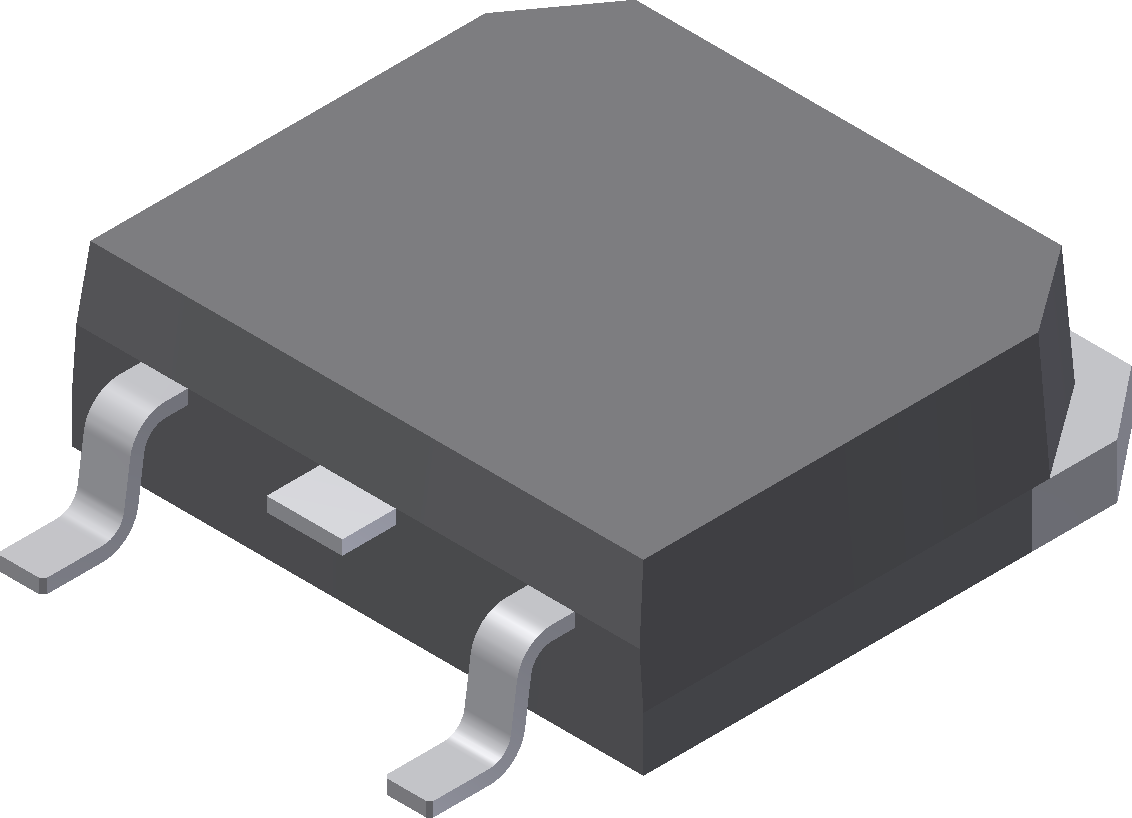

CLA50E1200TC Series
Manufacturer: LITTELFUSE
Beta
⌘K
POWER THYRISTOR DISCRETES-SCR TO-268AA/ TUBE
| Part | Voltage - Off State | Current - On State (Max) | Operating Temperature (Min) | Operating Temperature (Max) | Voltage - Gate Trigger (Vgt) (Max) | Mounting Type | SCR Type | Package / Case | Current - Off State (Max) | Package Name | Current - Hold (Ih) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge Type | Current - Non Rep. Surge Frequencies | Current - Non Rep. Surge (Itsm) | Current - On State (It (RMS)) (Max) | Voltage - On State (Vtm) (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 1200 kV | 50 A | -40 °C | 150 °C | 1.5 V | Surface Mount | Standard Recovery | D3PAK (2 Leads + Tab) TO-268-3 TO-268AA | 50 µA | TO-268AA | 75 mA | 50 mA | Itsm | 50Hz 60Hz | 550 A 590 A | 80 A | 1.6 V |
