776087 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

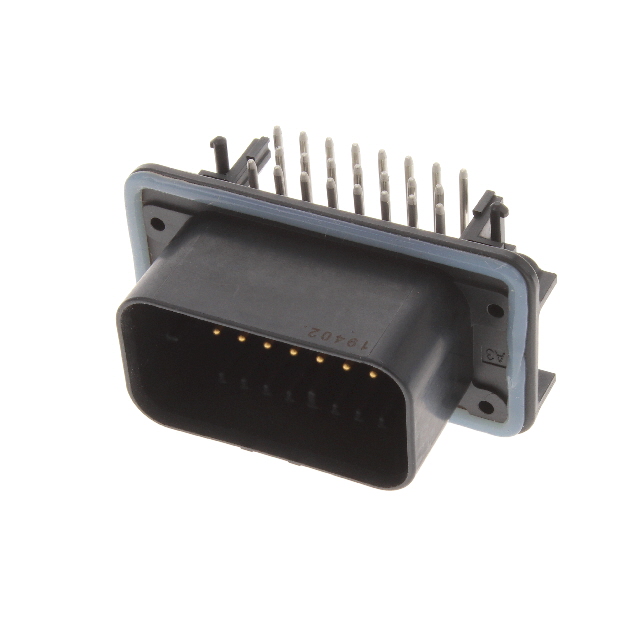

CONN HEADER R/A 23POS 4MM
| Part | Style | Number of Positions Loaded | Row Spacing - Mating | Row Spacing - Mating | Number of Positions | Insulation Color | Termination | Applications | Voltage Rating | Contact Material | Insulation Material | Current Rating (Amps) | Fastening Type | Pitch - Mating | Pitch - Mating | Mounting Type | Number of Rows | Shrouding | Contact Finish - Mating | Contact Shape | Connector Type | Contact Type | Features | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Board to Cable/Wire | All | 0.157 in | 4 mm | 23 | Black | Solder | Automotive Industrial | 250 VAC | Brass | Polybutylene Terephthalate (PBT) Glass Filled | Varies by Wire Gauge | Locking Ramp | 0.157 " | 4 mm | Panel Mount Right Angle Through Hole | 3 | Shrouded - 4 Wall | Gold-Palladium | Circular | Header | Male Pin | Board Guide Sealed | 125 °C | -40 °C |
