LN28 Series

Catalog

LED RED 3MM ROUND T/H

Part	Configuration	Height (Max)	Color	Wavelength - Peak	Lens Size	Lens Size (Code)	Lens Style	Package / Case	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Current - Test	Mounting Type	Supplier Device Package Size	Package Shape	Supplier Device Package Shape	Package Name	Package Dimension	Lens Color	Lens Transparency

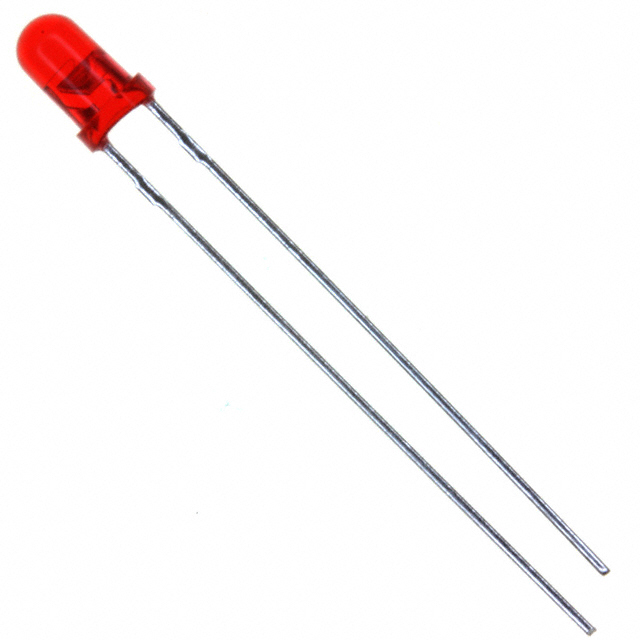

Panasonic Electronic Components LN28RCPX	Standard	5.7 mm	Red	700 nm	3 mm	T-1	Domed Top Round	Radial	2.2 V	3 mcd	20 mA	Through Hole
Panasonic Electronic Components LN28CALUS	Standard	4.7 mm	Red	665 nm	3 mm	T-1	Domed Top Round	Radial	1.8 V	85 mcd	20 mA	Through Hole	3 mm	Round	Round	3mm Round	3 mm	Red	Clear
Panasonic Electronic Components LN28RP	Standard	5.2 mm	Red	700 nm	3 mm	T-1	Domed Top Round	Radial	2.2 V	0.8 mcd	15 mA	Through Hole	3 mm	Round	Round	3mm Round	3 mm	Red	Diffused
Panasonic Electronic Components LN28WALUS	Standard	5.7 mm	Red	665 nm	3 mm	T-1	Domed Top Round	Radial	1.8 V	50 mcd	20 mA	Through Hole	3 mm	Round	Round	3mm Round	3 mm	White	Diffused
Panasonic Electronic Components LN28RCPP	Standard	5.2 mm	Red	700 nm	3 mm	T-1	Domed Top Round	Radial	2.2 V	3 mcd	15 mA	Through Hole	3 mm	Round	Round	3mm Round	3 mm	Red	Clear
Panasonic Electronic Components LN28RALXU	Standard	5.7 mm	Red	665 nm	3 mm	T-1	Domed Top Round	Radial	1.8 V	25 mcd	20 mA	Through Hole
