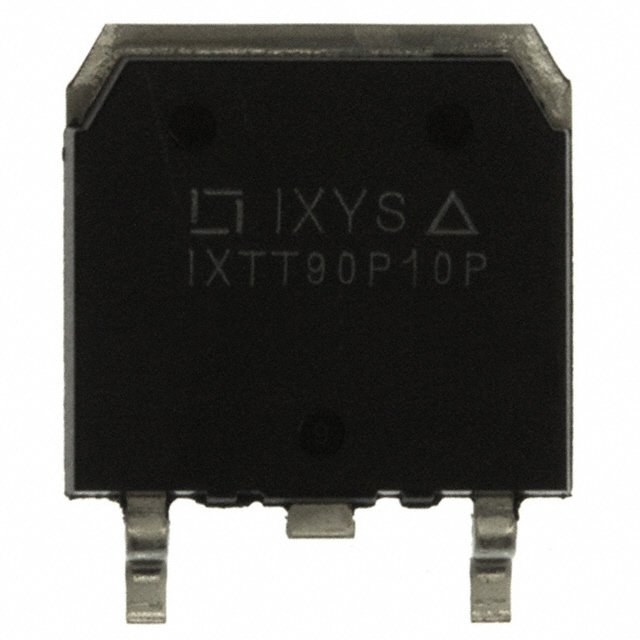

IXTT90P10P Series
Manufacturer: LITTELFUSE
Beta
⌘K
POWER MOSFET, P CHANNEL, 100 V, 90 A, 0.025 OHM, TO-268 (D3PAK), SURFACE MOUNT
| Part | Vgs (Max) | Vgs(th) (Max) | Mounting Type | Gate Charge (Max) | Input Capacitance (Ciss) (Max) | Current - Continuous Drain (Id) (Tc) | Power Dissipation (Max) | Drive Voltage (Max Rds On, Min Rds On) | Package / Case | FET Type | Rds On (Max) | Package Name | Operating Temperature (Min) | Operating Temperature (Max) | Technology | Drain to Source Voltage (Vdss) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 20 V | 4 V | Surface Mount | 120 nC | 5800 pF | 90 A | 462 W | 10 V | D3PAK (2 Leads + Tab) TO-268-3 TO-268AA | P-Channel | 25 mOhm | TO-268AA | -55 °C | 150 °C | MOSFET (Metal Oxide) | 100 V |
LITTELFUSE | 20 V | 4 V | Surface Mount | 120 nC | 5800 pF | 90 A | 462 W | 10 V | D3PAK (2 Leads + Tab) TO-268-3 TO-268AA | P-Channel | 25 mOhm | TO-268AA | -55 °C | 150 °C | MOSFET (Metal Oxide) | 100 V |
