2369833 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

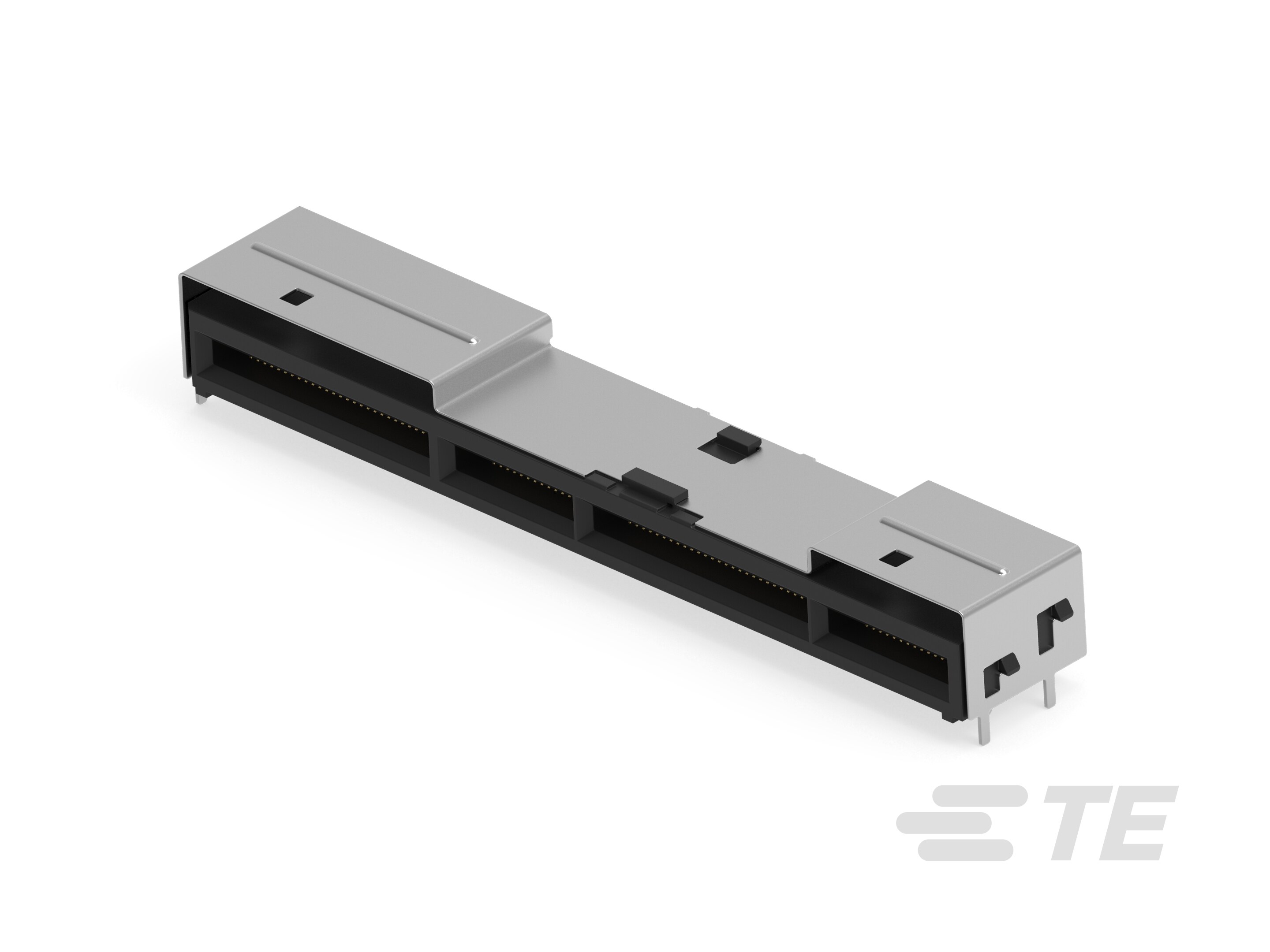

RECEPT ASSY, RA, 168 POS, SLIVER 2.0
| Part | Contact Finish Thickness | Card Thickness | Pitch | Gender | Card Type | Number of Rows | Color | Termination | Contact Finish | Mounting Type | Contact Material | Number of Positions | Operating Temperature (Min) | Operating Temperature (Max) | Features | Read Out | Termination Rows | Material - Insulation | Contact Finish Thickness (string set options) | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 15 µin | 0.062 in | 0.024 in | Female | Dual Edge Non Specified | 2 | Black | Solder | Gold | Right Angle Surface Mount | Copper Alloy | 168 | -55 °C | 85 °C | Board Guide Solder Retention | Dual | 2 rows | LCP Liquid Crystal Polymer | ||
 TE Connectivity AMP Connectors | 30 µin | 0.062 in | 0.024 in | Female | Dual Edge Non Specified | 2 | Black | Solder | Gold | Right Angle Surface Mount | Copper Alloy | 168 | -55 °C | 85 °C | Board Guide Solder Retention | Dual | 2 rows | LCP Liquid Crystal Polymer | ||
 TE Connectivity AMP Connectors | 0 | 0.062 in | 0.024 in | Female | Dual Edge Non Specified | 2 | Black | Solder | Gold | Right Angle Surface Mount | Copper Alloy | 168 | -55 °C | 85 °C | Board Guide Solder Retention | Dual | 2 rows | LCP Liquid Crystal Polymer | Flash | Flash |
