747945 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

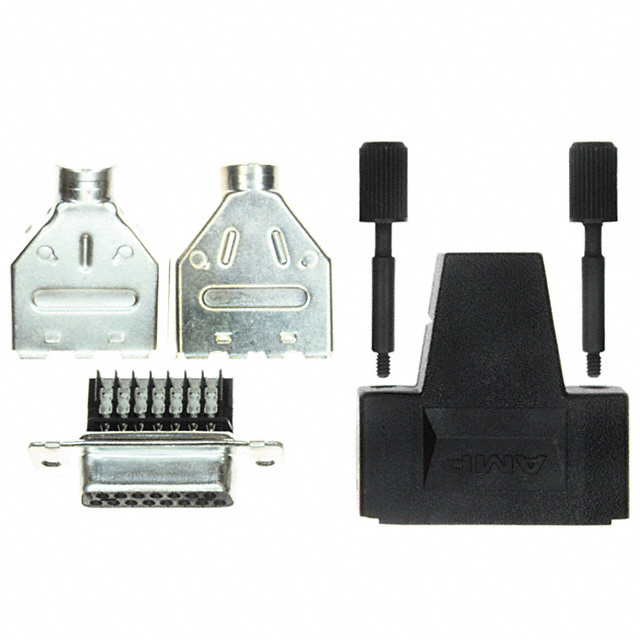

D SUB CONNECTOR, DB15, 15 CONTACTS, RECEPTACLE, IDC / IDT, DA, AMPLIMITE HDE-20 SERIES, STEEL BODY
| Part | Number of Rows | Contact Type | Wire Gauge [Min] | Wire Gauge [Max] | Features | Contact Finish Thickness | Contact Finish Thickness | Shell Size, Connector Layout | Mounting Type | Material Flammability Rating | Color | Current Rating (Amps) | Connector Type | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Flange Feature [custom] | Flange Feature [custom] | Contact Finish | Connector Style | Number of Positions | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 2 | Signal | 26 AWG | 30 AWG | Backshell Cover Mounting Hardware Shielded | 0.76 Ám | 30 Áin | 2 | Free Hanging (In-Line) | UL94 V-0 | Black | Varies by Wire Gauge | Receptacle Female Sockets | Discrete Wire IDC | 105 ░C | -55 °C | 250 VDC | Cable Side | Male Jackscrew (4-40) | Gold | D-Sub | 15 | Phosphor Bronze |
