MK1725 Series

Quad Output Spread Spectrum Clock Generator

Manufacturer: Renesas Electronics Corporation

Catalog

Quad Output Spread Spectrum Clock Generator

Part	Package Length	Package Name	Package Width	Type	Mounting Type	Input	Output	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Input Ratio	Output Ratio	Differential Output	Differential Input	PLL	Number of Circuits	Operating Temperature (Max)	Operating Temperature (Min)	Multiplier	Divider	Frequency - Max
Renesas Electronics Corporation MK1725GLF	0.173 in	16-TSSOP	4.4 mm	Clock Generator	Surface Mount	Clock Crystal	CMOS	3.135 V	3.465 V	1	4	No	No	Yes	1	70 °C	0 °C	Yes	No	136 MHz

Catalog

Quad Output Spread Spectrum Clock Generator

Description

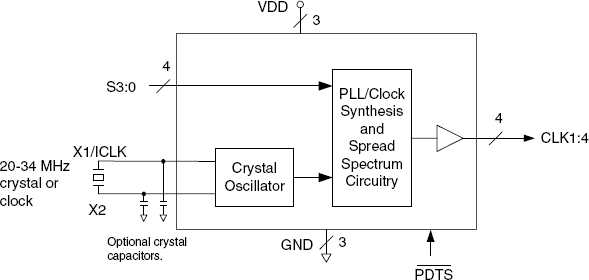

The MK1725 generates 4 high-quality, high-frequency spread spectrum clock outputs. It is designed to replace spread spectrum clock generators and a buffer in many digital consumer applications. Using ICS' patented Phase Locked Loop (PLL) techniques, the device runs from a lower frequency clock or crystal input. The MK1725 has a 16 location ROM table which provides maximum flexibility for system designers. The chip also has a power down pin which can be used to reduce power.
