SW Series

Catalog

POWER TO THE BOARD .200" FLEX STACK

Part	Color	Length - Tail	Termination	Length - Post (Mating)	Number of Rows	Pitch	Number of Positions	Length - Stack Height	Mounting Type	Contact Finish - Post (Mating)	Length - Overall Pin
Samtec Inc. SW-20-04-T-S-200-150	Black	0.09 in	Solder	0.15 in	1	5.08 mm	20	0.2 in	Through Hole	Tin	0.44 in
Samtec Inc. SW-06-04-T-S-500-090	Black	0.09 in	Solder	0.09 in	1	5.08 mm	6	0.5 in	Through Hole	Tin	0.68 in
Samtec Inc. SW-14-04-T-S-500-400-VS	Black		Solder	0.4 in	1	5.08 mm	14	0.5 in	Surface Mount	Tin
Samtec Inc. SW-20-04-T-S-245-150	Black	0.09 in	Solder	0.15 in	1	5.08 mm	20	0.245 in	Through Hole	Tin	0.485 in

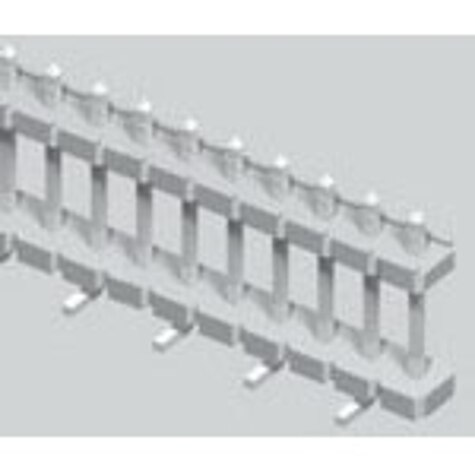

Samtec Inc. SW-06-04-T-S-250-200	Black	0.09 in	Solder	0.2 in	1	5.08 mm	6	0.25 in	Through Hole	Tin	0.54 in
Samtec Inc. SW-06-04-T-S-660-080	Black	0.09 in	Solder	0.08 in	1	5.08 mm	6	0.66 in	Through Hole	Tin	0.83 in
Samtec Inc. SW-02-04-T-S-450-125	Black	0.09 in	Solder	0.125 in	1	5.08 mm	2	0.45 in	Through Hole	Tin	0.665 in
Samtec Inc. SW-05-04-T-S-625-100	Black	0.09 in	Solder	0.1 in	1	5.08 mm	5	0.625 in	Through Hole	Tin	0.815 in
Samtec Inc. SW-02-04-T-S-350-120	Black	0.09 in	Solder	0.12 in	1	5.08 mm	2	0.35 in	Through Hole	Tin	0.56 in
