50845 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

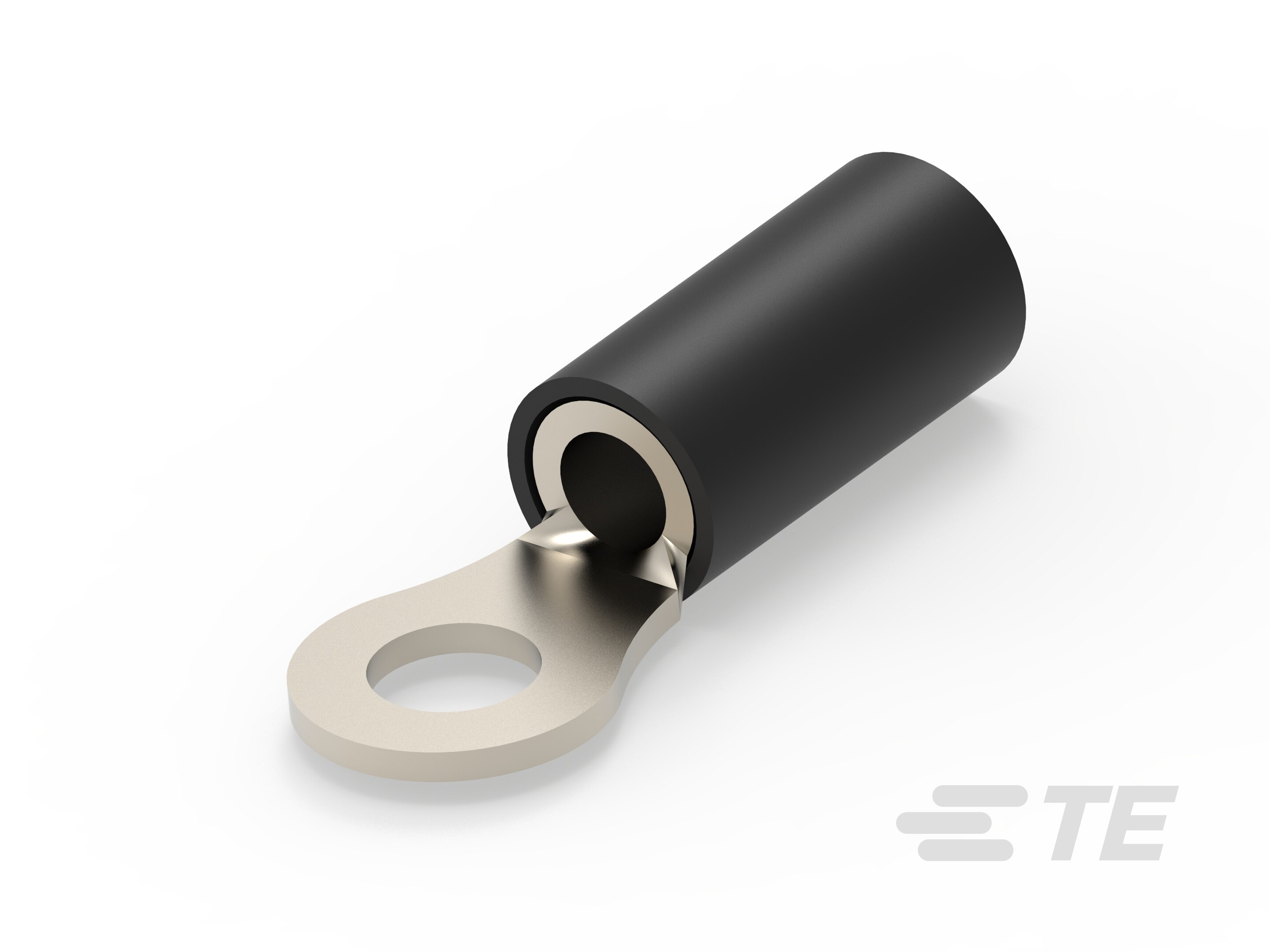

RING TONGUE TERMINAL, M4, #8, 10 AWG, 6 MM², PIDG SERIES, BLACK
| Part | Termination | Color | Length - Overall | Contact Material | Mounting Type | Width - Outer Edges | Stud/Tab Size | Terminal Type | Insulation | Wire Gauge (AWG) (Max) | Wire Gauge (AWG) (Min) | Thickness | Features | Contact Finish | Insulation Diameter (Min) | Insulation Diameter (Max) | Material - Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Crimp | Black | 1.083 in | Copper | Free Hanging (In-Line) | 0.375 in | 8 Stud | Circular | Insulated | 12 AWG | 10 AWG | 0.039 in | Serrated Termination | Nickel | 0.102 in | 0.214 in | Polytetrafluoroethylene PTFE |
 TE Connectivity AMP Connectors | Crimp | Black | 1.083 in | Copper | Free Hanging (In-Line) | 0.375 in | 10 Stud | Circular | Insulated | 12 AWG | 10 AWG | 0.039 in | Serrated Termination | Nickel | 0.102 in | 0.214 in | Polytetrafluoroethylene PTFE |
