i.MX8X Series

Catalog

PROCESSORS - APPLICATION SPECIALIZED I.MX 8QUADXPLUS 17X17

Part	Co-Processors/DSP	Mounting Type	Package / Case	Ethernet Ports	Ethernet Speed Options	Bus Width	Number of Cores	USB	USB 2.0 PHY Count	USB 3.0 + PHY Count	Graphics Acceleration	Voltage - I/O (Option 3)	Voltage - I/O (Option 2)	Voltage - I/O (Option 1)	RAM Controllers	Speed	Display & Interface Controllers	Package Name	Package Width	Package Length	Core Processor	Additional Interfaces	Security Features

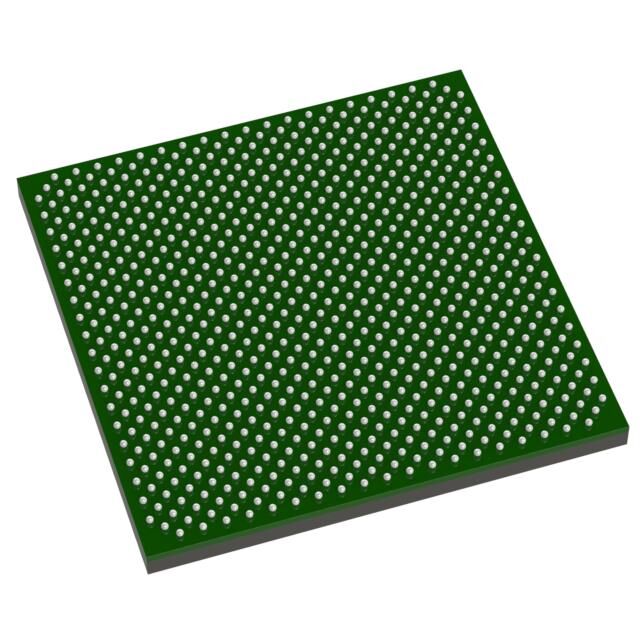

NXP USA Inc. MIMX8QX2FVOFZAC	Hi-Fi4 DSP Multimedia NEON	Surface Mount	417-BFBGA	2	1000Mbps 100Mbps 10Mbps	64 Bit	3 Core	USB 2.0 OTG + PHY USB 3.0 OTG + PHY	1 count	1 count	Yes	3.3 V	2.5 V	1.8 V	DDR3L SDRAM LPDDR4 DRAM	1.2 GHz 264 MHz	LCD LVDS MIPI-CSI MIPI-DSI	417-FBGA	17 mm	17 mm	ARM® Cortex®-A53 ARM® Cortex®-M4F
NXP USA Inc. MIMX8QX1FVLFZAC	Hi-Fi4 DSP Multimedia NEON	Surface Mount	609-BFBGA	2	1000Mbps 100Mbps 10Mbps	64 Bit	3 Core	USB 2.0 OTG + PHY USB 3.0 OTG + PHY	1 count	1 count	Yes	3.3 V	2.5 V	1.8 V	DDR3L SDRAM LPDDR4 DRAM	1.2 GHz 264 MHz	LCD LVDS MIPI-CSI MIPI-DSI	609-FBGA	21 mm	21 mm	ARM® Cortex®-A53 ARM® Cortex®-M4F	CANbus I2C MMC/SD/SDIO PCIe QSPI UART	3DES A-HAB ARM TZ CAAM DES MD5 SHA SNVS

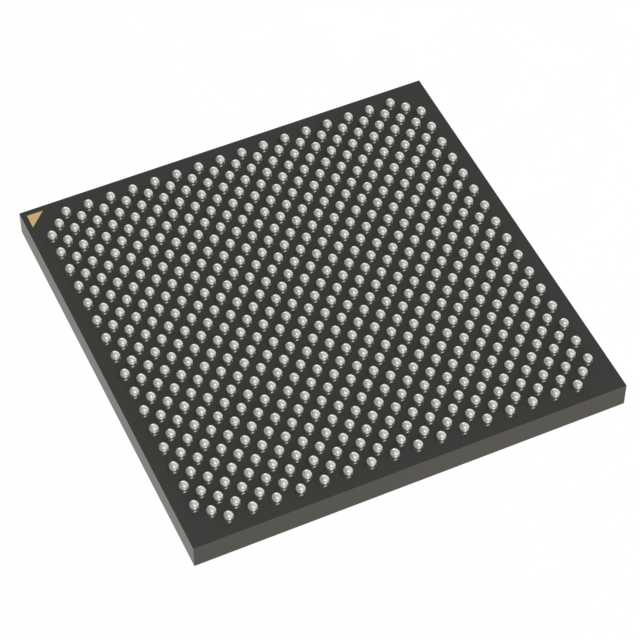

NXP USA Inc. MIMX8QX6AVLFZAC		Surface Mount	609-BFBGA															609-FBGA	21 mm	21 mm
