932SQL450 Series

Low-Power CK420BQ Derivative for PCIe Common Clock Architectures

Manufacturer: Renesas Electronics Corporation

Catalog

Low-Power CK420BQ Derivative for PCIe Common Clock Architectures

Part	Package Width	Package Name	Package Length	Frequency - Max	Differential Output	Differential Input	Operating Temperature (Max)	Operating Temperature (Min)	Package / Case	Number of Circuits	Output	Mounting Type	Multiplier	Divider	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Input Ratio	Output Ratio	PLL	Input	Main Purpose
Renesas Electronics Corporation 932SQL450BKLF	9 mm	64-VFQFPN	9 mm	100 MHz	Yes	No	70 °C	0 °C	64-VFQFN Exposed Pad	1	Clock	Surface Mount	No	Yes	3.135 V	3.465 V	1	19	Yes	Crystal
Renesas Electronics Corporation 932SQL450BKLFT	9 mm	64-VFQFPN	9 mm	100 MHz	Yes	No	70 °C	0 °C	64-VFQFN Exposed Pad	1	LP-HCSL	Surface Mount			3.135 V	3.465 V	1	19	Yes	Crystal	PCI Express (PCIe)

Catalog

Low-Power CK420BQ Derivative for PCIe Common Clock Architectures

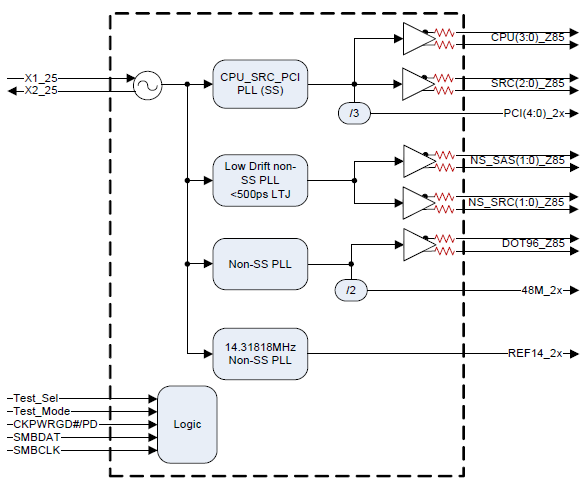

Description
