IXXP12N65B4D1 Series
Manufacturer: LITTELFUSE
Beta
⌘K

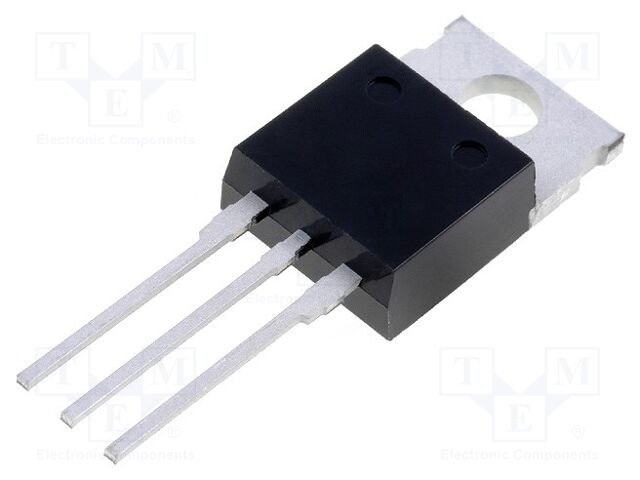

TRANSISTOR: IGBT; GENX4™; 650V; 12A; 160W; TO220-3
| Part | Test Condition Voltage (Secondary) | Test Condition Current | Test Condition Voltage | Test Condition Resistance | Package / Case | Voltage - Collector Emitter Breakdown (Max) | Vce(on) (Max) | Current - Collector (Ic) (Max) | Operating Temperature (Min) | Operating Temperature (Max) | Current - Collector Pulsed (Icm) | Power - Max | Td (on) @ 25°C | Td (off) @ 25°C | Reverse Recovery Time (trr) | Package Name | Switching Energy (On) | Switching Energy (Off) | Mounting Type | Gate Charge | Input Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 15 V | 12 A | 400 V | 20 Ohm | TO-220-3 | 650 V | 1.95 V | 38 A | -55 °C | 175 °C | 70 A | 160 W | 13 ns | 158 ns | 43 ns | TO-220-3 | 440 µJ | 220 µJ | Through Hole | 34 nC | Standard |
