640452 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN UNSHROUDED HEADER HDR 5 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE PACKAGE
| Part | Connector Type | Number of Rows | Contact Shape | Number of Positions Loaded | Operating Temperature (Min) | Operating Temperature (Max) | Insulation Material | Termination | Shrouding | Style | Pitch - Mating | Number of Positions | Contact Type | Current Rating | Current Rating | Material Flammability Rating | Insulation Height | Mounting Type | Voltage Rating | Contact Length - Post | Contact Finish - Mating | Contact Finish - Post | Contact Material | Overall Contact Length | Insulation Color | Contact Length - Mating | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Header | 1 | Square | All | -55 °C | 105 °C | Thermoplastic | Solder | Unshrouded | Board Cable/Wire | 0.1 in | 5 | Male Pin | 0 A | Varies by Wire Gauge | UL94 V-0 | 0.1 in | Through Hole | 250 V | 0.14 in | Tin | Tin | Copper Alloy | 0.535 in | Natural | 0.295 in | General Purpose |

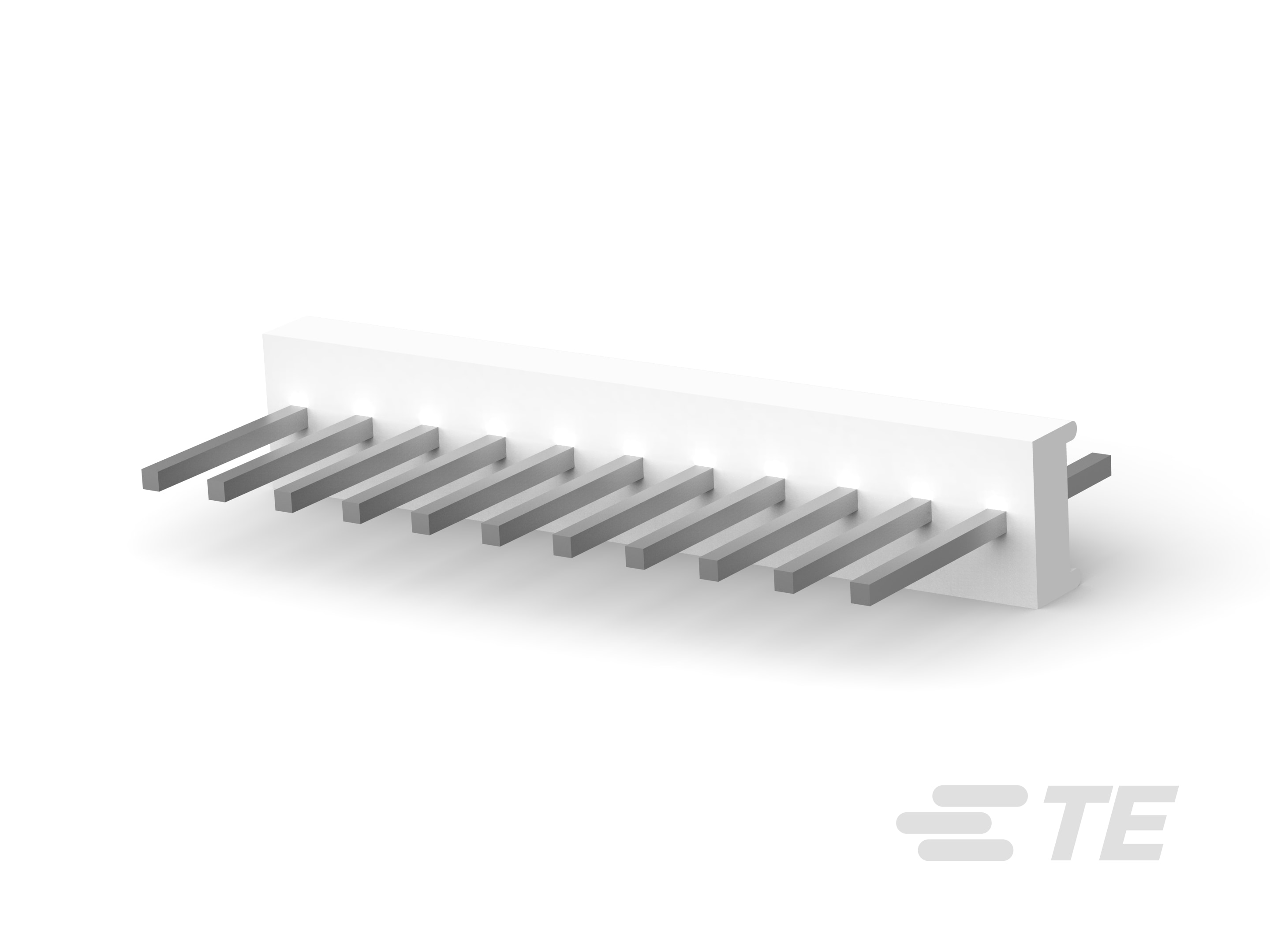

 TE Connectivity AMP Connectors | Header | 1 | Square | All | -55 °C | 105 °C | Thermoplastic | Solder | Unshrouded | Board Cable/Wire | 0.1 in | 11 | Male Pin | 0 A | Varies by Wire Gauge | UL94 V-0 | 0.1 in | Through Hole | 250 V | 0.14 in | Tin | Tin | Copper Alloy | 0.535 in | Natural | 0.295 in | General Purpose |

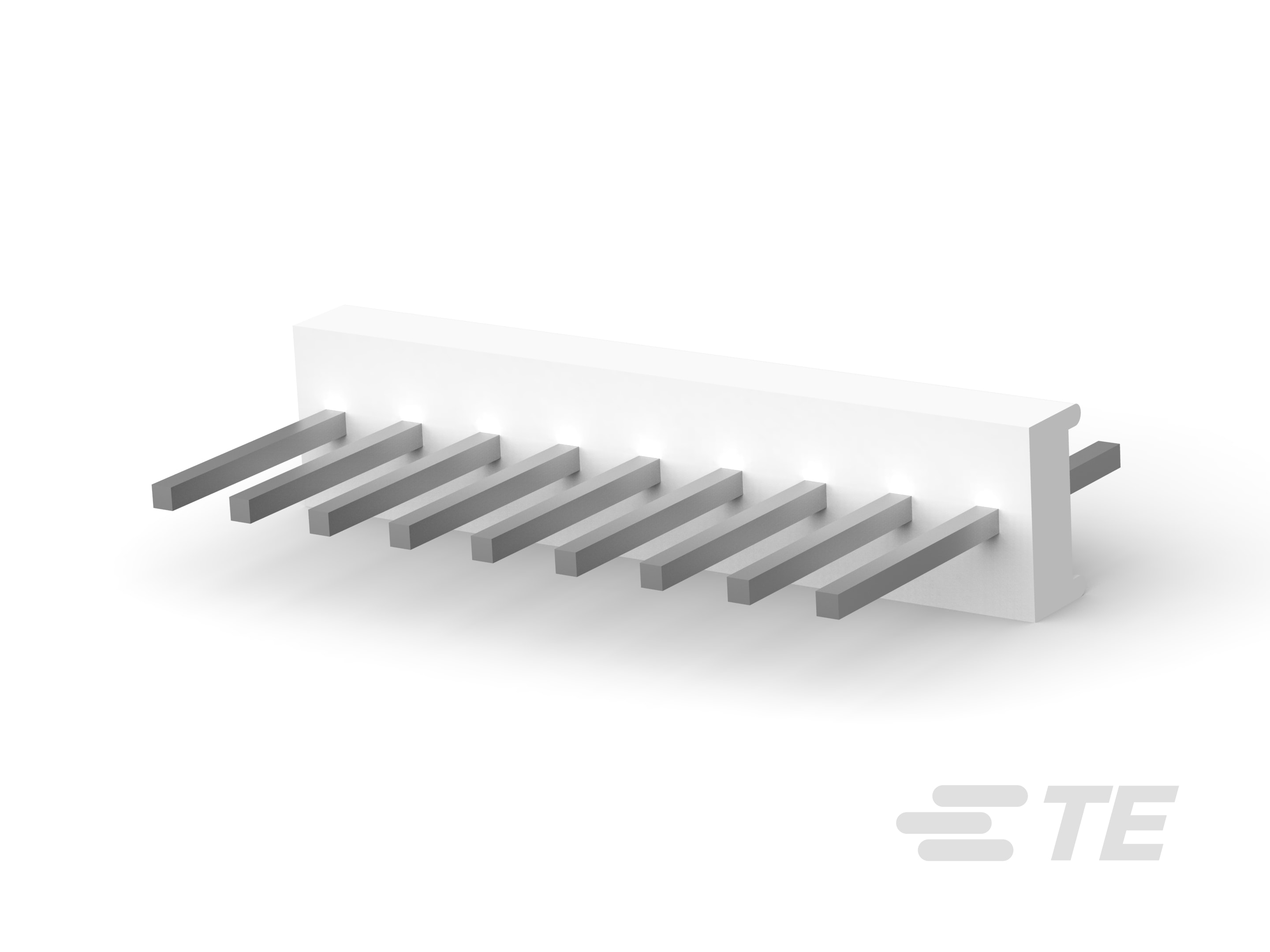

 TE Connectivity AMP Connectors | Header | 1 | Square | All | -55 °C | 105 °C | Thermoplastic | Solder | Unshrouded | Board Cable/Wire | 0.1 in | 9 | Male Pin | 0 A | Varies by Wire Gauge | UL94 V-0 | 0.1 in | Through Hole | 250 V | 0.14 in | Tin | Tin | Copper Alloy | 0.535 in | Natural | 0.295 in | General Purpose |

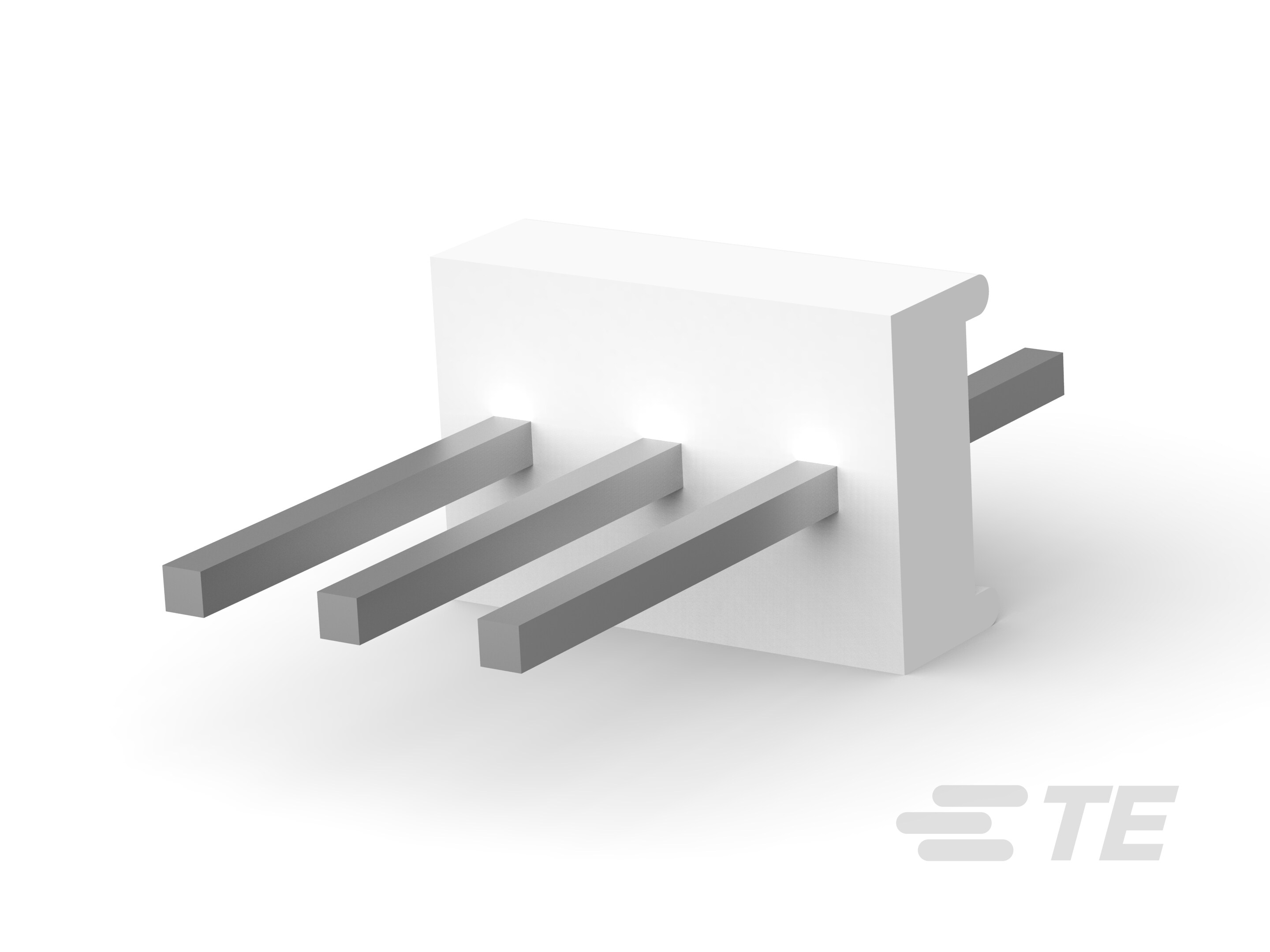

 TE Connectivity AMP Connectors | Header | 1 | Square | All | -55 °C | 105 °C | Thermoplastic | Solder | Unshrouded | Board Cable/Wire | 0.1 in | 3 | Male Pin | 0 A | Varies by Wire Gauge | UL94 V-0 | 0.1 in | Through Hole | 250 V | 0.14 in | Tin | Tin | Copper Alloy | 0.535 in | Natural | 0.295 in | General Purpose |
 TE Connectivity AMP Connectors | Header | 1 | Square | All | -55 °C | 105 °C | Thermoplastic | Solder | Unshrouded | Board Cable/Wire | 0.1 in | 2 | Male Pin | 0 A | Varies by Wire Gauge | UL94 V-0 | 0.1 in | Through Hole | 250 V | 0.14 in | Tin | Tin | Copper Alloy | 0.535 in | Natural | 0.295 in | General Purpose |

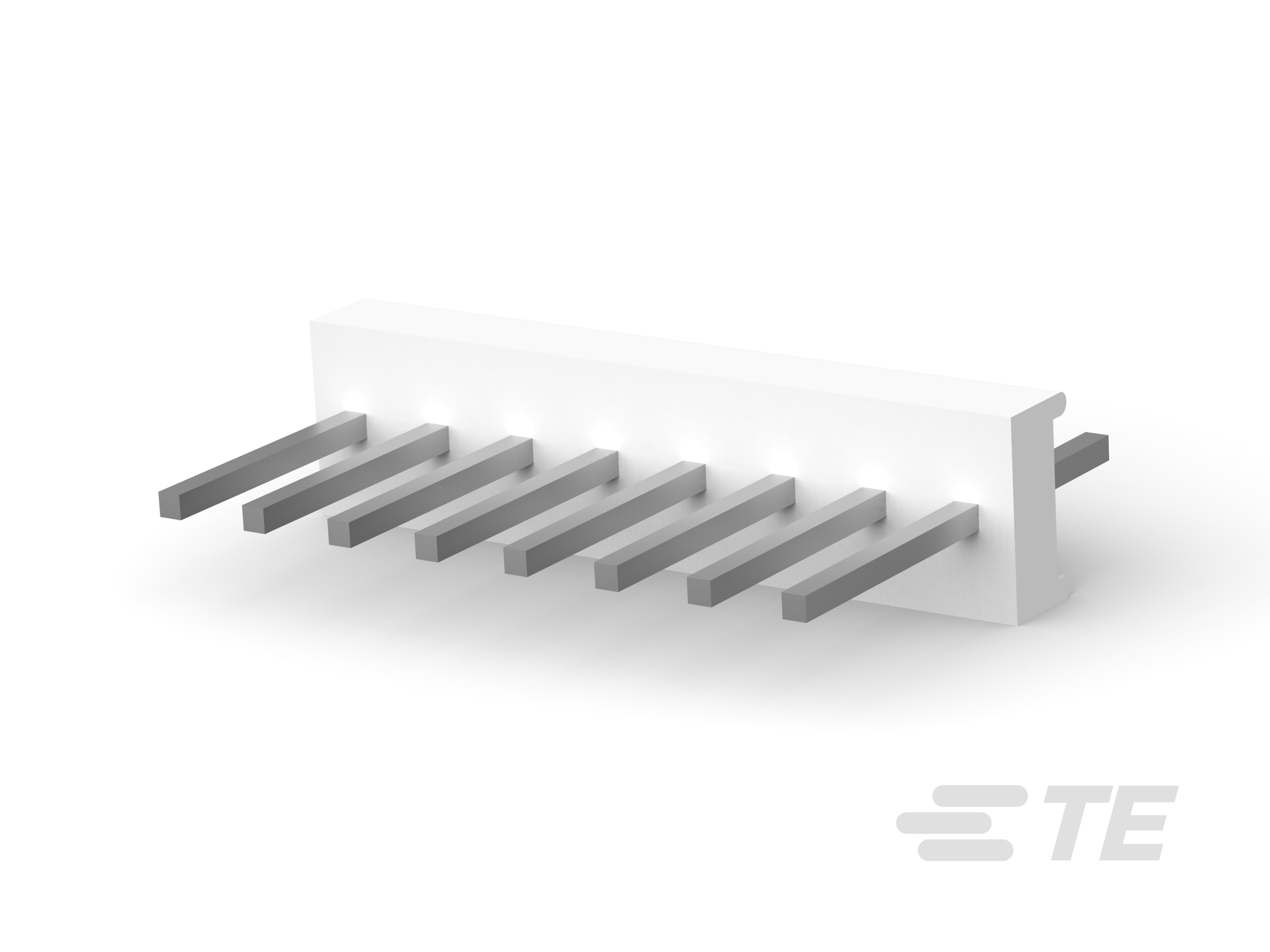

 TE Connectivity AMP Connectors | Header | 1 | Square | All | -55 °C | 105 °C | Thermoplastic | Solder | Unshrouded | Board Cable/Wire | 0.1 in | 8 | Male Pin | 0 A | Varies by Wire Gauge | UL94 V-0 | 0.1 in | Through Hole | 250 V | 0.14 in | Tin | Tin | Copper Alloy | 0.535 in | Natural | 0.295 in | General Purpose |
