176274 Series

Catalog

AMP UNIVERSAL POWER PLUG 6P

Part	Note	Color	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Number of Positions	Contact Termination	Contact Type	Connector Type	Insulation Material	Fastening Type	Number of Rows	Pitch	Row Spacing

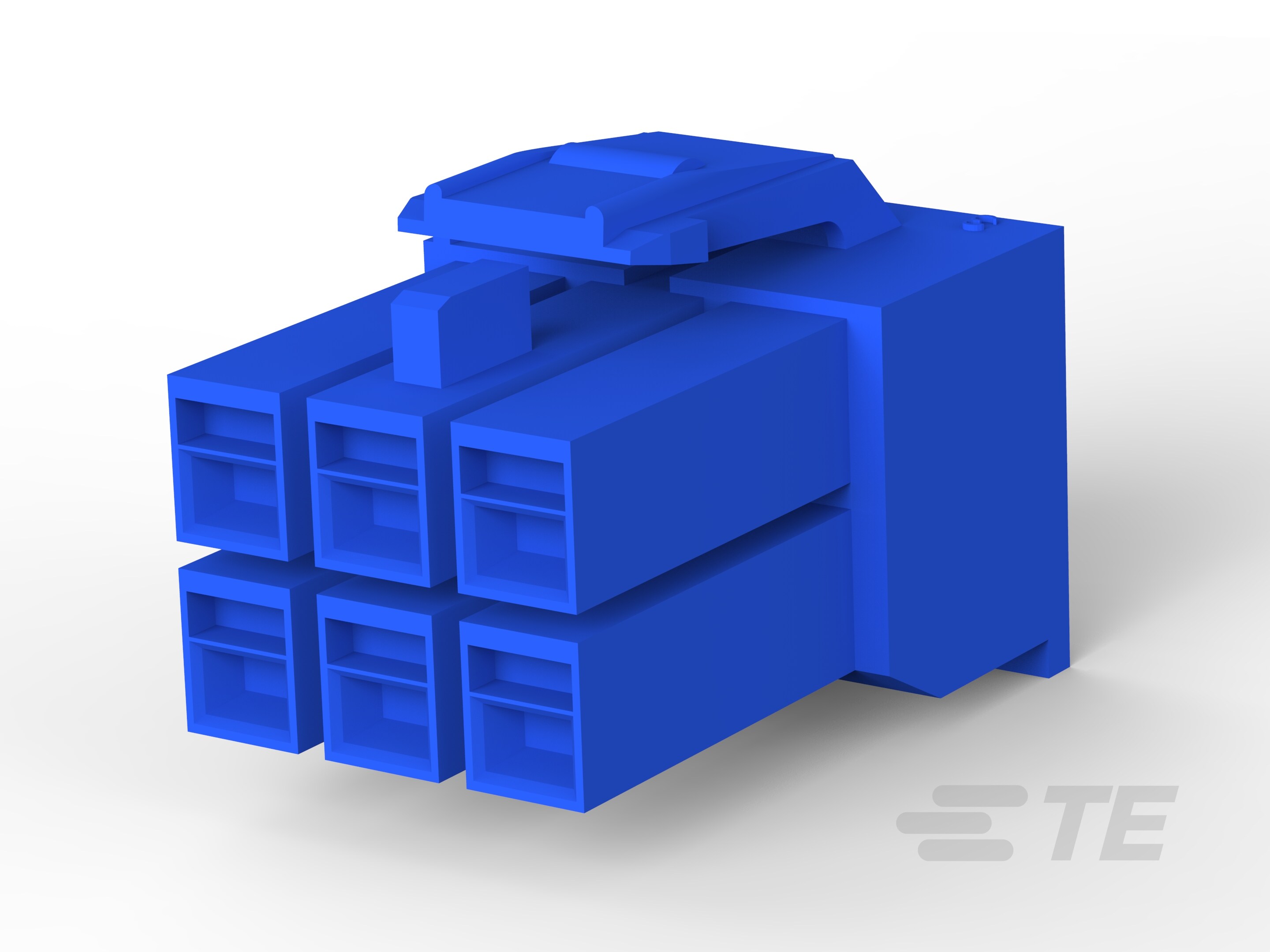

TE Connectivity AMP Connectors 176274-6	Contacts Not Included	Blue	-30 °C	105 °C	Free Hanging (In-Line)	6	Crimp	Female Socket	Plug	Nylon 6/6 Polyamide (PA66)	Latch Lock	2	0.156 in	0.181 in
TE Connectivity AMP Connectors 176274-2	Contacts Not Included	Red	-30 °C	105 °C	Free Hanging (In-Line)	6	Crimp	Female Socket	Plug	Nylon 6/6 Polyamide (PA66)	Latch Lock	2	0.156 in	0.181 in
TE Connectivity AMP Connectors 176274-4	Contacts Not Included	Yellow	-30 °C	105 °C	Free Hanging (In-Line)	6	Crimp	Female Socket	Plug	Nylon 6/6 Polyamide (PA66)	Latch Lock	2	0.156 in	0.181 in
TE Connectivity AMP Connectors 176274-9	Contacts Not Included	Black	-30 °C	105 °C	Free Hanging (In-Line)	6	Crimp	Female Socket	Plug	Nylon 6/6 Polyamide (PA66)	Latch Lock	2	0.156 in	0.181 in
