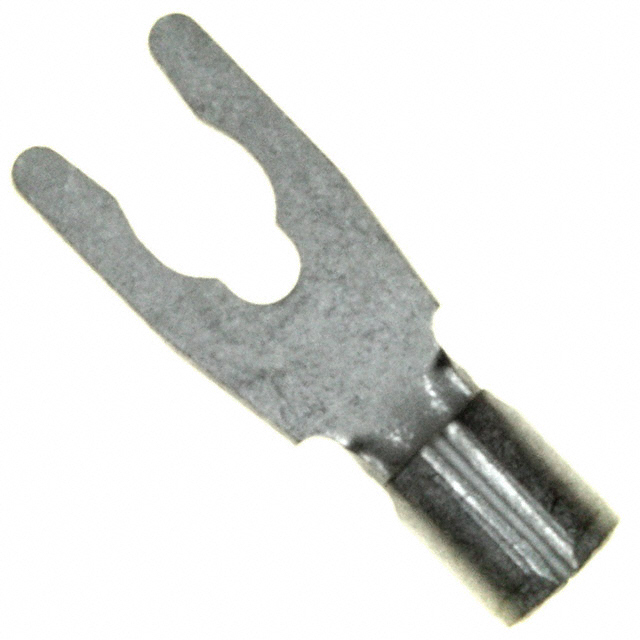

53175 Series

Catalog

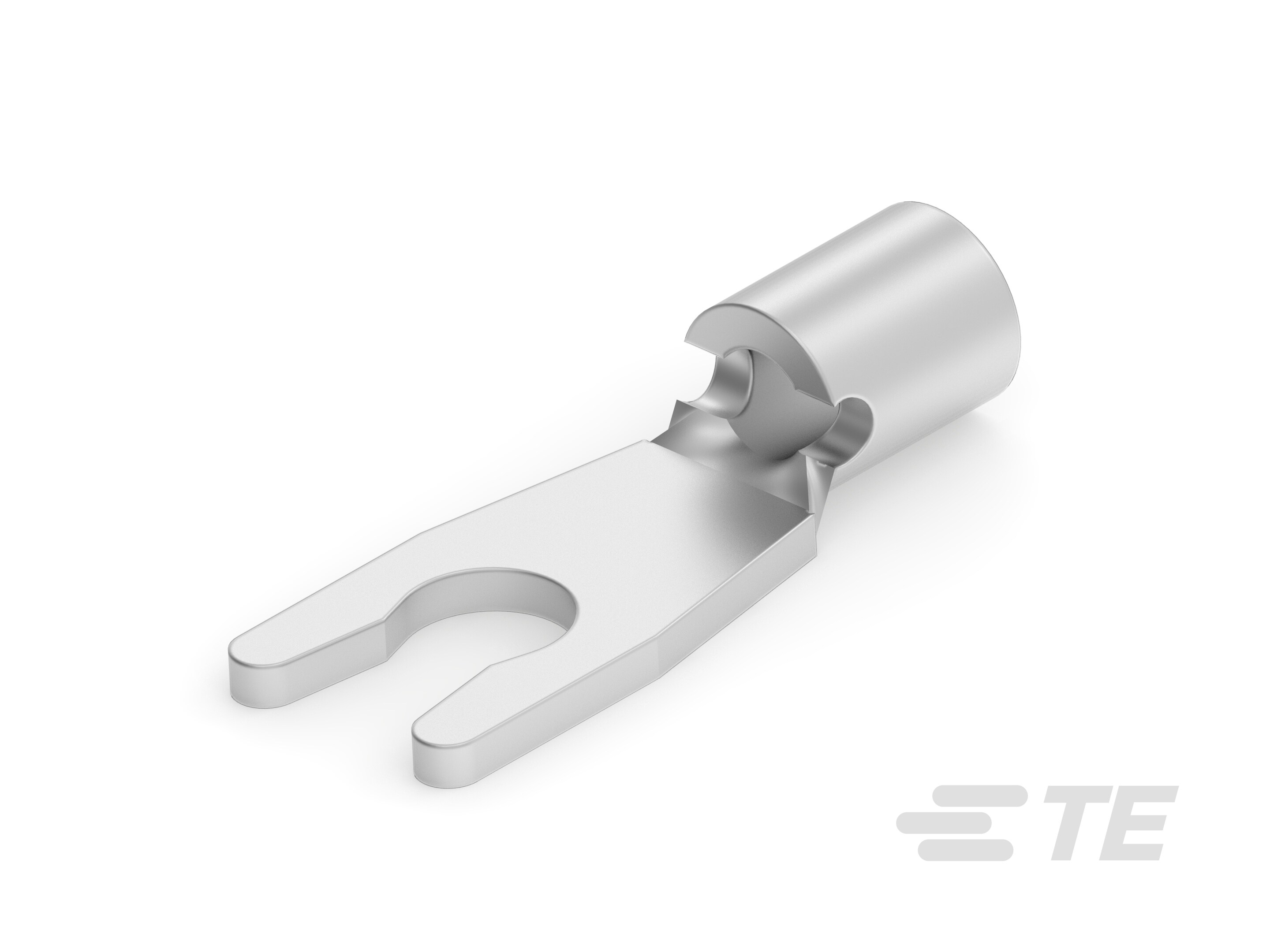

SOLIS SP SPD 22-16COM22-18MIL4

Part	Termination	Contact Finish	Features	Width - Outer Edges	Contact Material	Insulation	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Stud/Tab Size	Mounting Type	Terminal Type	Length - Overall	Length - Termination	Tongue Inside Opening	Length - Ring Center to Termination
TE Connectivity AMP Connectors 53175-1	Crimp	Tin	Brazed Seam Serrated Termination	0.203 in	Phosphor Bronze	Non-Insulated	16 AWG	22 AWG	4 Stud	Free Hanging (In-Line)	Snap Spring	0.576 in	0.181 in	0.112 in	0.25 in
TE Connectivity AMP Connectors 8-53175-1	Crimp	Tin	Brazed Seam Serrated Termination	0.203 in	Phosphor Bronze	Non-Insulated	16 AWG	22 AWG	4 Stud	Free Hanging (In-Line)	Snap Spring	0.576 in	0.181 in	0.112 in	0.25 in
