LPC54S016 Series

Catalog

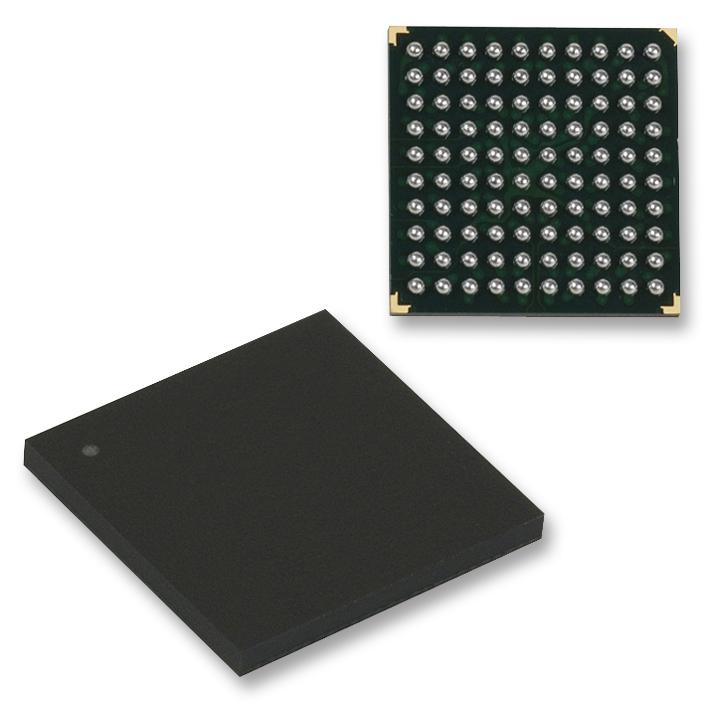

MCU 32-BIT LPC54S016 ARM CORTEX-M4 RISC ROM LESS 1.71V TO 3.6V 100-PIN TFBGA TRAY

Part	Oscillator Type	Mounting Type	Core Processor	Speed	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	Peripherals	Program Memory Type	RAM Size Depth	RAM Size Width	A/D Channels	A/D Resolution (bits)	Core Size (Bit Width)	Package / Case	Number of I/O	Connectivity	Operating Temperature (Max)	Operating Temperature (Min)	Package Length	Package Name	Package Width	Core Configuration	Converter Architecture
NXP USA Inc. LPC54S016JET100E	Internal	Surface Mount	ARM® Cortex®-M4	180 MHz	1.71 V	3.6 V	Brown-out Detect DMA I2S POR PWM Reset WDT	ROMless	360 K	8 bit	12 count	12 bit	32 Bit	100-TFBGA	64	CANbus EBI EMI Ethernet I2C MMC SD SDIO SmartCard SPI SPIFI UART USART USB	105 °C	-40 °C	9 mm	100-TFBGA	9 mm	Single-Core
NXP USA Inc. LPC54S016JBD100E	Internal	Surface Mount	ARM® Cortex®-M4	180 MHz	1.71 V	3.6 V	Brown-out Detect DMA I2S POR PWM Reset WDT	ROMless	360 K	8 bit	12 count	12 bit	32 Bit	100-LQFP	64	CANbus EBI EMI Ethernet I2C MMC SD SDIO SmartCard SPI SPIFI UART USART USB	105 °C	-40 °C	14 mm	100-LQFP	14 mm	Single-Core
NXP USA Inc. LPC54S016JBD100	Internal	Surface Mount	ARM® Cortex®-M4	180 MHz	1.71 V	3.6 V	Brown-out Detect DMA I2S POR PWM Reset WDT	ROMless	360 K	8 bit	12 count	12 bit	32 Bit	100-LQFP	64	CANbus EBI EMI Ethernet I2C MMC SD SDIO SmartCard SPI SPIFI UART USART USB	105 °C	-40 °C	14 mm	100-LQFP	14 mm	Single-Core
NXP USA Inc. LPC54S016JBD208E	Internal	Surface Mount	ARM® Cortex®-M4	180 MHz	1.71 V	3.6 V	Brown-out Detect DMA I2S POR PWM Reset WDT	ROMless	360 K	8 bit	12 count	12 bit	32 Bit	208-LQFP	171	CANbus EBI EMI Ethernet I2C MMC SD SDIO SmartCard SPI SPIFI UART USART USB	105 °C	-40 °C	28 mm	208-LQFP	28 mm	Single-Core
NXP USA Inc. LPC54S016JBD100Y	External Internal	Surface Mount	ARM® Cortex®-M4	180 MHz	1.71 V	3.6 V	Brown-out Detect DMA I2S LCD POR PWM Reset WDT	ROMless	360 K	8 bit	12 count	12 bit	32 Bit	100-LQFP	64	CANbus EBI EMI Ethernet I2C MMC SD SDIO SmartCard SPI SPIFI UART USART USB	105 °C	-40 °C	14 mm	100-LQFP	14 mm		SAR
NXP USA Inc. LPC54S016JET100E	External Internal	Surface Mount	ARM® Cortex®-M4	180 MHz	1.71 V	3.6 V	Brown-out Detect DMA I2S POR PWM Reset WDT	ROMless	360 K	8 bit	12 count	12 bit	32 Bit	100-TFBGA	64	CANbus EBI EMI Ethernet I2C MMC SD SDIO SmartCard SPI SPIFI UART USART USB	105 °C	-40 °C	9 mm	100-TFBGA	9 mm		SAR
