5767005 Series

Catalog

MICT,495PLUG,038,ASSY,.025,REC

Part	Height Above Board	Pitch	Contact Finish	Number of Rows	Mated Stacking Height Options	Number of Positions	Mounting Type	Features	Contact Finish Thickness	Connector Type

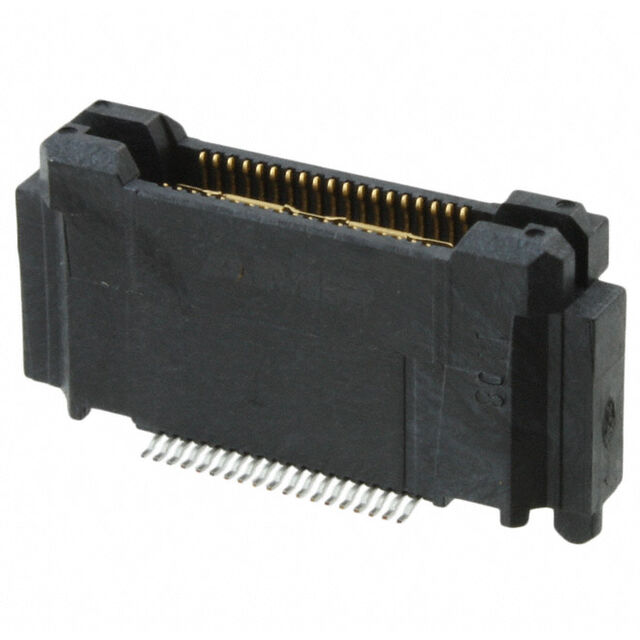

TE Connectivity AMP Connectors 5767005-8	0.484 in	0.025 in	Gold	2	12.57mm 21.6mm	38	Surface Mount	Board Guide Ground Bus (Plane)	30 µin	Outer Shroud Contacts Plug

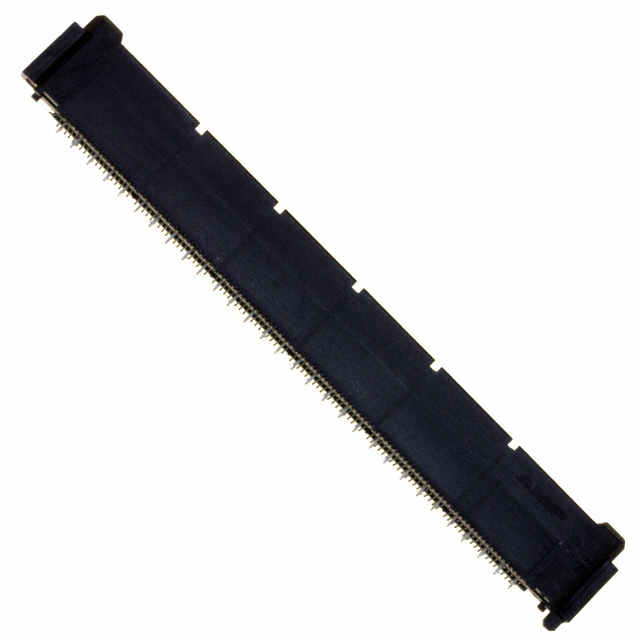

TE Connectivity AMP Connectors 1-5767005-3	0.484 in	0.025 in	Gold	2	12.57mm 21.6mm	228	Surface Mount	Board Guide Ground Bus (Plane)	30 µin	Outer Shroud Contacts Plug

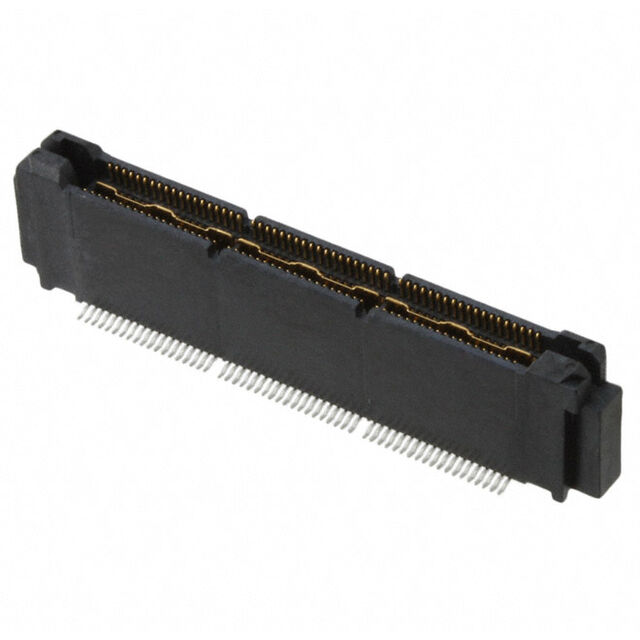

TE Connectivity AMP Connectors 1-5767005-0	0.484 in	0.025 in	Gold	2	12.57mm 21.6mm	114	Surface Mount	Board Guide Ground Bus (Plane)	30 µin	Outer Shroud Contacts Plug

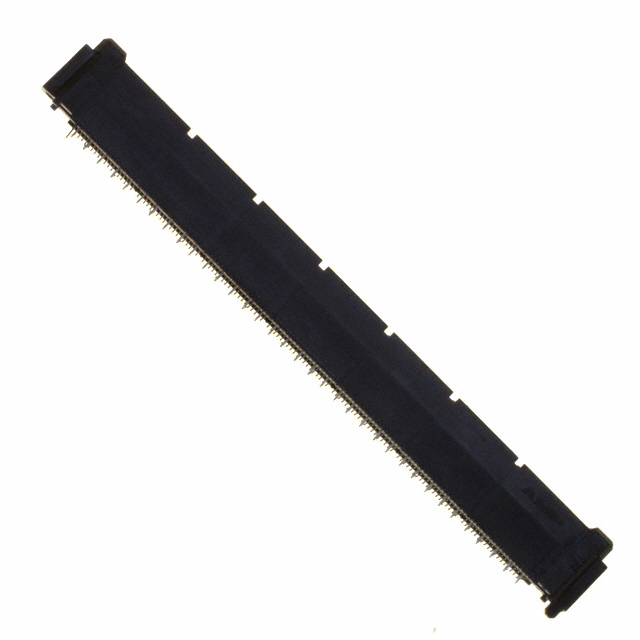

TE Connectivity AMP Connectors 1-5767005-4	0.484 in	0.025 in	Gold	2	12.57mm 21.6mm	266	Surface Mount	Board Guide Ground Bus (Plane)	30 µin	Outer Shroud Contacts Plug
TE Connectivity AMP Connectors 1-5767005-2	0.484 in	0.025 in	Gold	2	12.57mm 21.6mm	190	Surface Mount	Board Guide Ground Bus (Plane)	30 µin	Outer Shroud Contacts Plug
