60884 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

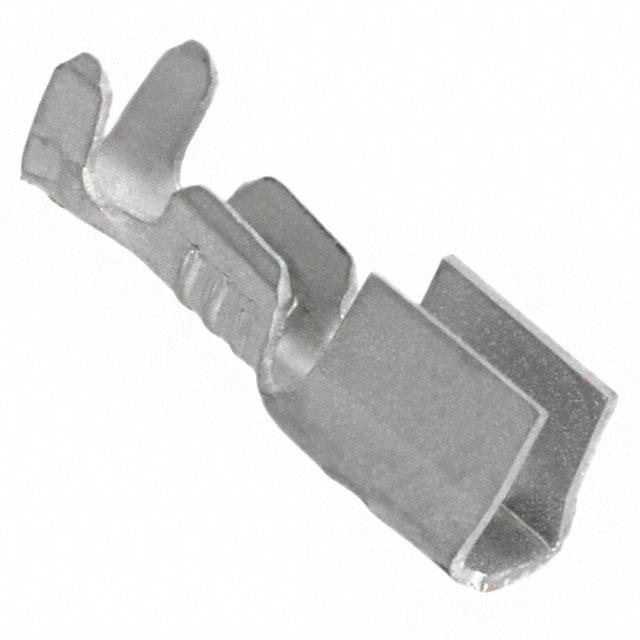

PIN REC 22-18 0126TPBR ROHS COMPLIANT: YES
| Part | Insulation Diameter | Contact Finish | Terminal Type | Wire Gauge (AWG) (Min) | Wire Gauge (AWG) (Max) | Termination | Insulation | Diameter - Barrel | Contact Material | Length - Overall |
|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.1 in | Tin | Female Receptacle (Socket) | 18 AWG | 22 AWG | Crimp | Non-Insulated | 0.093 in | Brass | 0.48 in |
