413558 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

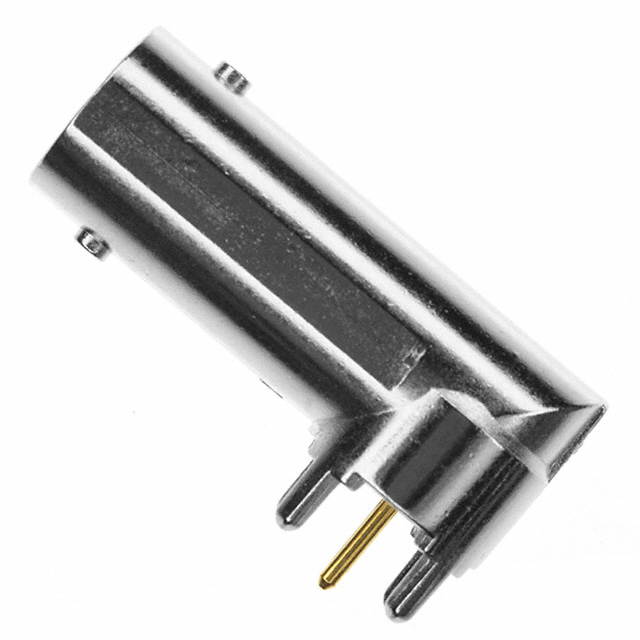

CONN BNC JACK R/A 75 OHM PCB
| Part | Body Finish | Operating Temperature (Min) | Operating Temperature (Max) | Mating Cycles | Center Contact Plating | Body Material | Dielectric Material | Voltage Rating | Center Contact Material | Frequency - Max | Contact Termination | Impedance | Housing Color | Connector Style | Mounting Type | Fastening Type | Number of Ports | Shield Termination | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Nickel | -55 °C | 85 °C | 500 cycles | Gold | Zinc | Polymethylpentene (PMP) Polytetrafluoroethylene (PTFE) | 500 V | Beryllium Copper | 2 GHz | Solder | 75 Ohm | Silver | BNC | Right Angle Through Hole | Bayonet Lock | 1 | Solder | Female Socket Jack |
 TE Connectivity AMP Connectors | Nickel | -55 °C | 85 °C | 500 cycles | Gold | Zinc | Polymethylpentene (PMP) | 500 V | Beryllium Copper | 2 GHz | Solder | 75 Ohm | Silver | BNC | Right Angle Through Hole | Bayonet Lock | 1 | Solder | Female Socket Jack |
