63628 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

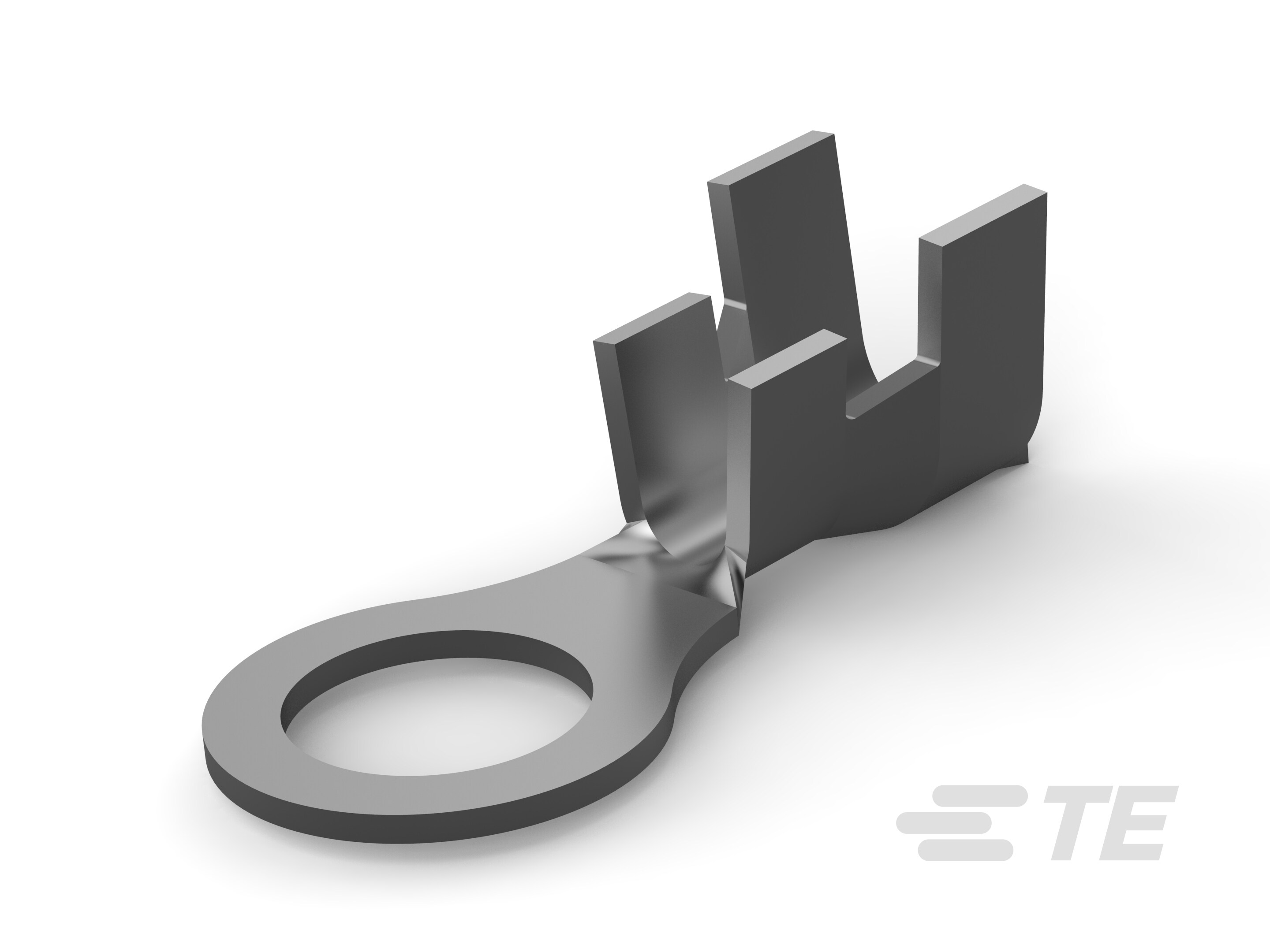

RING IS 18-14 0198 PTPBR ROHS COMPLIANT: YES
| Part | Insulation Diameter (Max) | Insulation Diameter (Min) | Mounting Type | Terminal Type | Wire Gauge (AWG) (Max) | Wire Gauge (AWG) (Min) | Thickness | Termination | Insulation | Stud/Tab Size | Width - Outer Edges | Contact Finish | Length - Overall | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.17 in | 0.12 in | Free Hanging (In-Line) | Circular | 18 AWG | 14 AWG | 0.02 in | Crimp | Non-Insulated | 10 Stud | 0.296 in | Tin | 0.64 in | Brass |
