747913 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

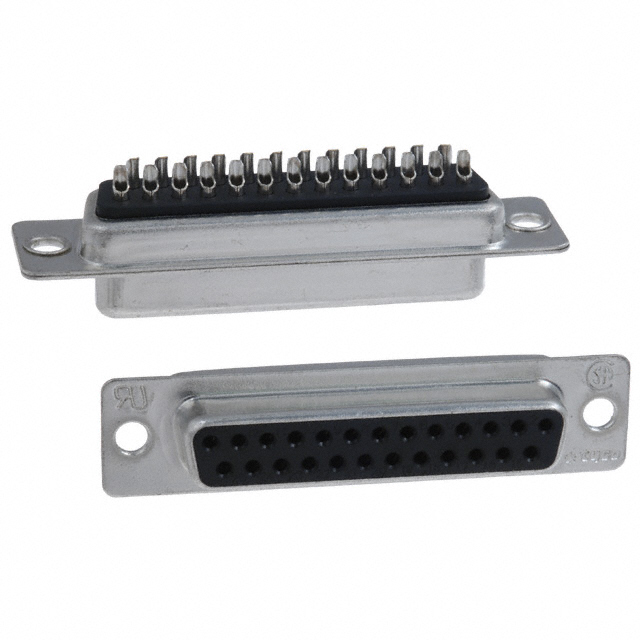

CONN D-SUB RCPT 25POS SLDR CUP
| Part | Contact Material | Contact Finish | Flange Feature | Connector Type | Contact Type | Voltage Rating | Dielectric Material | Color | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Material Flammability Rating | Connector Style | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Brass | Gold | Housing/Shell (Unthreaded) | Receptacle Female Sockets | Signal | 250 VDC | Polybutylene Terephthalate (PBT) Glass Filled | Black | 2 | 8 çin | 0.203 çm | Free Hanging (In-Line) | B DB | 3 | UL94 V-0 | D-Sub | 3 A | 105 ░C | -55 °C |
TE Connectivity Raychem Cable Protection | Brass | Gold | Housing/Shell (Unthreaded) | Receptacle Female Sockets | Signal | 250 VDC | Polybutylene Terephthalate (PBT) Glass Filled | Black | 2 | 8 çin | 0.203 çm | Free Hanging (In-Line) | B DB | 3 | UL94 V-0 | D-Sub | 3 A | 105 ░C | -55 °C |
