MTC2S24 Series

Catalog

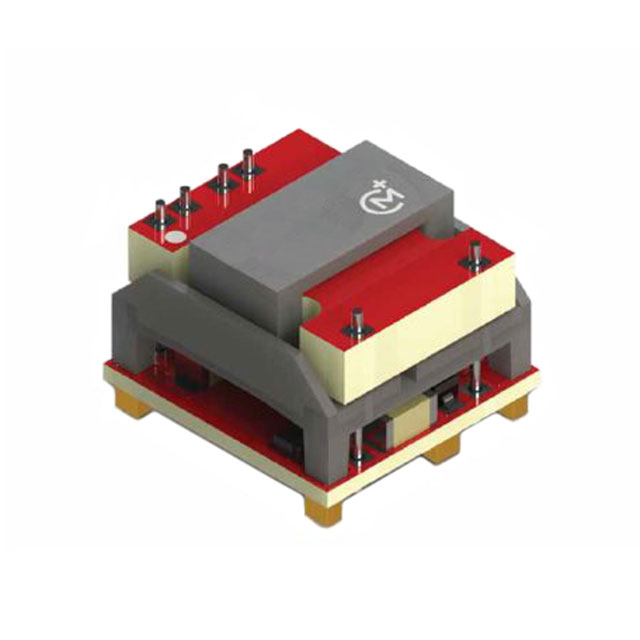

ISOLATED SURFACE MOUNT DC/DC CONVERTER, ITE, 2:1, 2 W, 1 OUTPUT, 12 V, 167 MA

Part	Voltage - Isolation	Package / Case	Mounting Type	Number of Outputs	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Input (Min)	Type	Efficiency	Size / Dimension Length	Size / Dimension Width	Size / Dimension Height	Power (Watts)	Voltage - Input (Max)	Current - Output (Max)	Applications	Features	Voltage - Output 1
Murata Electronics MTC2S2412MC-R13	3 kV	6-SMD Module	Surface Mount	1	-40 °C	105 °C	18 V	Isolated Module	81.5 %	0.59 in	0.56 in	0.44 in	2 w	36 V	167 mA	ITE (Commercial) Medical	Remote On/Off SCP	12 V
Murata Electronics MTC2S2412MC-R7	3 kV	6-SMD Module	Surface Mount	1	-40 °C	105 °C	18 V	Isolated Module	81.5 %	0.59 in	0.56 in	0.44 in	2 w	36 V	167 mA	ITE (Commercial) Medical	Remote On/Off SCP	12 V
Murata Electronics MTC2S2405MC-R13	3 kV	6-SMD Module	Surface Mount	1	-40 °C	105 °C	18 V	Isolated Module	79.5 %	0.59 in	0.56 in	0.44 in	2 w	36 V	400 mA	ITE (Commercial) Medical	Remote On/Off SCP	5 V
