35605 Series

Catalog

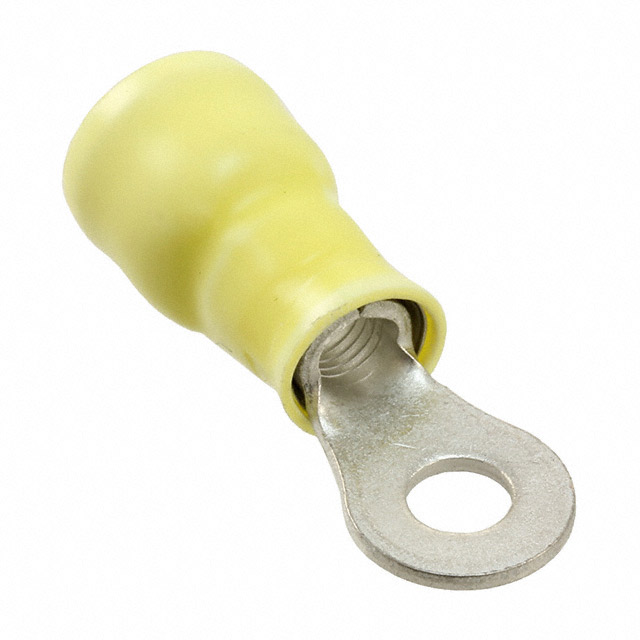

RING TONGUE TERMINAL 10-12AWG COPPER YELLOW 29.77MM TIN T/R

Part	Color	Width - Outer Edges	Length - Overall	Mounting Type	Contact Finish	Thickness	Termination	Stud/Tab Size	Features	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Insulation	Contact Material	Terminal Type	Insulation Diameter (Max)	Insulation Diameter (Min)	Material - Insulation
TE Connectivity AMP Connectors 2-35605-2	Yellow	0.375 in	1.172 in	Free Hanging (In-Line)	Tin	0.04 in	Crimp	8 Stud	Serrated Termination	12 AWG	10 AWG	Insulated	Copper	Circular	0.3 in	0.17 in	Poly-Vinyl Chloride PVC
TE Connectivity AMP Connectors 8-35605-2	Yellow	0.375 in	1.172 in	Free Hanging (In-Line)	Tin	0.04 in	Crimp	8 Stud	Serrated Termination	12 AWG	10 AWG	Insulated	Copper	Circular	0.3 in	0.17 in	Poly-Vinyl Chloride PVC
