019274 Series

Manufacturer: Molex

Catalog

CONN QC RCPT 18-22AWG 0.250

Part	Termination	Tab Width	Gender	Mounting Type	Tab Thickness	Color	Contact Finish	Terminal Type	Length - Overall	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Tab Length	Insulation	Contact Material	Insulation Diameter
Molex 0192740002	Crimp	0.25 in	Female	Free Hanging (In-Line)	0.032 in	Red	Tin	Standard	0.87 in	18 AWG	22 AWG	0.311 in	Non-Mating End Insulated	Brass	0.13 in
Molex 0192740005	Crimp	0.25 in	Female	Free Hanging (In-Line)	0.032 in	Blue	Tin	Standard	0.87 in	14 AWG	16 AWG	0.311 in	Non-Mating End Insulated	Brass	0.14 in
Molex 0192740006	Crimp	0.25 in	Female	Free Hanging (In-Line)	0.032 in	Blue	Tin	Standard	0.87 in	14 AWG	16 AWG	0.31 in	Non-Mating End Insulated	Brass	0.14 in
Molex 0192740003	Crimp	0.25 in	Female	Free Hanging (In-Line)	0.032 in	Red	Tin	Standard	0.87 in	18 AWG	22 AWG	0.31 in	Non-Mating End Insulated	Brass	0.13 in

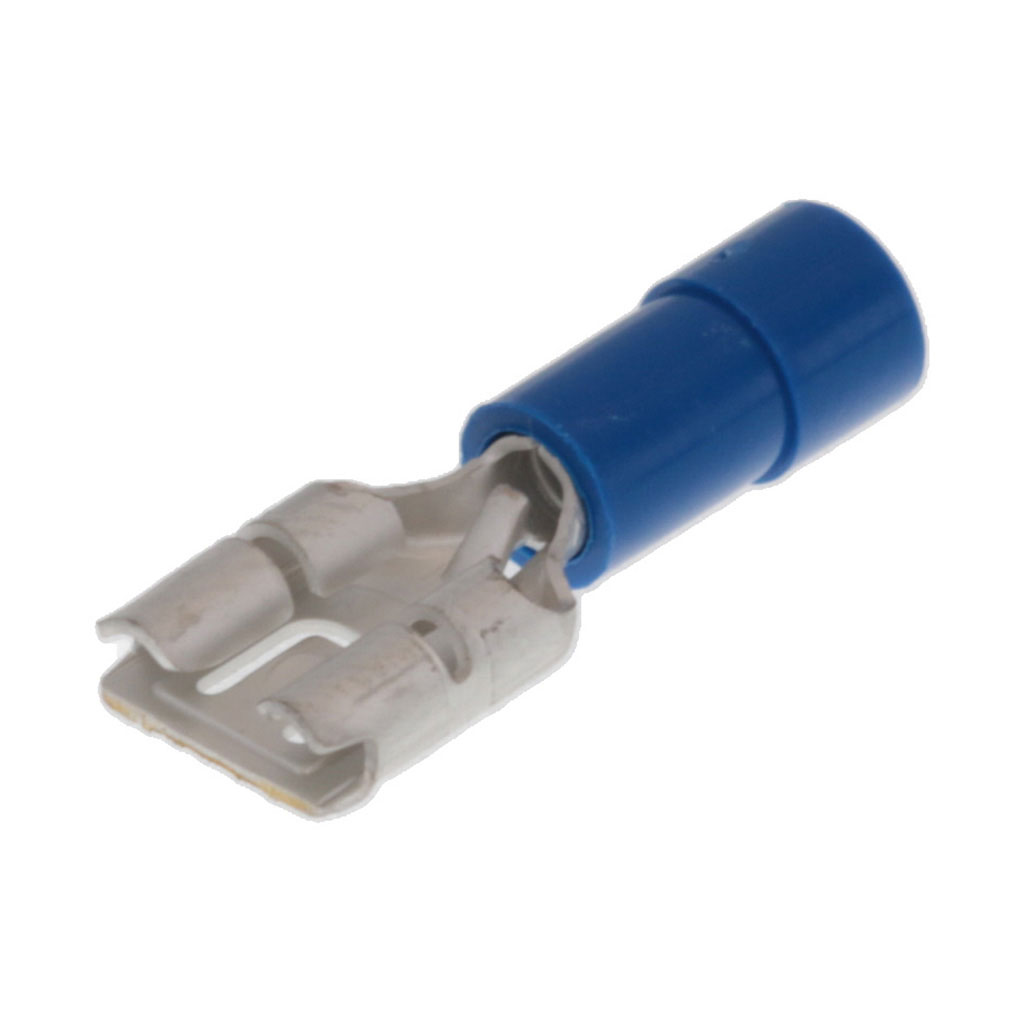

Molex 0192740004	Crimp	0.25 in	Female	Free Hanging (In-Line)	0.032 in	Blue	Tin	Standard	0.87 in	14 AWG	16 AWG	0.31 in	Non-Mating End Insulated	Brass	0.14 in
