75168 Series

Catalog

CONN HEADER R/A 7POS 2.54MM

...

Part	Material Flammability Rating	Contact Material	Shrouding	Contact Type	Number of Rows	Contact Length - Post	Contact Length - Mating	Insulation Height	Contact Finish - Mating	Connector Type	Fastening Type	Number of Positions	Number of Positions Loaded	Contact Finish Thickness - Mating	Termination	Mounting Type	Insulation Material	Insulation Color	Style	Pitch - Mating	Contact Shape	Contact Finish - Post	Contact Finish Thickness - Post
Amphenol ICC (FCI) 75168-313-07	UL94 V-0	Phosphor Bronze	Unshrouded	Male Pin	1	0.136 in	0.225 in	0.11 in	Tin-Lead	Header	Push-Pull	7	All	150 µin	Solder	Right Angle Through Hole	Thermoplastic	Black	Board	0.1 in	Square
Amphenol ICC (FCI) 75168-107-05LF	UL94 V-0	Phosphor Bronze	Unshrouded	Male Pin	1	0.201 in	0.225 in	0.059 in	Gold GXT™	Header	Push-Pull	5	All	30 µin	Solder	Right Angle Through Hole	Thermoplastic	Black	Board	0.1 in	Square	Gold GXT™	30 µin
Amphenol ICC (FCI) 75168-102-08LF	UL94 V-0	Phosphor Bronze	Unshrouded	Male Pin	1	0.201 in	0.225 in	0.11 in	Gold GXT™	Header	Push-Pull	8	All	30 µin	Solder	Right Angle Through Hole	Thermoplastic	Black	Board	0.1 in	Square
Amphenol ICC (FCI) 75168-319-36	UL94 V-0	Phosphor Bronze	Unshrouded	Male Pin	1	0.12 in	0.225 in	0.11 in	Tin-Lead	Header	Push-Pull	36	All	150 µin	Solder	Right Angle Through Hole	Thermoplastic	Black	Board	0.1 in	Square
Amphenol ICC (FCI) 75168-114-36	UL94 V-0	Phosphor Bronze	Unshrouded	Male Pin	1	0.236 in	0.225 in	0.11 in	Gold GXT™	Header	Push-Pull	36	All	30 µin	Solder	Right Angle Through Hole	Thermoplastic	Black	Board	0.1 in	Square
Amphenol ICC (FCI) 75168-313-36	UL94 V-0	Phosphor Bronze	Unshrouded	Male Pin	1	0.136 in	0.225 in	0.11 in	Tin-Lead	Header	Push-Pull	36	All	150 µin	Solder	Right Angle Through Hole	Thermoplastic	Black	Board	0.1 in	Square
Amphenol ICC (FCI) 75168-113-02LF	UL94 V-0	Phosphor Bronze	Unshrouded	Male Pin	1	0.136 in	0.225 in	0.11 in	Gold GXT™	Header	Push-Pull	2	All	30 µin	Solder	Right Angle Through Hole	Thermoplastic	Black	Board	0.1 in	Square

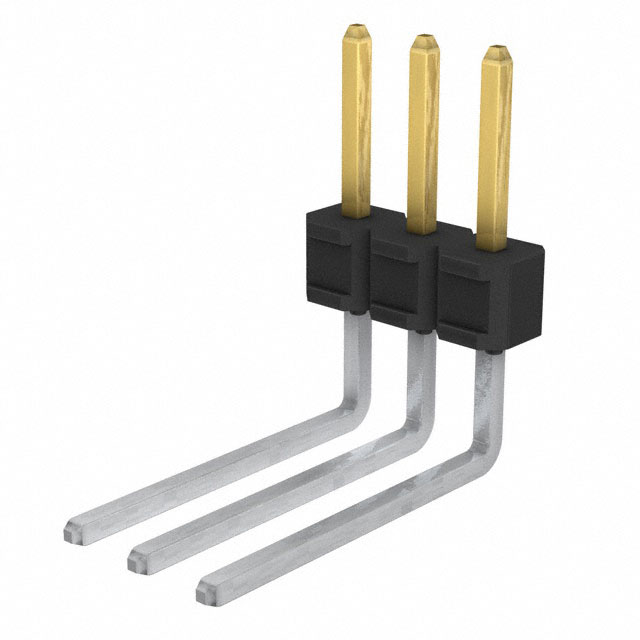

Amphenol ICC (FCI) 75168-109-03LF	UL94 V-0	Phosphor Bronze	Unshrouded	Male Pin	1	0.401 in	0.225 in	0.11 in	Gold GXT™	Header	Push-Pull	3	All	30 µin	Solder	Right Angle Through Hole	Thermoplastic	Black	Board	0.1 in	Square
Amphenol ICC (FCI) 75168-308-03LF	UL94 V-0	Phosphor Bronze	Unshrouded	Male Pin	1	0.301 in	0.225 in	0.11 in	Tin	Header	Push-Pull	3	All	78.7 Ąin	Solder	Right Angle Through Hole	Thermoplastic	Black	Board	0.1 in	Square
Amphenol ICC (FCI) 75168-102-36LF	UL94 V-0	Phosphor Bronze	Unshrouded	Male Pin	1	0.201 in	0.225 in	0.11 in	Gold GXT™	Header	Push-Pull	36	All	30 µin	Solder	Right Angle Through Hole	Thermoplastic	Black	Board	0.1 in	Square
