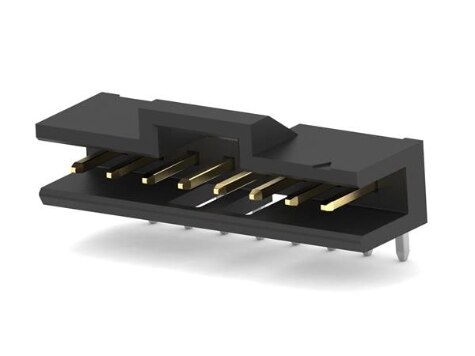

2823404 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

13P,2MM,PL HDR,SRRT,2.8,0.38AU,T

Part	Shrouding	Insulation Height	Contact Finish Thickness - Mating	Number of Rows	Contact Shape	Mounting Type	Contact Finish - Mating	Fastening Type	Pitch - Mating	Voltage Rating	Voltage Rating (Type)	Termination	Contact Length - Post	Current Rating	Insulation Material	Insulation Color	Number of Positions Loaded	Number of Positions	Contact Length - Mating	Material Flammability Rating	Operating Temperature (Max)	Operating Temperature (Min)	Style	Contact Material	Contact Type	Connector Type	Contact Finish - Post	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 1-2823404-3	Shrouded - 2 Wall	0.303 in	15 µin	1	Square	Right Angle Through Hole	Gold	Latch Holder	0.079 in	125 V	DC	Solder	0.11 in	2 A	Thermoplastic	Black	All	13	0.157 in	UL94 V-0	125 °C	-40 °C	Board Board or Cable	Phosphor Bronze	Male Pin	Header	Tin	157.5 Ąin
TE Connectivity AMP Connectors 2823404-6	Shrouded - 2 Wall	0.303 in	15 µin	1	Square	Right Angle Through Hole	Gold	Latch Holder	0.079 in	125 V	DC	Solder	0.11 in	2 A	Thermoplastic	Black	All	6	0.157 in	UL94 V-0	125 °C	-40 °C	Board Board or Cable	Phosphor Bronze	Male Pin	Header	Tin	157.5 Ąin
TE Connectivity AMP Connectors 2823404-8	Shrouded - 2 Wall	0.303 in	15 µin	1	Square	Right Angle Through Hole	Gold	Latch Holder	0.079 in	125 V	DC	Solder	0.11 in	2 A	Thermoplastic	Black	All	8	0.157 in	UL94 V-0	125 °C	-40 °C	Board Board or Cable	Phosphor Bronze	Male Pin	Header	Tin	157.5 Ąin
TE Connectivity AMP Connectors 2823404-5	Shrouded - 2 Wall	0.303 in	15 µin	1	Square	Right Angle Through Hole	Gold	Latch Holder	0.079 in	125 V	DC	Solder	0.11 in	2 A	Thermoplastic	Black	All	5	0.157 in	UL94 V-0	125 °C	-40 °C	Board Board or Cable	Phosphor Bronze	Male Pin	Header	Tin	157.5 Ąin
TE Connectivity AMP Connectors 2823404-3	Shrouded - 2 Wall	0.303 in	15 µin	1	Square	Right Angle Through Hole	Gold	Latch Holder	0.079 in	125 V	DC	Solder	0.11 in	2 A	Thermoplastic	Black	All	3	0.157 in	UL94 V-0	125 °C	-40 °C	Board Board or Cable	Phosphor Bronze	Male Pin	Header	Tin	157.5 Ąin
TE Connectivity AMP Connectors 2823404-7	Shrouded - 2 Wall	0.303 in	15 µin	1	Square	Right Angle Through Hole	Gold	Latch Holder	0.079 in	125 V	DC	Solder	0.11 in	2 A	Thermoplastic	Black	All	7	0.157 in	UL94 V-0	125 °C	-40 °C	Board Board or Cable	Phosphor Bronze	Male Pin	Header	Tin	157.5 Ąin
TE Connectivity AMP Connectors 2823404-9	Shrouded - 2 Wall	0.303 in	15 µin	1	Square	Right Angle Through Hole	Gold	Latch Holder	0.079 in	125 V	DC	Solder	0.11 in	2 A	Thermoplastic	Black	All	9	0.157 in	UL94 V-0	125 °C	-40 °C	Board Board or Cable	Phosphor Bronze	Male Pin	Header	Tin	157.5 Ąin
TE Connectivity AMP Connectors 1-2823404-0	Shrouded - 2 Wall	0.303 in	15 µin	1	Square	Right Angle Through Hole	Gold	Latch Holder	0.079 in	125 V	DC	Solder	0.11 in	2 A	Thermoplastic	Black	All	10	0.157 in	UL94 V-0	125 °C	-40 °C	Board Board or Cable	Phosphor Bronze	Male Pin	Header	Tin	157.5 Ąin
TE Connectivity AMP Connectors 1-2823404-1	Shrouded - 2 Wall	0.303 in	15 µin	1	Square	Right Angle Through Hole	Gold	Latch Holder	0.079 in	125 V	DC	Solder	0.11 in	2 A	Thermoplastic	Black	All	11	0.157 in	UL94 V-0	125 °C	-40 °C	Board Board or Cable	Phosphor Bronze	Male Pin	Header	Tin	157.5 Ąin
TE Connectivity AMP Connectors 1-2823404-5	Shrouded - 2 Wall	0.303 in	15 µin	1	Square	Right Angle Through Hole	Gold	Latch Holder	0.079 in	125 V	DC	Solder	0.11 in	2 A	Thermoplastic	Black	All	15	0.157 in	UL94 V-0	125 °C	-40 °C	Board Board or Cable	Phosphor Bronze	Male Pin	Header	Tin	157.5 Ąin
