52045 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

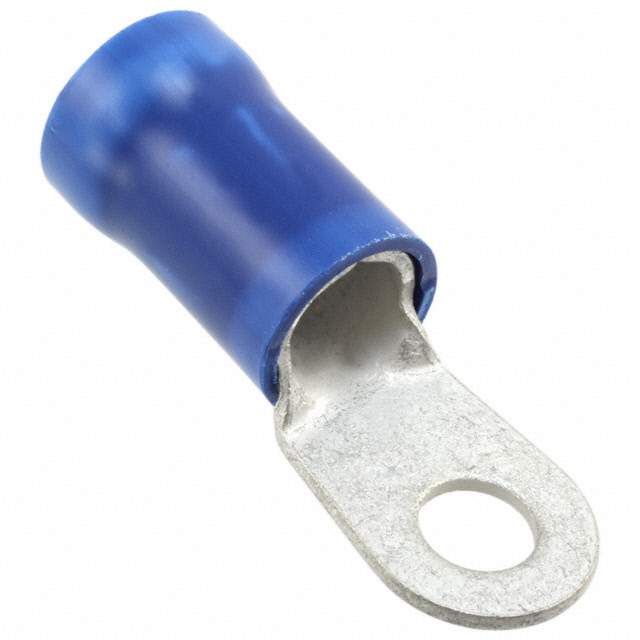

RING TONGUE TERMINAL, M10, 3/8", 0 AWG, 60 MM², PLASTI-GRIP SERIES, BLUE
| Part | Stud/Tab Size | Stud/Tab Size | Mounting Type | Contact Material | Color | Width - Outer Edges | Thickness | Length - Overall | Termination | Contact Finish | Wire Gauge | Features | Terminal Type | Insulation | Insulation Diameter | Material - Insulation | Stud/Tab Size (Type) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.375 in | 3 Stud 8 Stud | Free Hanging (In-Line) | Copper | Blue | 0.807 in | 0.07 in | 2.447 in | Crimp | Tin | 1/0 AWG | Serrated Termination | Circular | Insulated | 0.665 in | Poly-Vinyl Chloride PVC | |
 TE Connectivity AMP Connectors | 0.3125 in | 16 Stud 5 Stud | Free Hanging (In-Line) | Copper | Blue | 0.807 in | 0.07 in | 2.447 in | Crimp | Tin | 1/0 AWG | Serrated Termination | Circular | Insulated | 0.684 in | Poly-Vinyl Chloride PVC | Stud |
 TE Connectivity AMP Connectors | 0.375 in | 3 Stud 8 Stud | Free Hanging (In-Line) | Copper | Blue | 0.807 in | 0.07 in | 2.447 in | Crimp | Tin | 1/0 AWG | Serrated Termination | Circular | Insulated | 0.684 in | Poly-Vinyl Chloride PVC |
