5532434 Series

Catalog

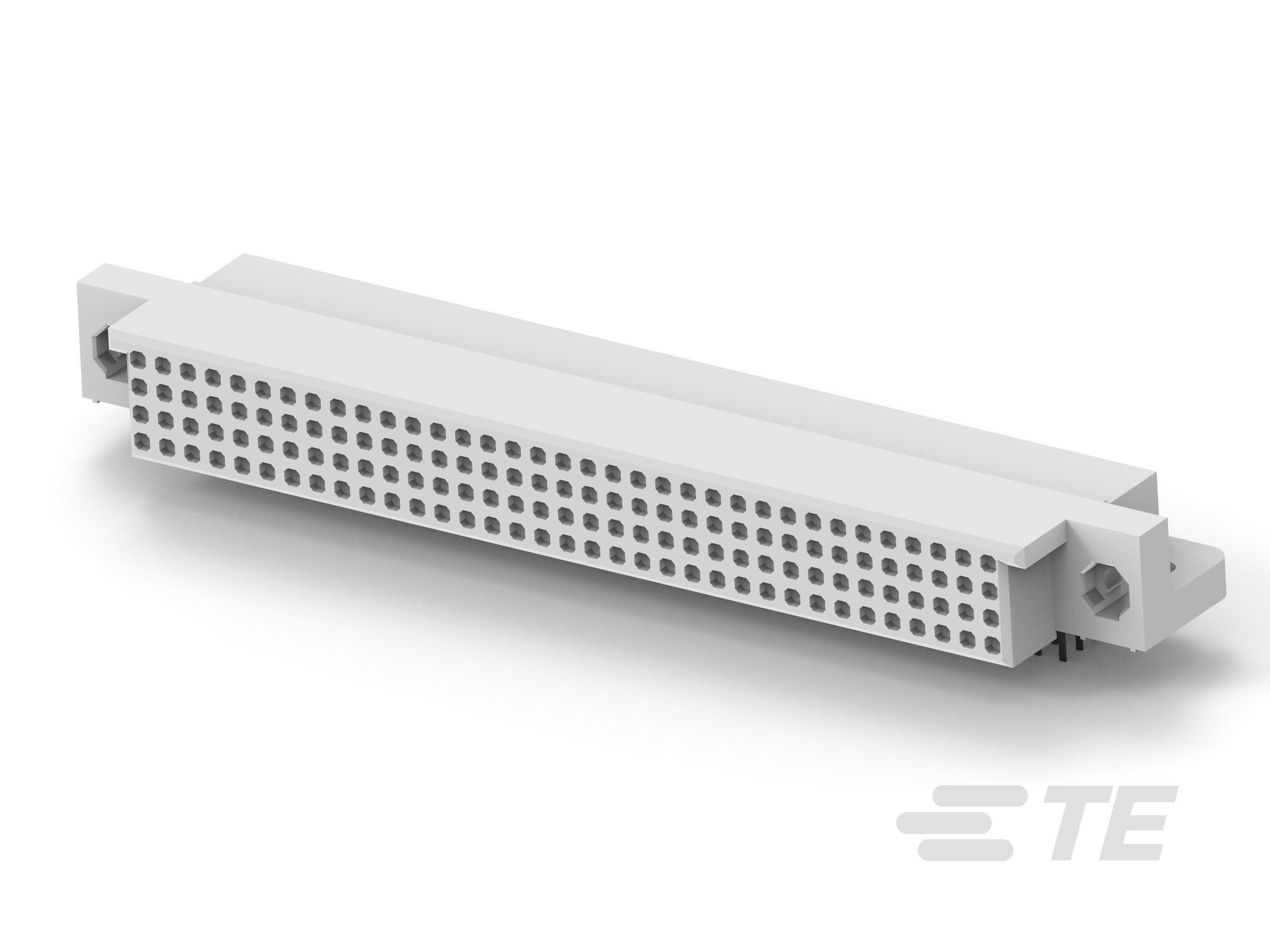

ASSY,RECPT,R.ANGLE,HDI,LEAD-FREE,4ROW,W/ ROHS COMPLIANT: YES

Part	Material Flammability Rating	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Pitch	Connector Type	Termination	Number of Rows	Contact Finish Thickness	Contact Finish	Number of Positions	Features	Connector Style	Color	Number of Positions Loaded
TE Connectivity AMP Connectors 5532434-7	UL94 V-0	125 °C	-65 °C	Right Angle Through Hole	0.1 in	Female Sockets Receptacle	Solder	4	30 µin	Gold	200	Mating Guide	High Density (HDC HDI HPC)	Natural	All
TE Connectivity AMP Connectors 5532434-6	UL94 V-0	125 °C	-65 °C	Right Angle Through Hole	0.1 in	Female Sockets Receptacle	Solder	4	30 µin	Gold	180	Mating Guide	High Density (HDC HDI HPC)	Natural	All
TE Connectivity AMP Connectors 1-5532434-2	UL94 V-0	125 °C	-65 °C	Right Angle Through Hole	0.1 in	Female Sockets Receptacle	Solder	4	30 µin	Gold	300	Mating Guide	High Density (HDC HDI HPC)	Natural	All
TE Connectivity AMP Connectors 5532434-4	UL94 V-0	125 °C	-65 °C	Right Angle Through Hole	0.1 in	Female Sockets Receptacle	Solder	4	30 µin	Gold	140	Mating Guide	High Density (HDC HDI HPC)	Natural	All
TE Connectivity AMP Connectors 5532434-9	UL94 V-0	125 °C	-65 °C	Right Angle Through Hole	0.1 in	Female Sockets Receptacle	Solder	4	30 µin	Gold	240	Mating Guide	High Density (HDC HDI HPC)	Natural	All
TE Connectivity AMP Connectors 5532434-5	UL94 V-0	125 °C	-65 °C	Right Angle Through Hole	0.1 in	Female Sockets Receptacle	Solder	4	30 µin	Gold	160	Mating Guide	High Density (HDC HDI HPC)	Natural	All
