ATSAMB11 Series
Manufacturer: Microchip Technology
Beta
⌘K
IC RF TXRX+MCU BLUETOOTH 39SMD
| Part | Protocol | Package / Case | Memory Type | Memory Size (SRAM) | Memory Size (ROM) | Memory Size (Flash) | Power - Output | Current - Transmitting | RF Family/Standard | Operating Temperature (Min) | Operating Temperature (Max) | Type | Sensitivity | Frequency | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | GPIO Count | Current - Receiving | Serial Interfaces | Mounting Type | Package Length | Package Name | Package Width | Current - Transmitting (Max) | Current - Transmitting (Min) | Antenna Type | Supplied Contents | For Use With/Related Products | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Microchip Technology | Bluetooth v4.1 | 39-SMD Module | Flash RAM ROM | 128 kB | 128 kB | 256 KB | 3 dBm | 3.2 mA | Bluetooth | -40 °C | 85 °C | TxRx + MCU | -95 dBm | 2.4 GHz | 1.8 V | 4.3 V | 23 | 5 mA | I2C SPI UART | |||||||||||
 Microchip Technology | Bluetooth v4.1 | 48-VFQFN Exposed Pad | Flash RAM ROM | 128 kB | 128 kB | 256 KB | 3.5 dBm | 3 mA | Bluetooth | -40 °C | 85 °C | TxRx + MCU | -96 dBm | 2.4 GHz | 2.3 V | 4.3 V | 30 | 4.2 mA | I2C SPI UART | Surface Mount | 6 mm | 48-QFN | 6 mm | |||||||
 Microchip Technology | Bluetooth v4.1 | 48-VFQFN Exposed Pad | Flash RAM ROM | 128 kB | 128 kB | 256 KB | 3.5 dBm | Bluetooth | -40 °C | 85 °C | TxRx + MCU | -96 dBm | 2.4 GHz | 2.3 V | 4.3 V | 30 | 4.2 mA | I2C SPI UART | Surface Mount | 6 mm | 48-QFN | 6 mm | 4 mA | 3 mA | ||||||

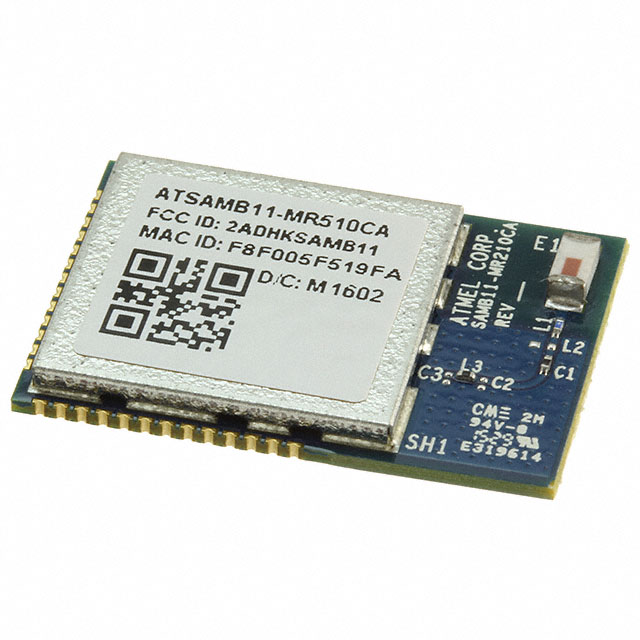

 Microchip Technology | Bluetooth v4.1 | Module | Flash RAM ROM | 128 kB | 128 kB | 256 KB | 4 dBm | 3 mA | Bluetooth | -96 dBm | 2.4 GHz | 2.3 V | 3.6 V | 4 mA | I2C SPI UART | Surface Mount | Chip Integrated | |||||||||||||

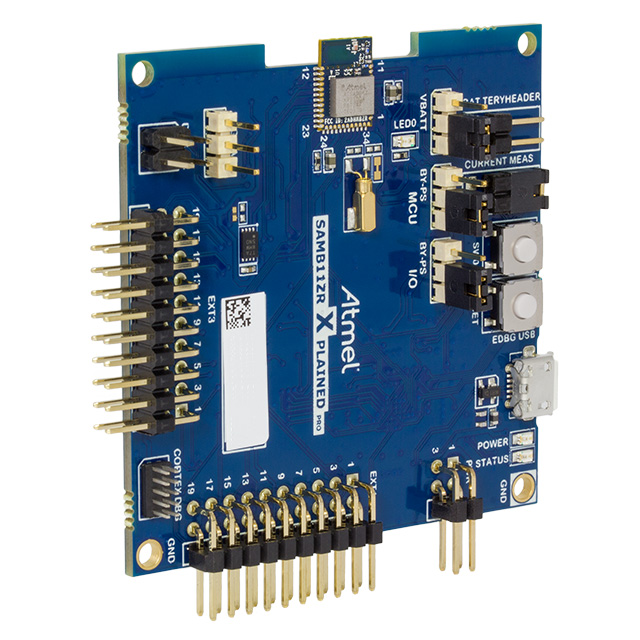

 Microchip Technology | Bluetooth® Smart 4.x Low Energy (BLE) Transceiver | 2.4 GHz | Board(s) | SAM B11 | Board | SAM B11 | ||||||||||||||||||||||||

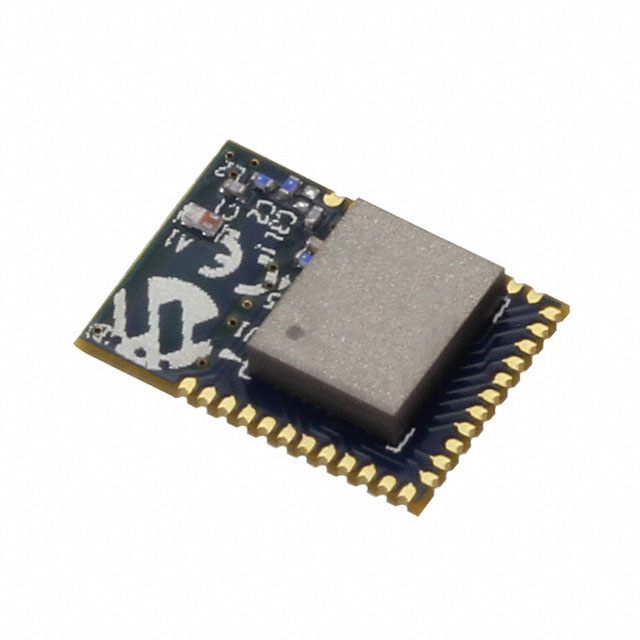

 Microchip Technology | Bluetooth® Smart 4.x Low Energy (BLE) Transceiver | 2.4 GHz | Board(s) | ATSAMB11-ZR210CA | Board | ATSAMB11-ZR210CA | ||||||||||||||||||||||||
 Microchip Technology | Bluetooth v4.1 | Module | 4 dBm | 3 mA | Bluetooth | -96 dBm | 2.4 GHz | 2.3 V | 3.6 V | 4 mA | I2C SPI UART | Surface Mount | Chip Integrated | |||||||||||||||||
 Microchip Technology | Bluetooth v4.1 | Module | Flash RAM ROM | 128 kB | 128 kB | 256 KB | 4 dBm | 3 mA | Bluetooth | -96 dBm | 2.4 GHz | 2.3 V | 3.6 V | 4 mA | I2C SPI UART | Surface Mount | Chip Integrated |
