750327 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

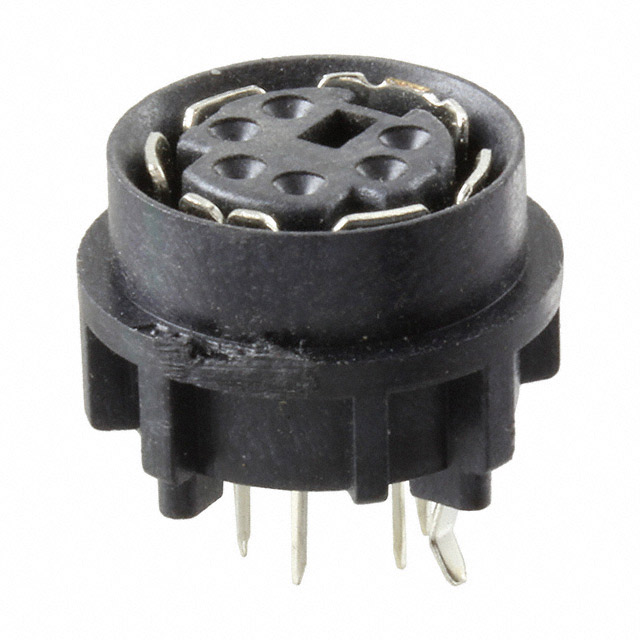

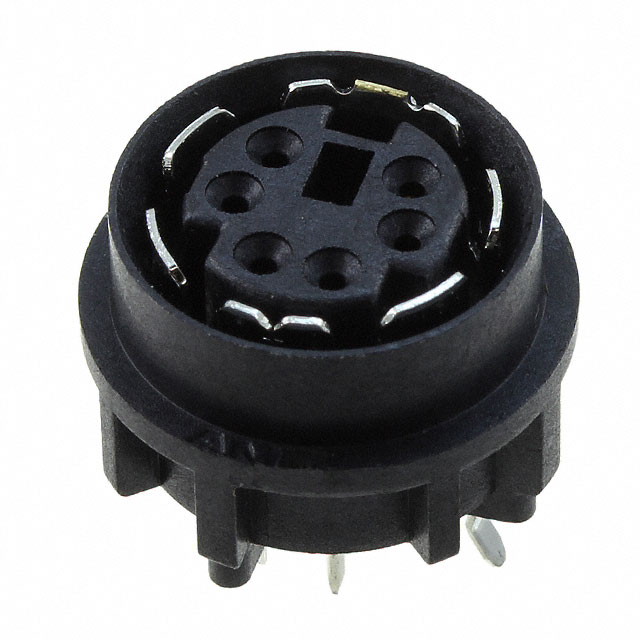

CONN RCPT FMALE MINI DIN 6P SLDR
| Part | Shell Material | Contact Finish - Mating | Termination | Orientation | Contact Material | Mounting Type | Applications | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Material Flammability Rating | Mounting Feature | Shell Size - Insert | Voltage Rating | Primary Material | Fastening Type | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Brass | Gold | Solder | Keyed | Copper Alloy | Panel Mount Through Hole | Audio Video | 6 | 30 Áin | 0.76 Ám | UL94 V-0 | Flange | Mini DIN | 30 VDC | Metal | Push-Pull | Receptacle Female Sockets | 105 ░C | -55 °C |
 TE Connectivity Raychem Cable Protection | Brass | Gold | Solder | Keyed | Copper Alloy | Panel Mount Through Hole | Audio Video | 6 | 15 µin | 0.38 µm | UL94 V-0 | Flange | Mini DIN | 30 VDC | Metal | Push-Pull | Receptacle Female Sockets | 105 ░C | -55 °C |
