DW-40-14 Series

Catalog

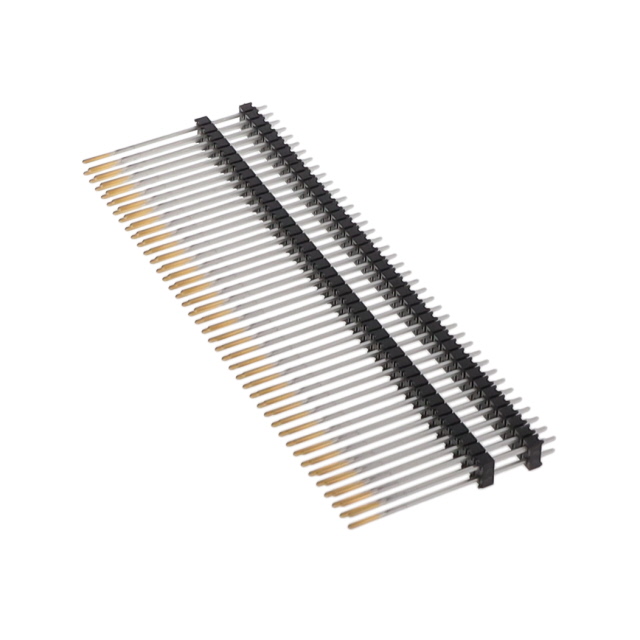

CONN HDR 40POS 0.1 STACK T/H TIN

Part	Mounting Type	Length - Overall Pin [x]	Length - Overall Pin [x]	Length - Stack Height [x]	Length - Stack Height [x]	Number of Positions	Contact Finish - Post (Mating)	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Tail [x]	Length - Tail [x]	Pitch [x]	Pitch [x]	Termination	Number of Rows	Color	Row Spacing [x]	Row Spacing	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Length - Stack Height [z]	Length - Stack Height [z]
Samtec Inc. DW-40-14-T-S-1180	Through Hole	1.43 in	36.322 mm	1.18 in	29.972 mm	40	Tin	0.14 in	3.556 mm	0.11 in	2.794 mm	2.54 mm	0.1 in	Solder	1	Black
Samtec Inc. DW-40-14-T-D-1200	Through Hole	1.43 in	36.322 mm	1.2 in	30.48 mm	80	Tin	0.12 in	3.048 mm	0.11 in	2.794 mm	2.54 mm	0.1 in	Solder	2	Black	0.1 in	2.54 mm
Samtec Inc. DW-40-14-F-S-1085	Through Hole	1.43 in	36.322 mm			40	Gold	0.235 in	5.969 mm	0.11 in	2.794 mm	2.54 mm	0.1 in	Solder	1	Black			3 Áin	0.076 Ám	1.085 in	27.559 mm
Samtec Inc. DW-40-14-F-D-1060	Through Hole	1.43 in	36.322 mm	1.06 in	26.924 mm	80	Gold	0.26 in	6.604 mm	0.11 in	2.794 mm	2.54 mm	0.1 in	Solder	2	Black	0.1 in	2.54 mm	3 Áin	0.076 Ám
Samtec Inc. DW-40-14-F-D-1160	Through Hole	1.43 in	36.322 mm			80	Gold	0.16 in	4.064 mm	0.11 in	2.794 mm	2.54 mm	0.1 in	Solder	2	Black	0.1 in	2.54 mm	3 Áin	0.076 Ám	1.16 in	29.464 mm
Samtec Inc. DW-40-14-G-D-670	Through Hole	1.43 in	36.322 mm	0.67 in	17.018 mm	80	Gold	0.65 in	16.51 mm	0.11 in	2.794 mm	2.54 mm	0.1 in	Solder	2	Black	0.1 in	2.54 mm	10 Áin	0.25 Ám
Samtec Inc. DW-40-14-G-D-1050	Through Hole	1.43 in	36.322 mm	1.05 in	26.67 mm	80	Gold	0.27 in	6.858 mm	0.11 in	2.794 mm	2.54 mm	0.1 in	Solder	2	Black	0.1 in	2.54 mm	10 Áin	0.25 Ám
Samtec Inc. DW-40-14-T-S-985	Through Hole	1.43 in	36.322 mm	0.985 in	25.019 mm	40	Tin	0.335 in	8.509 mm	0.11 in	2.794 mm	2.54 mm	0.1 in	Solder	1	Black
Samtec Inc. DW-40-14-G-D-1100	Through Hole	1.43 in	36.322 mm	1.1 in	27.94 mm	80	Gold	0.22 in	5.588 mm	0.11 in	2.794 mm	2.54 mm	0.1 in	Solder	2	Black	0.1 in	2.54 mm	10 Áin	0.25 Ám
Samtec Inc. DW-40-14-F-S-1000	Through Hole	1.43 in	36.322 mm	1 in	25.4 mm	40	Gold	0.32 in	8.128 mm	0.11 in	2.794 mm	2.54 mm	0.1 in	Solder	1	Black			3 Áin	0.076 Ám
