32835 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

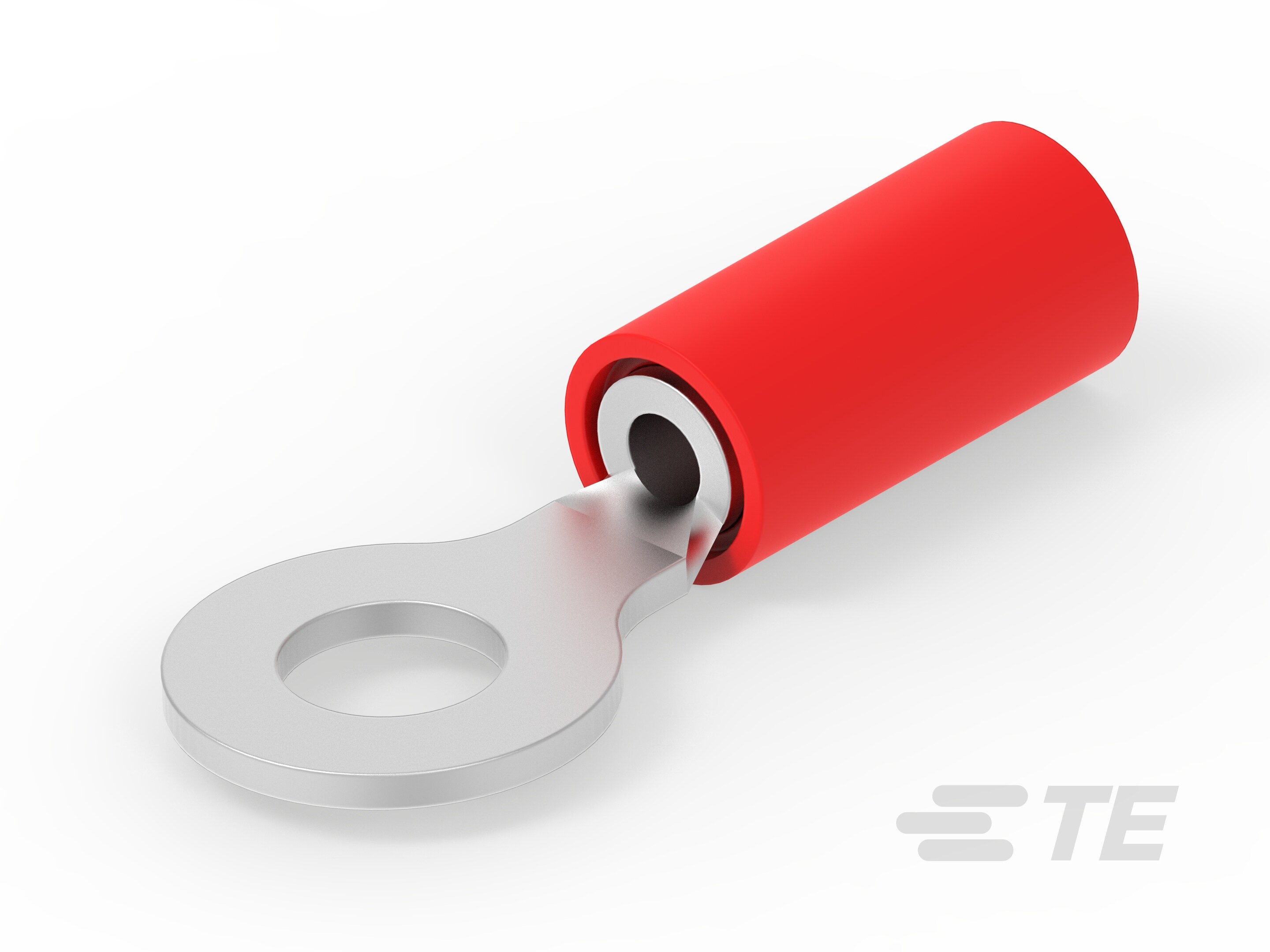

TERMINAL,PIDG R 22-16 8 ROHS COMPLIANT: YES
| Part | Color | Features | Length - Overall | Contact Finish | Mounting Type | Stud/Tab Size | Width - Outer Edges | Insulation | Termination | Contact Material | Terminal Type | Wire Gauge (AWG) (Min) | Wire Gauge (AWG) (Max) | Thickness | Insulation Diameter (Min) | Insulation Diameter (Max) | Material - Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Red | Serrated Termination | 0.876 in | Tin | Free Hanging (In-Line) | 8 Stud | 0.344 in | Insulated | Crimp | Copper | Circular | 16 AWG | 22 AWG | 0.031 in | 0.105 in | 0.14 in | Nylon PA Polyamide |
